Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM (diagram 0074)

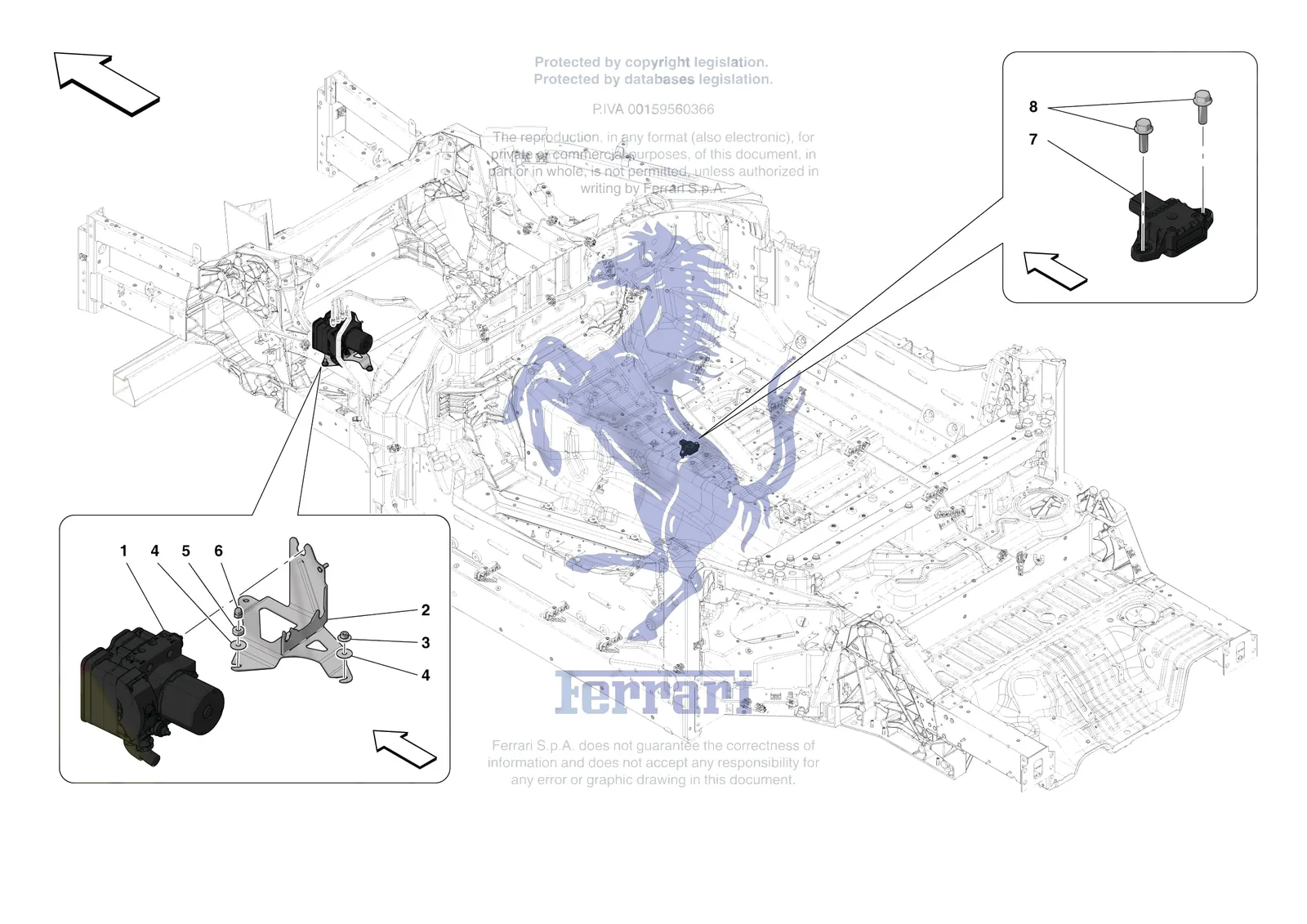

Exploded view of the [mechanical system] - d.24 - abs asr system on the Ferrari Monza SP1, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0074.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 844314 | Ferrari Hydraulic Unit - 844314 | $5,123.98 | Special order, ships in 7-14 days |
| 2 | 333613 | Ferrari ECU Mounting Bracket - 333613 | $147.51 | Special order, ships in 7-14 days |
| 3 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 4 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 5 | 13604015 | Ferrari Shim - 13604015 | $1.67 | Special order, ships in 7-14 days |
| 6 | 14054511 | Ferrari Nyloc Nut M6 x 12 - 14054511 | Superseded | Order 14054513 instead |
| 7 | 307688 | Ferrari Yaw Sensor - 307688 | $437.10 | Special order, ships in 7-14 days |
| 8 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
