Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS (diagram 0081)
Exploded view of the [mechanical system] - d.27.03 - rear suspension - calipers and discs on the Ferrari Monza SP1, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

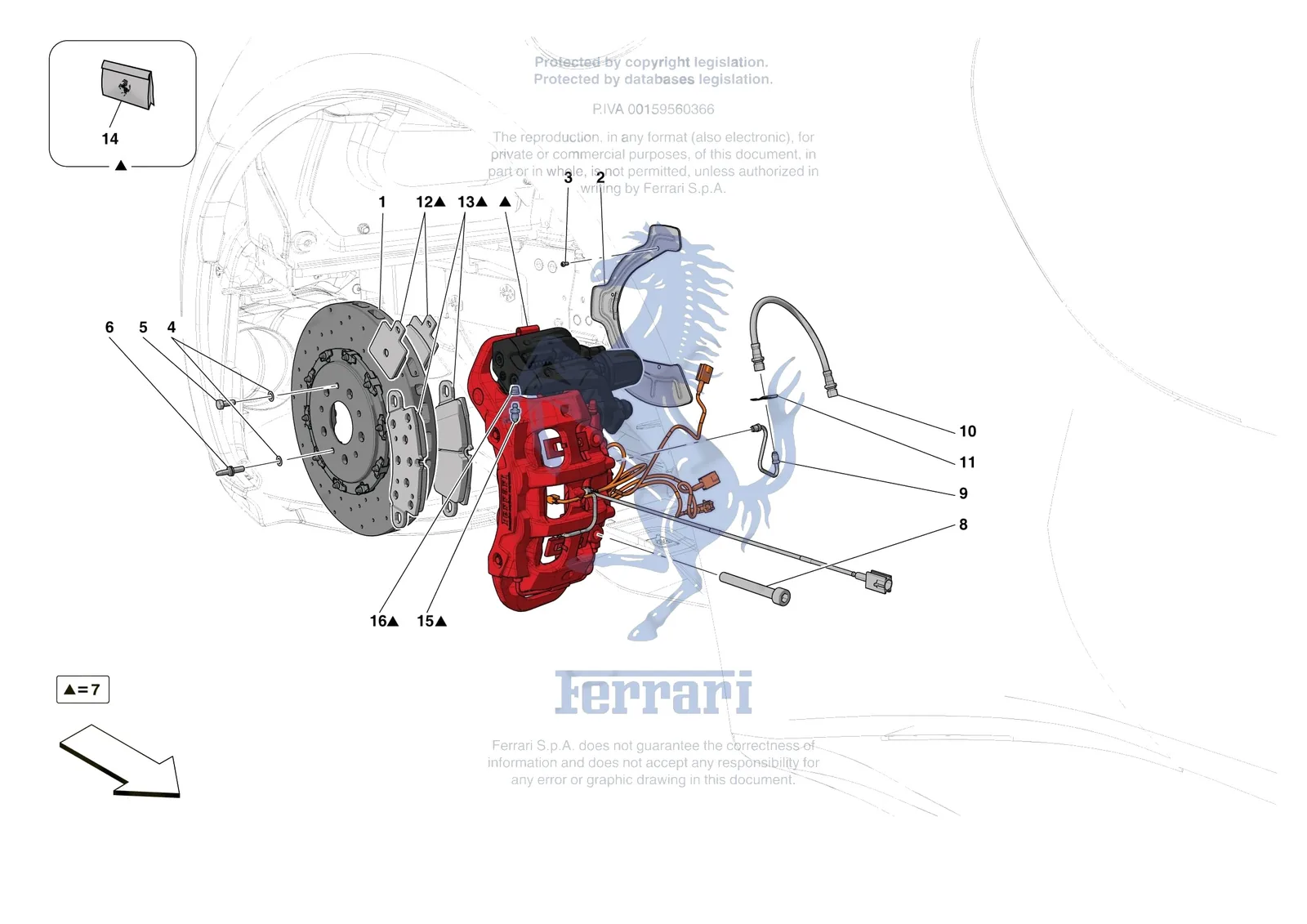

![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0081.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 116373 | Ferrari Brake Hose - 977802 | Superseded | Order 977802 instead | |
| 240968 | Ferrari LH Disc Shield - 240968 | Superseded | Order 257423 instead | |
| 240969 | Ferrari RH Disc Shield - 240969 | Superseded | Order 257424 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 315458 | Ferrari Brake Disc - 315458 | $7,227.59 | Special order, ships in 7-14 days |
| 2 | 257423 | Ferrari LH Rear Disc Shield - 257423 | $95.87 | Special order, ships in 7-14 days |
| 2 | 257424 | Ferrari RH Rear Disc Shield - 257424 | $95.87 | Special order, ships in 7-14 days |
| 3 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 4 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 5 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 6 | 104370 | Ferrari Wheel Alignment Stud - 104370 | $16.39 | In stock |
| 7 | 335699 | Ferrari Rear LH Calliper With Pads - 335699 | $7,886.92 | Special order, ships in 7-14 days |
| 7 | 335704 | Ferrari Rear LH Calliper With Pads - 335704 | $8,040.95 | Special order, ships in 7-14 days |
| 7 | 335705 | Ferrari Rear LH Calliper With Pads - 335705 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335706 | Ferrari Rear LH Calliper With Pads - 335706 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335707 | Ferrari Rear LH Calliper With Pads - 335707 | $8,921.44 | Special order, ships in 7-14 days |
| 7 | 335708 | Ferrari Rear LH Calliper With Pads - 335708 | $8,921.44 | Special order, ships in 7-14 days |
| 7 | 335709 | Ferrari Rear LH Calliper With Pads - 335709 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335710 | Ferrari Rear LH Calliper With Pads - 335710 | $8,176.24 | Special order, ships in 7-14 days |
| 7 | 335711 | Ferrari Rear LH Calliper With Pads - 335711 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335701 | Ferrari Rear RH Calliper With Pads - 335701 | $7,886.92 | Special order, ships in 7-14 days |
| 7 | 335712 | Ferrari Rear RH Calliper With Pads - 335712 | $8,040.95 | Special order, ships in 7-14 days |
| 7 | 335713 | Ferrari Rear RH Calliper With Pads - 335713 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335714 | Ferrari Rear RH Calliper With Pads - 335714 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335715 | Ferrari Rear RH Calliper With Pads - 335715 | $8,921.44 | Special order, ships in 7-14 days |
| 7 | 335716 | Ferrari Rear RH Calliper With Pads - 335716 | $8,921.44 | Special order, ships in 7-14 days |
| 7 | 335717 | Ferrari Rear RH Calliper With Pads - 335717 | $8,357.34 | Special order, ships in 7-14 days |
| 7 | 335718 | Ferrari Rear RH Calliper With Pads - 335718 | $8,176.24 | Special order, ships in 7-14 days |
| 7 | 335719 | Ferrari Rear RH Calliper With Pads - 335719 | $8,357.34 | Special order, ships in 7-14 days |
| 8 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 9 | 299560 | Ferrari LH Brake Pipe - 299560 | $49.14 | Special order, ships in 7-14 days |
| 9 | 299562 | Ferrari RH Brake Pipe - 299562 | $58.98 | Special order, ships in 7-14 days |
| 10 | 977802 | Ferrari Flexible Brake Hose L 330mm - 977802 | $81.11 | Available, ships in 3-6 days |
| 10 | 271711 | Ferrari Front Flexible Tube 330mm - 271711 | Superseded | Order 977802 instead |
| 11 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 12 | 70003759 | Ferrari 488/F8/F12 Rear Brake Pad Set - 70003759 | $1,757.80 | In stock |
| 13 | 70003667 | Ferrari Set Of EPB Pads - 70003667 | $1,968.72 | Available, ships in 3-6 days |
| 14 | 70003493 | Ferrari Rear Brake Caliper Seal Kit - 70003493 | $108.90 | In stock |
| 15 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 16 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
