Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN (diagram 0084)

Exploded view of the [mechanical system] - d.30.01 - steering wheel and steering system - steering column on the Ferrari Monza SP1, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

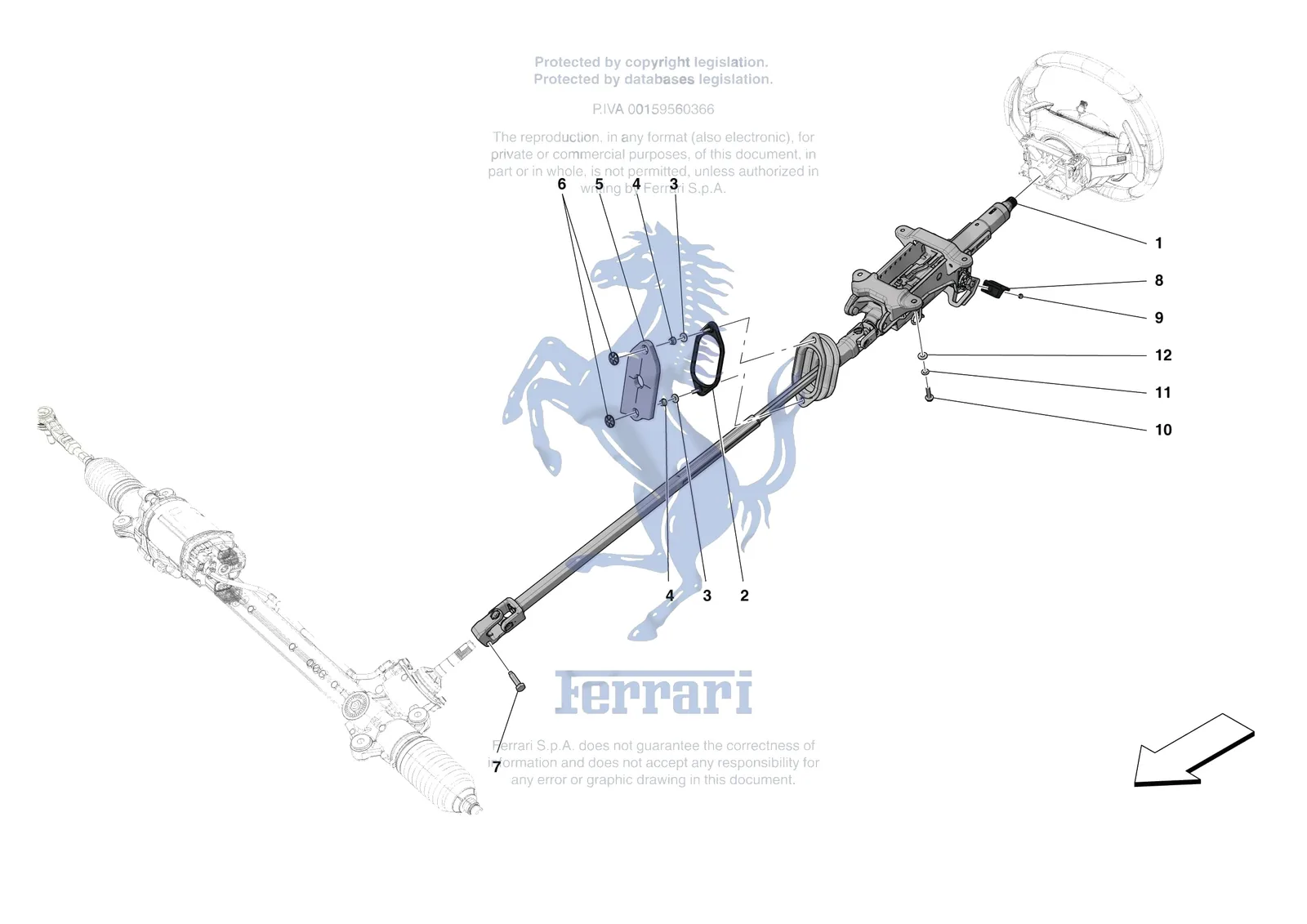

Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
187006Ferrari Screw - 187006$1.36Special order, ships in 7-14 days
1325550Ferrari Compl. Steering Column - 325550$3,432.95Special order, ships in 7-14 days
2237433Ferrari Steering Column Gaiter Fastener Plate - 237433$81.11Special order, ships in 7-14 days
312647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
414058419Ferrari Flanged Nut - 14058419$1.61Special order, ships in 7-14 days
5338451Ferrari Steering Column Gaiter Sound - 338451$20.37Special order, ships in 7-14 days
6250645Ferrari Ring Nut - 250645$1.44Special order, ships in 7-14 days
7245173Ferrari Screw M8 - 245173$1.63Special order, ships in 7-14 days
8313964Ferrari Adjustable Steering Wheel Lock Lever - 313964$17.42Special order, ships in 7-14 days
913273977Ferrari Screw - 13273977$0.52Available, ships in 3-6 days
1016287321Ferrari Screw - 16287321$0.40Available, ships in 3-6 days
1111194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
1212646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days

All Monza SP1 diagrams
