Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG (diagram 0085)
Exploded view of the [mechanical system] - d.30.02 - steering wheel and steering system - steering wheel and airbag on the Ferrari Monza SP1, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

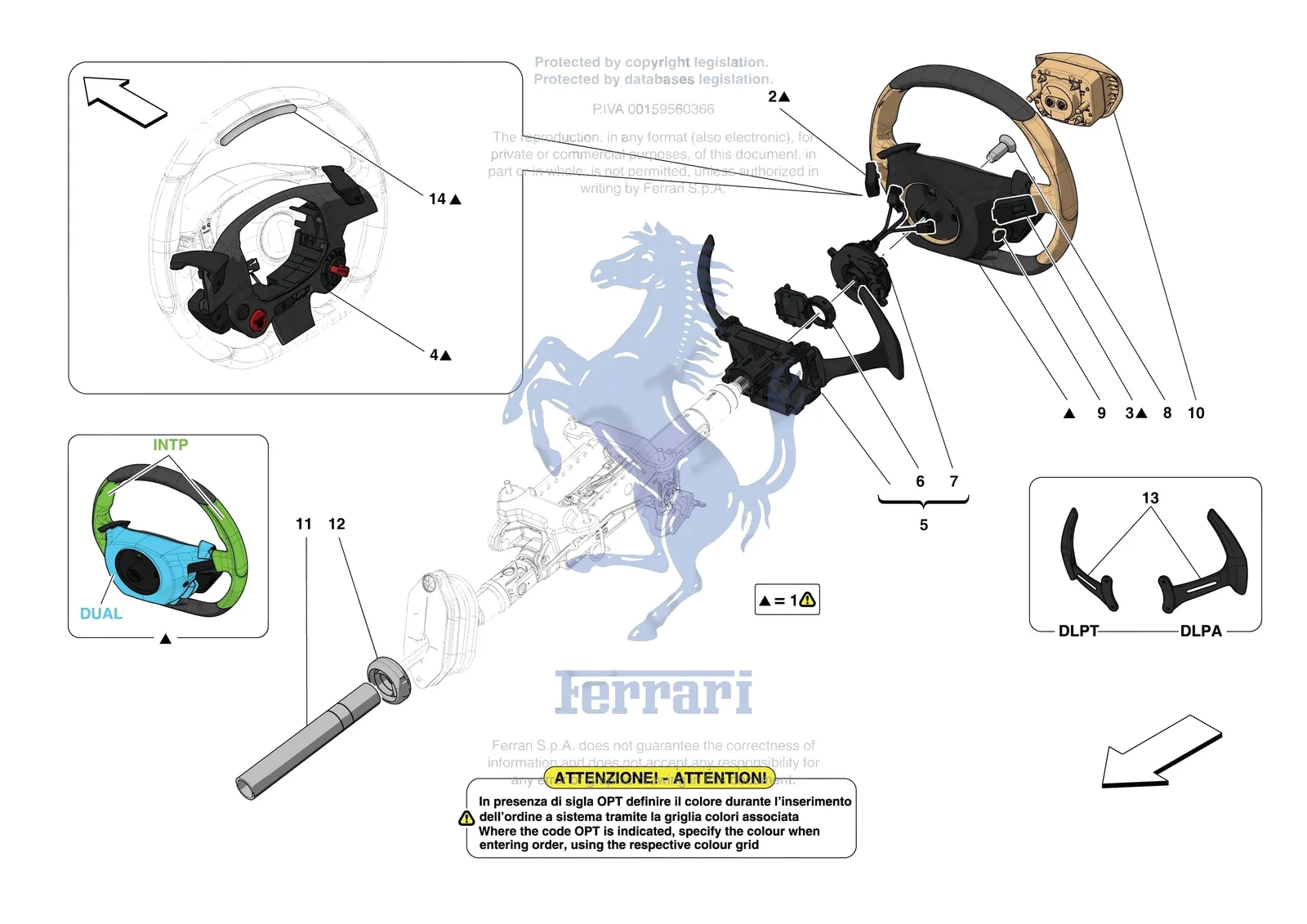

![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0085.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 105303 | Ferrari Clamp - 105303 | Superseded | Order 13000690 instead | |
| 12173990 | Ferrari Clip - 12173990 | Superseded | Order 13000690 instead | |
| 12174090 | Ferrari Hose Clip 32-50 - 12174090 | Superseded | Order 13000690 instead | |
| 12177090 | Ferrari Hose Clip 32-50 - 12177090 | Superseded | Order 13000690 instead | |
| 275398 | Ferrari Screw - 275398 | Superseded | Order 301723 instead | |
| 1 | 848718 | Ferrari Volante Cpl F176 Carb+Led - 848718 | $23,053.69 | Contact us to order |
| 2 | 321865 | Ferrari RH Nit Thumbwheel Control - 321865 | $565.49 | Special order, ships in 7-14 days |
| 3 | 321866 | Ferrari LH Nit Thumbwheel Control - 321866 | $565.49 | Special order, ships in 7-14 days |
| 4 | 849432 | Ferrari Steering Wheel Node F176 - Carbon - 849432 | $9,616.23 | Special order, ships in 7-14 days |
| 5 | 327251 | Ferrari Shift Paddle Assembly - 327251 | $4,552.30 | Special order, ships in 7-14 days |
| 6 | 309296 | Ferrari Steering Angle Sensor - 309296 | $371.53 | Special order, ships in 7-14 days |
| 7 | 327252 | Ferrari Clock Spring Contact - 327252 | $811.38 | Special order, ships in 7-14 days |
| 8 | 301723 | Ferrari Screw - 301723 | $164.72 | Special order, ships in 7-14 days |
| 9 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 11 | 278791 | Ferrari Steering Column Shield - 278791 | $88.49 | Special order, ships in 7-14 days |
| 12 | 13000690 | Ferrari/Maserati Hose Clamp - 13000690 | $1.49 | In stock |
| 13 | 70006497 | Ferrari Off-Catalogue Carbon Shift P - 70006497 | $12,301.86 | Contact us to order |
| 14 | 856950 | Ferrari Vetrino Barra A Led Volante - 856950 | $344.21 | Special order, ships in 7-14 days |
| 15 | 331008 | Ferrari Barra Led - 331008 | $1,155.62 | Special order, ships in 7-14 days |
