Ferrari Monza SP1 — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari Monza SP1, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

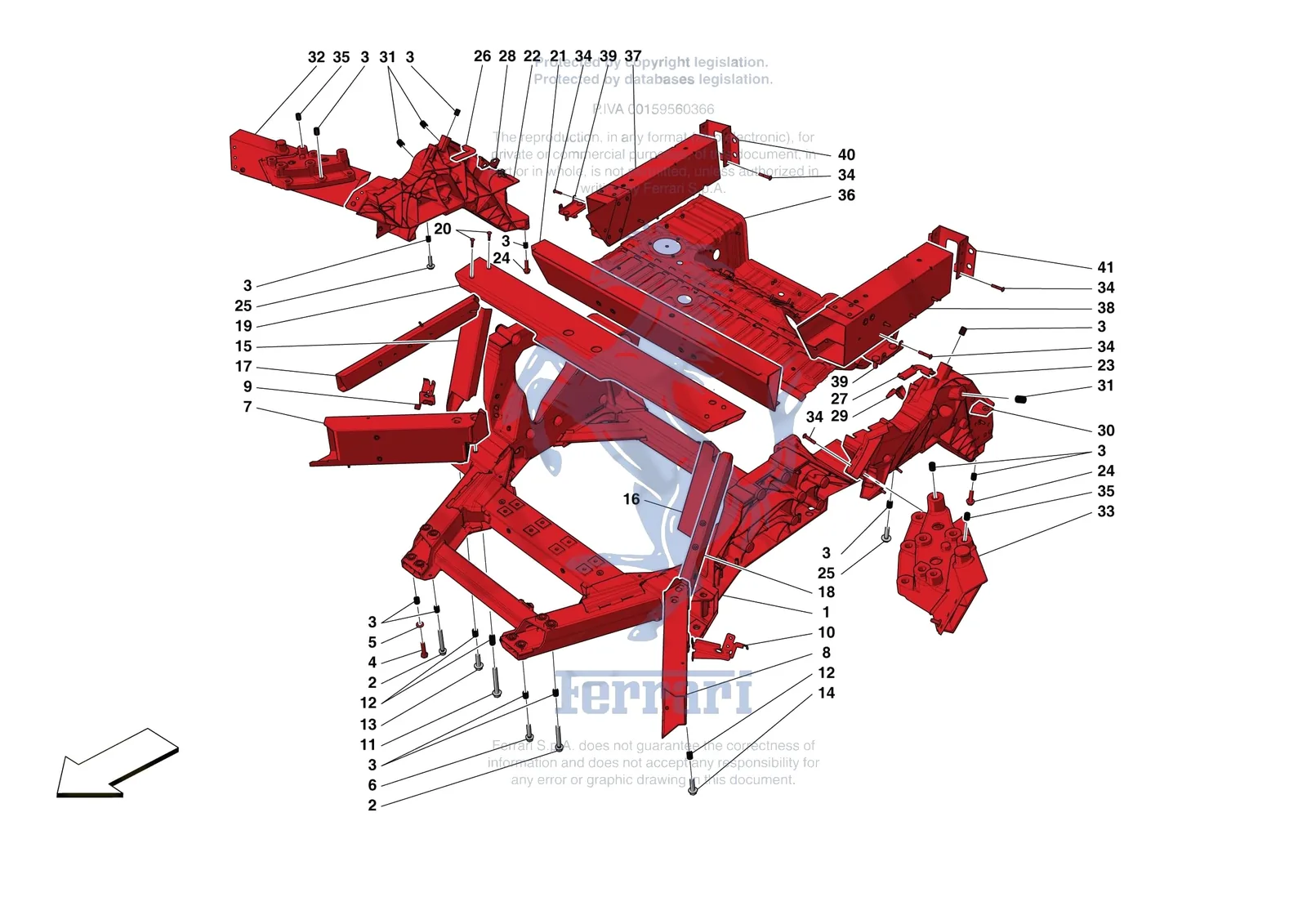

Ferrari Monza SP1 [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
330534Ferrari Rear LH Strut - 330534SupersededOrder 985330534 instead
13550424Ferrari Washer - 13550424$0.31Available, ships in 3-6 days
128944Ferrari Washer D10.2-20 - 128944$3.68Available, ships in 3-6 days
1985319521Ferrari Rear Subframe - 985319521$25,761.13Contact us to order
2268294Ferrari Screw - 268294$10.25Available, ships in 3-6 days
3252200Ferrari Threaded Insert - 252200$18.32Special order, ships in 7-14 days
513550421Ferrari Washer 10.2-20x2 - 13550421$0.38Available, ships in 3-6 days
6268291Ferrari Screw - 268291$8.93Available, ships in 3-6 days
7985826507Ferrari Diagonale Inf.Post Dx Cs Cat - 985826507$5,716.14Special order, ships in 7-14 days
8985826508Ferrari Diagonale Inf.Post Sx Cs Cat - 985826508$5,716.14Special order, ships in 7-14 days
9285866Ferrari RH Rear Brake Hose Mounting - 285866$41.76Special order, ships in 7-14 days
10285864Ferrari LH Rear Brake Hose Mounting - 285864$216.35Special order, ships in 7-14 days
11268371Ferrari Screw - 268371$41.50Available, ships in 3-6 days
12252202Ferrari THREADED INSERT - 252202Price on requestContact us for price and availability
13239868Ferrari Screw - 239868$32.76Special order, ships in 7-14 days
14239867Ferrari Screw 12X1 - 239867$4.35Special order, ships in 7-14 days
15276702Ferrari RH Rear Seat Base Upright - 276702$709.82Special order, ships in 7-14 days
15985276702Ferrari RH Rear Seat Base Upright - 985276702$713.04Special order, ships in 7-14 days
16276701Ferrari LH Rear Seat Base Upright - 276701$709.82Special order, ships in 7-14 days
16985276701Ferrari LH Rear Seat Base Upright - 985276701$713.04Special order, ships in 7-14 days
17985826651Ferrari Compl. RH Centre Rear Diagon - 985826651$909.73Special order, ships in 7-14 days
18985826652Ferrari Compl. LH Centre Rear Diagon - 985826652$885.15Special order, ships in 7-14 days
19985824608Ferrari Compl. Rear Cross-Piece Of F - 985824608$1,032.68Special order, ships in 7-14 days
2014639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
21280180Ferrari Rear Cross-Piece Of Rear Step - 280180$1,101.47Special order, ships in 7-14 days
21985280180Ferrari Rear Cross-Piece Of Rear Step - 985280180$1,106.43Special order, ships in 7-14 days
22985827871Ferrari Fusione Att.Sosp.Post.Sup.Dx - 985827871$32,107.58Contact us to order
23985827874Ferrari Fusione Att.Sosp.Post.Sup.Sx - 985827874$32,107.58Contact us to order
2416288724Ferrari Screw 10x40 - 16288724$28.39Special order, ships in 7-14 days
25277287Ferrari Screw M10 x 1.25 x 40 - 277287$32.76Available, ships in 3-6 days
26831333Ferrari RH Luggage Compartment Lid S - 831333$78.30Special order, ships in 7-14 days
27831331Ferrari LH Luggage Compartment Lid S - 831331$78.30Special order, ships in 7-14 days
28287660Ferrari LH Hook Fastener Bracket - 287660$216.35Special order, ships in 7-14 days
29287670Ferrari RH Hook Fastener Bracket - 287670$216.35Special order, ships in 7-14 days
30284527Ferrari Rear Accelerometer Mounting - 284527$17.67Special order, ships in 7-14 days
31252486Ferrari Threaded Insert - 252486$66.35Special order, ships in 7-14 days
32985834334Ferrari RH Upper Rear Diagonal Brace - 985834334$5,140.30Special order, ships in 7-14 days
33985834335Ferrari LH Upper Rear Diagonal Brace - 985834335$5,140.30Special order, ships in 7-14 days
34204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
35252199Ferrari Threaded Insert - 252199$34.40Special order, ships in 7-14 days
36985849372Ferrari Services Tub - 985849372$3,313.52Special order, ships in 7-14 days
37273692Ferrari RH Rear Strut - 273692$954.60Special order, ships in 7-14 days
37985273692Ferrari RH Rear Strut - 985273692$811.38Special order, ships in 7-14 days
38985330534Ferrari Rear LH Strut - 985330534$1,327.73Special order, ships in 7-14 days
39265936Ferrari Rear Torsion Bar Mounting Bracket - 265936$41.76Special order, ships in 7-14 days
40281819Ferrari RH Rear Strut Flange - 281819$215.38Special order, ships in 7-14 days
40985281819Ferrari RH Rear Strut Flange - 985281819$442.56Special order, ships in 7-14 days
41281818Ferrari LH Rear Strut Flange - 281818SupersededOrder 985281818 instead
41985281818Ferrari LH Rear Strut Flange - 985281818$442.56Special order, ships in 7-14 days

All Monza SP1 diagrams
