Ferrari Monza SP1 — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

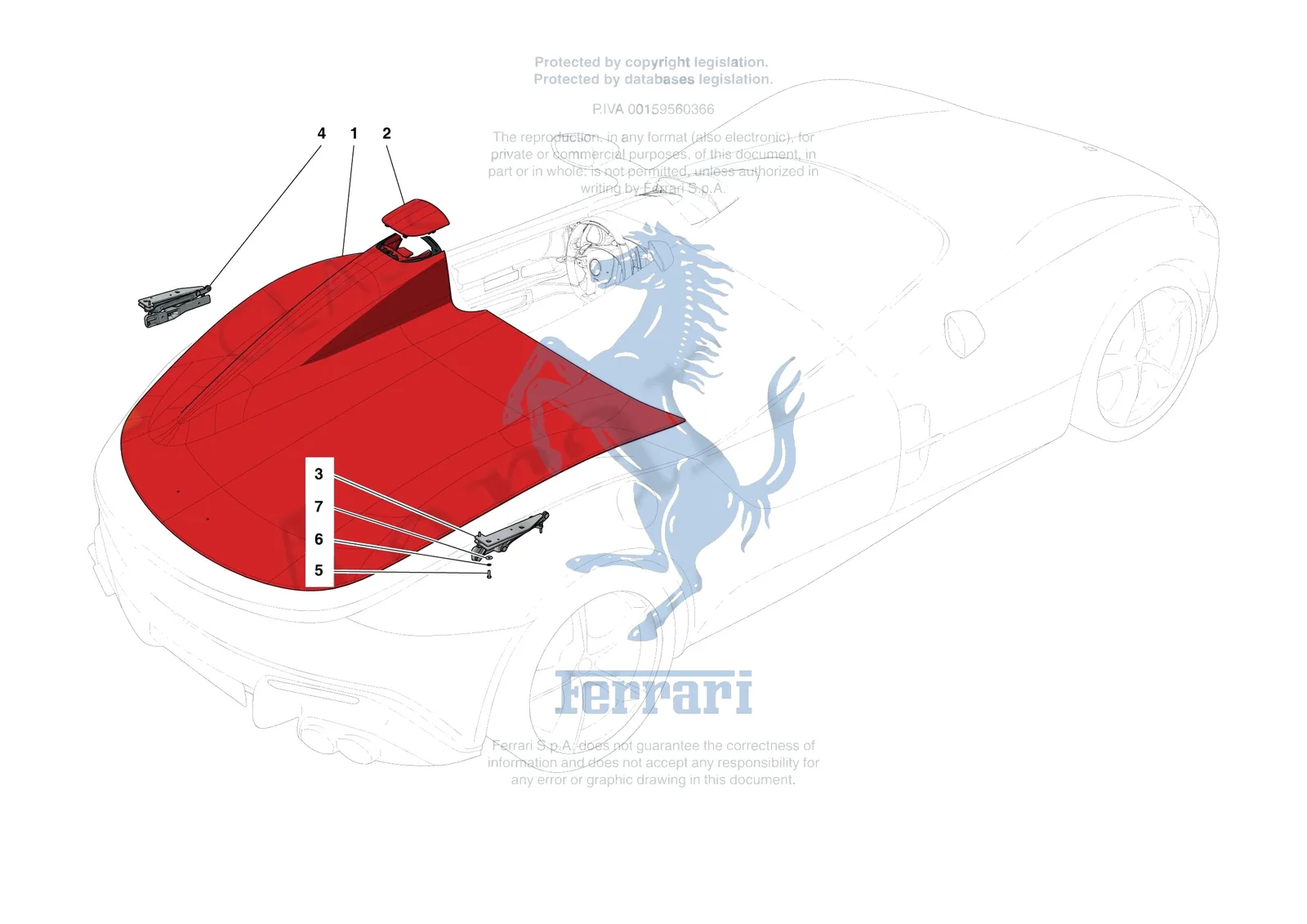

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari Monza SP1, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 924063 | Ferrari Compl. Rear Lid - 924063 | $76,318.72 | Contact us to order |
| 2 | 985917291 | Ferrari Sportello Uscita Rops Sx Cpl - 985917291 | $4,732.34 | Special order, ships in 7-14 days |
| 3 | 897713 | Ferrari Cerniera-Cofano-Posteriore-D - 897713 | $1,615.50 | Special order, ships in 7-14 days |
| 4 | 897757 | Ferrari Cerniera-Cofano-Posteriore-S - 897757 | $1,615.50 | Special order, ships in 7-14 days |
| 5 | 893581 | Ferrari Screw M8 x 25 - 893581 | $1.48 | Special order, ships in 7-14 days |
| 6 | 894634 | Ferrari Washer - 894634 | $0.86 | Special order, ships in 7-14 days |
| 7 | 86150100 | Ferrari Washer - 86150100 | $1.80 | Special order, ships in 7-14 days |
