Ferrari Monza SP1 — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0117)

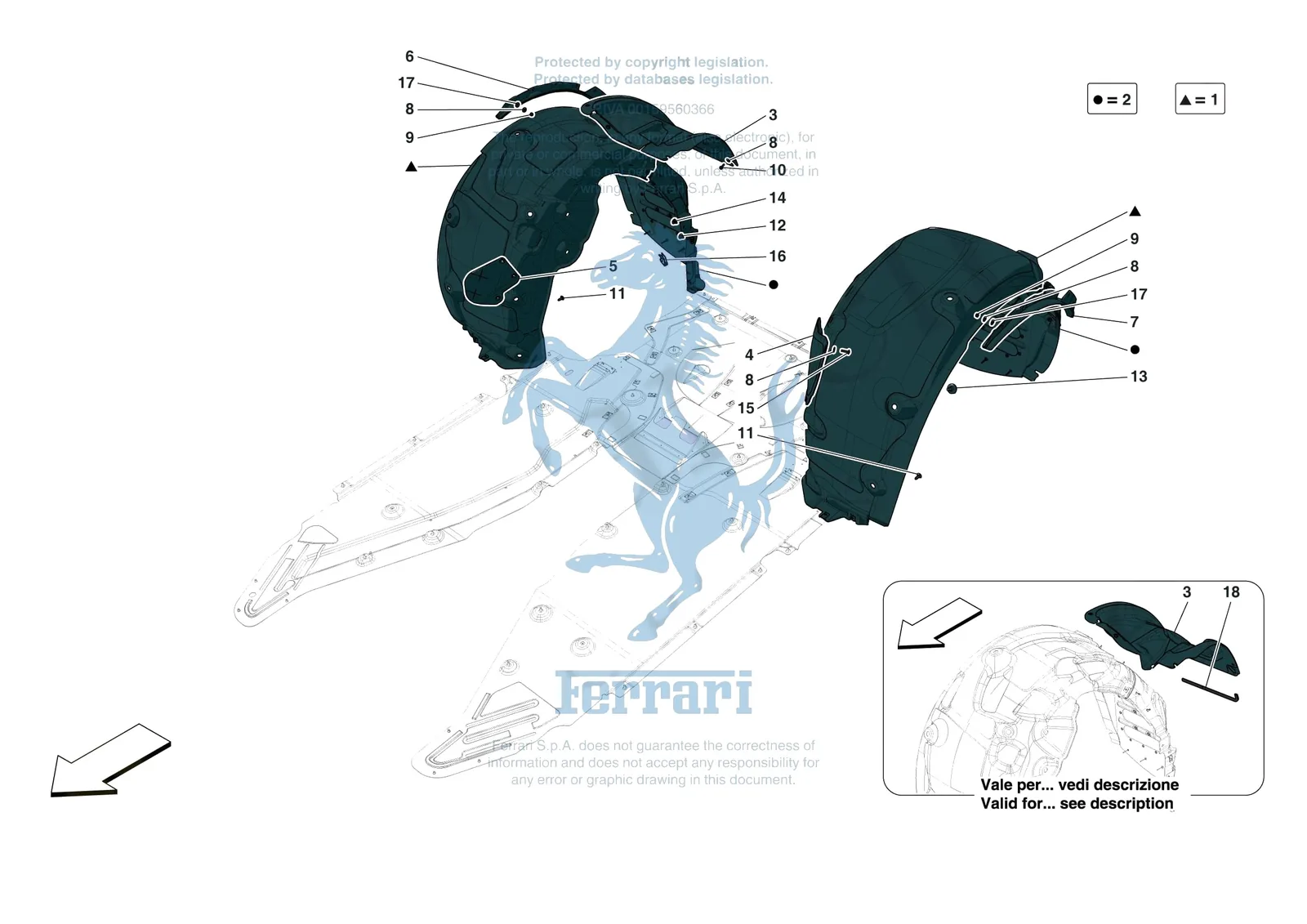

Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari Monza SP1, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0117.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 1002905 | Ferrari Kit Front Part Of Rear Whee - 1002905 | $1,131.39 | Special order, ships in 7-14 days |
| 2 | 1002906 | Ferrari Kit Rear Part Of Rear Wheel - 1002906 | $2,109.47 | Special order, ships in 7-14 days |
| 3 | 788581 | Ferrari New Sportel. Ruote LEVIII Pos. Right Cpl. - 788581 | $2,237.94 | Special order, ships in 7-14 days |
| 3 | 839193 | Ferrari Sportello Chius. V. Ruota P - 839193 | $717.98 | Special order, ships in 7-14 days |
| 4 | 839539 | Ferrari Coperchio Protezione Central - 839539 | $391.61 | Special order, ships in 7-14 days |
| 5 | 85145000 | Ferrari Wheel Bay Cover Hatch - 85145000 | $88.49 | Special order, ships in 7-14 days |
| 6 | 882594 | Ferrari Compl. RH Rear Grab Flick - 882594 | $3,580.72 | Special order, ships in 7-14 days |
| 6 | 882598 | Ferrari Compl. RH Rear Grab Flick - 882598 | $3,580.72 | Special order, ships in 7-14 days |
| 7 | 882593 | Ferrari Compl. LH Rear Grab Flick - 882593 | $3,580.72 | Special order, ships in 7-14 days |
| 7 | 882597 | Ferrari Compl. LH Rear Grab Flick - 882597 | $3,580.72 | Special order, ships in 7-14 days |
| 8 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 9 | 113647 | Ferrari Nyloc Nut - 113647 | $0.52 | Available, ships in 3-6 days |
| 10 | 917338 | Ferrari Screw - 917338 | $1.44 | Special order, ships in 7-14 days |
| 11 | 82113500 | Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500 | $5.86 | Available, ships in 3-6 days |
| 12 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
| 13 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 14 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 15 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 16 | 266000 | Ferrari Clip - 266000 | $1.80 | Special order, ships in 7-14 days |
| 18 | 67681200 | Ferrari GASKET - 67681200 | $5.86 | Special order, ships in 7-14 days |
