Ferrari Monza SP1 — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0119)

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari Monza SP1, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

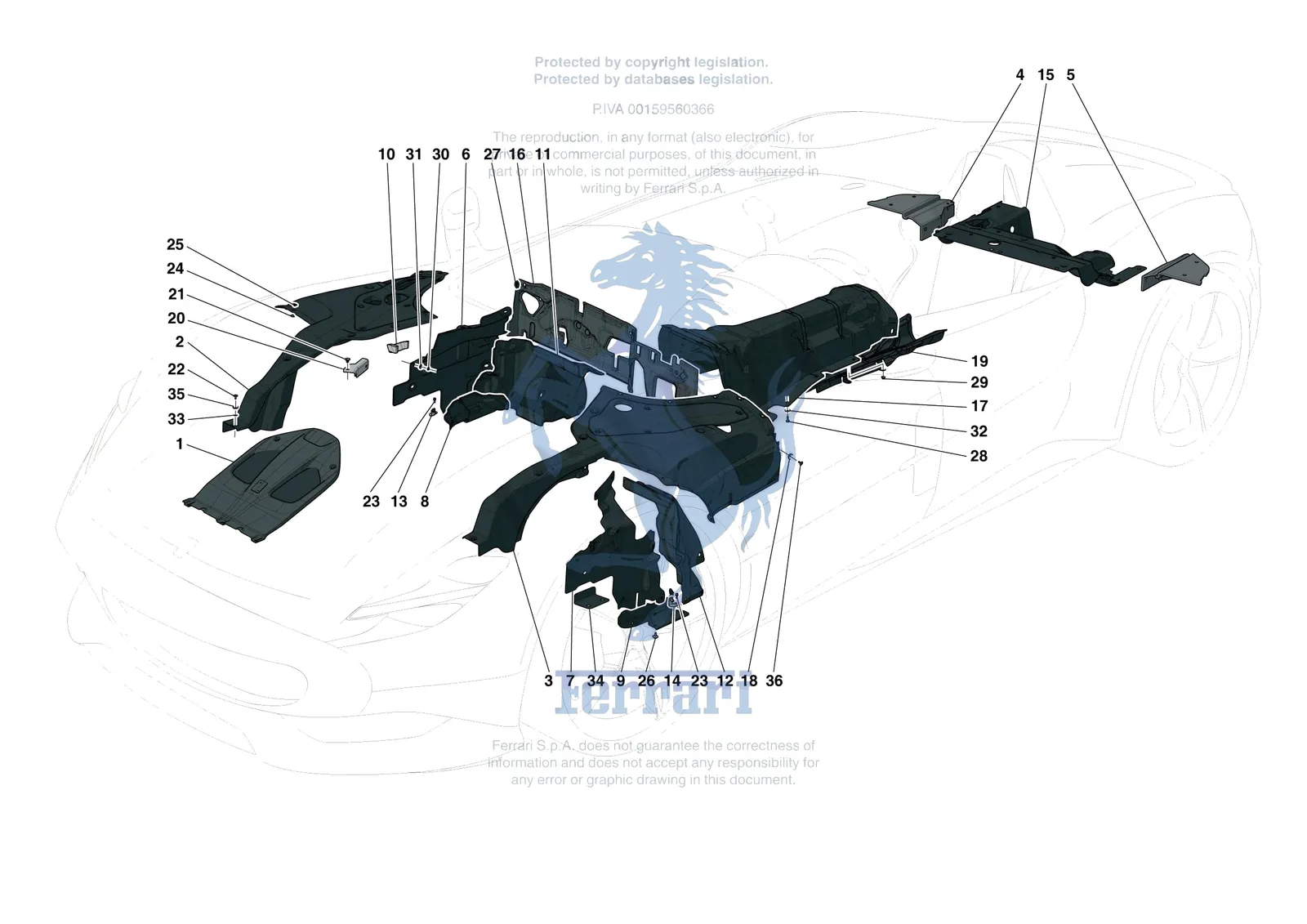

Ferrari Monza SP1 [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
85676400Ferrari Upper Firewall Insulation LHD - 85676400$237.40Special order, ships in 7-14 days
87366500Ferrari Upper Firewall Insulation LHD - 87366500$237.40Special order, ships in 7-14 days
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1687742200Ferrari Upper Firewall Insulation LHD - 87742200$226.19Special order, ships in 7-14 days
18219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
23231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
2914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
3112643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
3312646778Ferrari Washer - 12646778$0.89In stock
