Ferrari Monza SP1 — [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES (diagram 0121)

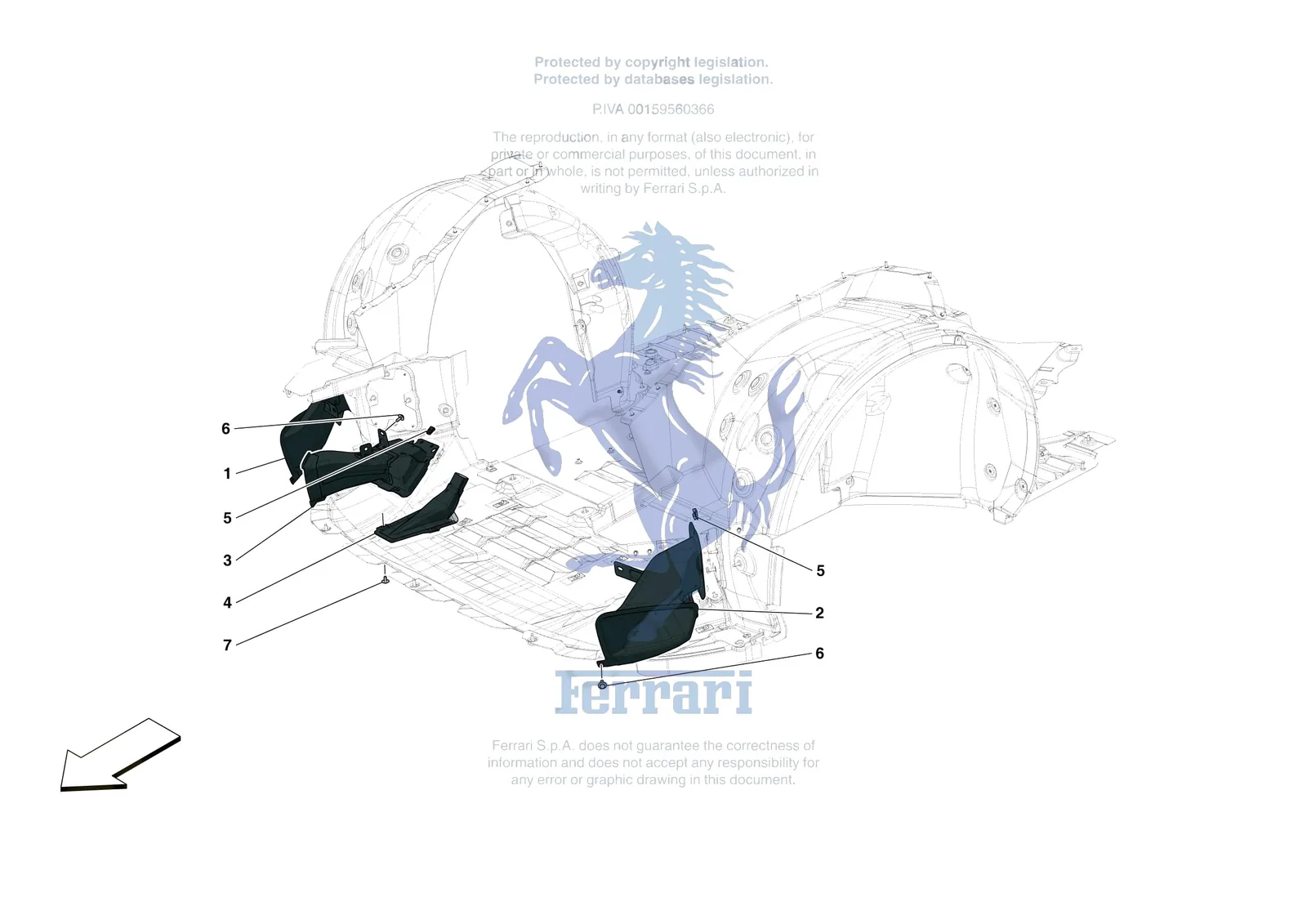

Exploded view of the [vehicle trim] - e.22 - front air intakes on the Ferrari Monza SP1, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0121.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 827674 | Ferrari Convogliatore Aria Freni Dx - 827674 | $1,517.60 | Special order, ships in 7-14 days |
| 2 | 827673 | Ferrari Convogliatore Aria Freni Sx - 827673 | $1,517.60 | Special order, ships in 7-14 days |
| 3 | 827672 | Ferrari Cond.Aria Aerod.Passiva Dx - 827672 | $1,297.30 | Special order, ships in 7-14 days |
| 3 | 827675 | Ferrari Cond.Aria Aerod.Passiva Sx - 827675 | $1,297.30 | Special order, ships in 7-14 days |
| 4 | 88870000 | Ferrari Compl. Eps Cooling Duct - 88870000 | $83.57 | Special order, ships in 7-14 days |
| 5 | 80874300 | Ferrari Clip - 80874300 | $1.97 | Available, ships in 3-6 days |
| 6 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 7 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
