Ferrari Monza SP1 — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari Monza SP1, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

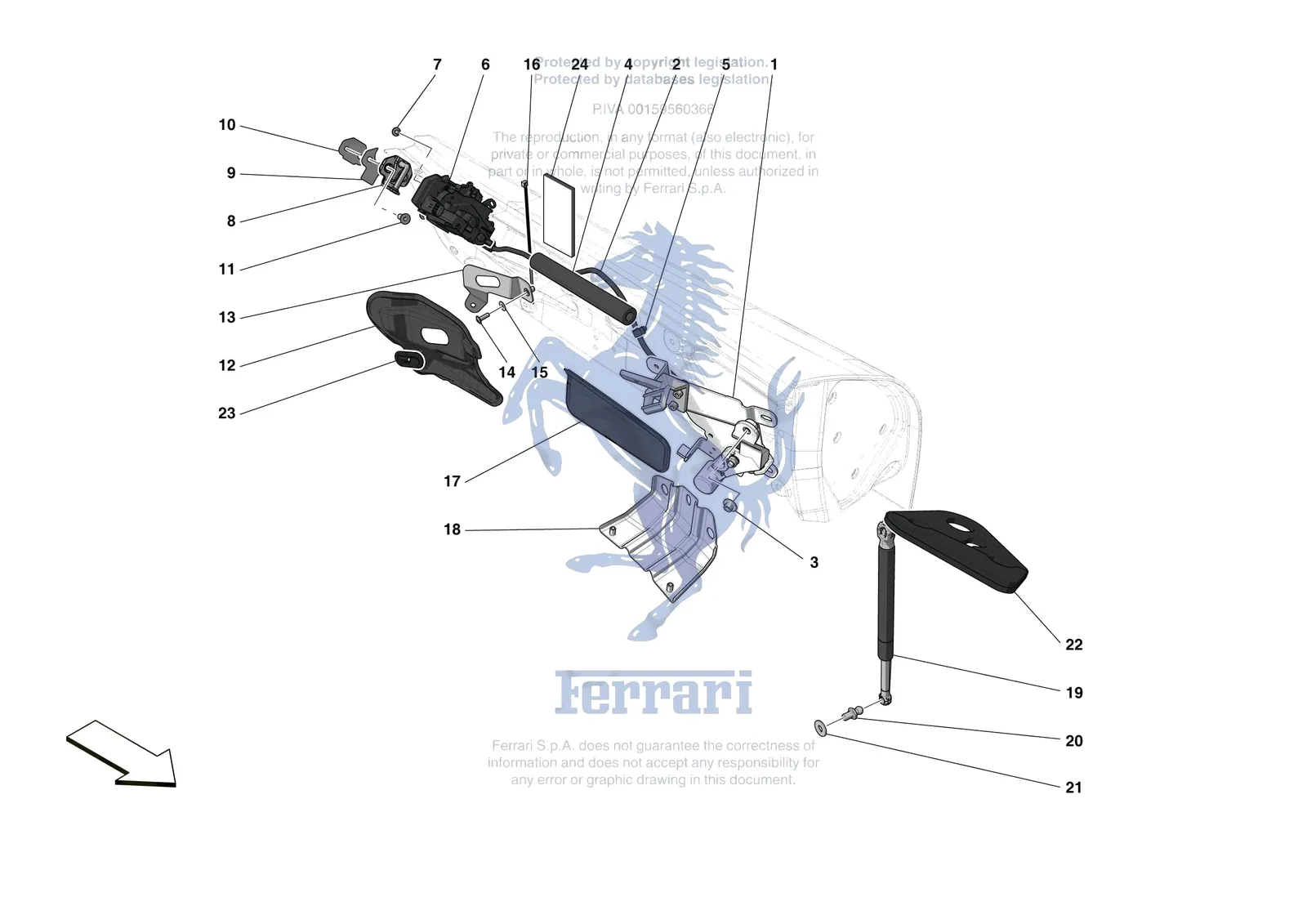

Ferrari Monza SP1 [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
63402800Ferrari Ball Pin - 63402800SupersededOrder 85216400 instead
69205900Ferrari Ball Pin - 69205900SupersededOrder 85216400 instead
82629100Ferrari Cable Grommet - 82629100SupersededOrder 898656 instead
85730900Ferrari LH Door Lock LHD - 85730900SupersededOrder 785970 instead
64577200Ferrari Pin - 64577200SupersededOrder 85216400 instead
85730800Ferrari RH Door Lock LHD - 85730800SupersededOrder 785971 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1831100Ferrari Compl. LH Door Release Mecha - 831100$954.60Special order, ships in 7-14 days
1831024Ferrari Compl. RH Door Release Mecha - 831024$954.60Special order, ships in 7-14 days
286622600Ferrari Inner Door Handle Bowden Cable - 86622600$115.54Special order, ships in 7-14 days
3831019Ferrari Bushing - 831019Price on requestContact us for price and availability
3957819Ferrari Bushing - 957819Price on requestContact us for price and availability
482936500Ferrari Protective Sheath For Internal Handle Bowden Cable - 82936500$4.39Special order, ships in 7-14 days
514569680Ferrari Clip - 14569680$0.13Special order, ships in 7-14 days
6785970Ferrari LH Door Lock LHD - 785970$243.40Special order, ships in 7-14 days
6785971Ferrari RH Door Lock LHD - 785971$243.40Special order, ships in 7-14 days
785478900Ferrari SCREW - 85478900$2.13Available, ships in 3-6 days
885052500Ferrari Door Lock Striker Plate - 85052500$29.48Special order, ships in 7-14 days
983595400Ferrari Door Striker Plate Film - 83595400$7.40Special order, ships in 7-14 days
1085052600Ferrari Door Striker Plate Shim - 85052600$11.56Special order, ships in 7-14 days
1185133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
12860474Ferrari LH Door Waterproof Membrane - 860474$115.02Special order, ships in 7-14 days
12860475Ferrari RH Door Waterproof Membrane - 860475$115.02Special order, ships in 7-14 days
13860470Ferrari Supporto Guar Bowden Man Int - 860470$51.37Special order, ships in 7-14 days
13860477Ferrari Supporto Guar Bowden Man Int - 860477$51.37Special order, ships in 7-14 days
1485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1512638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
16145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
17860486Ferrari Front LH Door Waterproof Mem - 860486$97.88Special order, ships in 7-14 days
17860487Ferrari Front RH Door Waterproof Mem - 860487$97.88Special order, ships in 7-14 days
18848499Ferrari LH Outer Door Handle Bracket - 848499$117.47Special order, ships in 7-14 days
18848475Ferrari RH Outer Door Handle Bracket - 848475$117.47Special order, ships in 7-14 days
19904620Ferrari Gas Strut - 904620SupersededOrder 958285 instead
19958285Ferrari Gas Strut - 958285$84.83Special order, ships in 7-14 days
2065939900Ferrari Pin - 65939900SupersededOrder 85216400 instead
2085216400Ferrari Pin - 85216400$2.98In stock
2112646778Ferrari Washer - 12646778$0.89In stock
22890863Ferrari Guarnizione Cerniera Porta D - 890863$82.65Special order, ships in 7-14 days
22890856Ferrari Guarnizione Cerniera Porta S - 890856$82.65Special order, ships in 7-14 days
23898656Ferrari Cable Grommet - 898656$6.10Special order, ships in 7-14 days
24179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
