Ferrari Monza SP1 — [VEHICLE TRIM] - E.42.01 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42.01 - rear bumper on the Ferrari Monza SP1, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

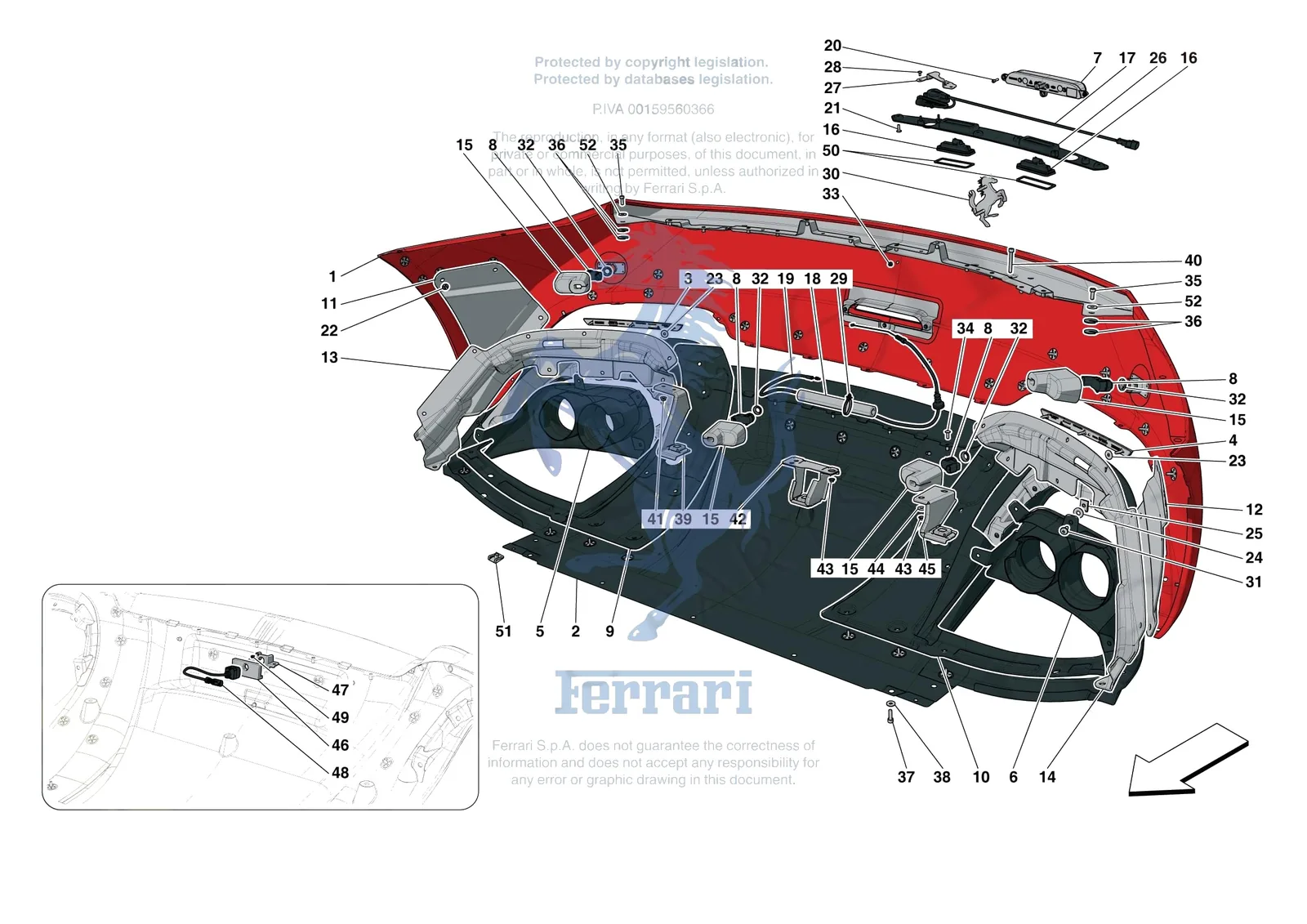

Ferrari Monza SP1 [VEHICLE TRIM] - E.42.01 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
87940800Ferrari Flanged Nut - 87940800SupersededOrder 14039414 instead
253-44-302-02Ferrari Horse Motif - 253-44-302-02SupersededOrder 60032109 instead
83203000Ferrari Horse Motif - 83203000SupersededOrder 60032109 instead
85658300Ferrari Horse Motif - 85658300SupersededOrder 60032109 instead
14039411Ferrari Nut - 14039411SupersededOrder 14039414 instead
85675300Ferrari Screw - 85675300SupersededOrder 14305387 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
1985827578Ferrari Complete Rear Bumper Shell - 985827578$69,606.05Contact us to order
2860752Ferrari Scivolo Aerodin. Opt Tel Cl - 860752$34,040.61Contact us to order
2861111Ferrari Scivolo Aerodinamico Base Cp - 861111$35,766.29Contact us to order
2861267Ferrari Scivolo Aerodinamico Opt Cl - 861267$34,040.61Contact us to order
2827569Ferrari Scivolo Aerodinamico Opt Tel - 827569$35,766.29Contact us to order
388006400Ferrari RH Reflector - 88006400$50.03Special order, ships in 7-14 days
488006300Ferrari LH Reflector - 88006300$50.03Special order, ships in 7-14 days
5827564Ferrari Codini Con Rete Dx Cpl Inox - 827564$1,653.59Special order, ships in 7-14 days
6827567Ferrari Codini Con Rete Sx Cpl Inox - 827567$1,653.59Special order, ships in 7-14 days
7334277Ferrari Rear Fog Light - 334277$415.82Special order, ships in 7-14 days
8295361Ferrari Parking Sensor - 295361$80.91In stock
9837947Ferrari Riparo Calore Interno Dx - 837947$178.65Special order, ships in 7-14 days
10837933Ferrari Riparo Calore Interno Sx - 837933$178.65Special order, ships in 7-14 days
11827573Ferrari Riparo Calore Laterale Dx - 827573$29.34Special order, ships in 7-14 days
12827576Ferrari Riparo Calore Laterale Sx - 827576$29.34Special order, ships in 7-14 days
13827571Ferrari Riparo Calore Catadiottro Dx - 827571$73.41Special order, ships in 7-14 days
14827572Ferrari Riparo Calore Catadiottro Sx - 827572$73.41Special order, ships in 7-14 days
15890903Ferrari Riparo Calore Sens. Park. La - 890903$129.70Special order, ships in 7-14 days
16307799Ferrari Light - 307799$87.40Special order, ships in 7-14 days
17314630Ferrari Magnetic Battery Conditioner Sealed Socket - 314630$688.45Available, ships in 3-6 days
1882936500Ferrari Protective Sheath For Internal Handle Bowden Cable - 82936500$4.39Special order, ships in 7-14 days
19890541Ferrari Cavo Bowden Sportello Baule - 890541$107.68Special order, ships in 7-14 days
2014303227Ferrari Screw - 14303227$5.04Special order, ships in 7-14 days
2188004600Ferrari Screw 5x16 - 88004600$3.26Special order, ships in 7-14 days
2280880700Ferrari Spring Plate - 80880700$0.82Special order, ships in 7-14 days
23263276Ferrari Washer - 263276$0.33Available, ships in 3-6 days
2487547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
2587546600Ferrari Clip - 87546600$1.74Available, ships in 3-6 days
26877471Ferrari License Plate Light Surround - 877471$2,687.86Special order, ships in 7-14 days
26890498Ferrari License Plate Light Surround - 890498$2,687.86Special order, ships in 7-14 days
2787904400Ferrari Battery Conditioner Bracket - 87904400$110.78Special order, ships in 7-14 days
28309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
29145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
3070007103Ferrari CAVALLINO RAMPANTE BADGE - 70007103Price on requestContact us for price and availability
3060032109Ferrari Emblem - 60032109$103.53In stock
3182113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
3281544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
3314039414Ferrari Flanged Nut - 14039414$0.54Available, ships in 3-6 days
3485833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
3488710300Ferrari Screw - 88710300$1.09Special order, ships in 7-14 days
3411566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
3513027087Ferrari Screw - 13027087$1.25Special order, ships in 7-14 days
36298365Ferrari Split Washer - 298365$14.62Special order, ships in 7-14 days
36918910Ferrari Washer - 918910$12.99Special order, ships in 7-14 days
36918917Ferrari Washer - 918917$13.01Special order, ships in 7-14 days
3714305387Ferrari Screw - 14305387$1.04Special order, ships in 7-14 days
3812643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
39890765Ferrari Complete RH Rear Mounting Bracket - 890765$119.91Special order, ships in 7-14 days
40213129Ferrari Screw 6x45 - 213129$1.36Available, ships in 3-6 days
4114059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
42890826Ferrari Complete Centre Mounting Bracket for Rear Bumper - 890826$212.92Special order, ships in 7-14 days
4313046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
4412647604Ferrari Washer - 12647604$0.12Available, ships in 3-6 days
45890850Ferrari LH Lateral Mounting Bracket - 890850$163.97Special order, ships in 7-14 days
46910118Ferrari Rear Camera Heat Shield - 910118$110.13Special order, ships in 7-14 days
47835969Ferrari Rear Camera Bracket - 835969$19.07Special order, ships in 7-14 days
48839870Ferrari Rdcam Telec. Digit. Posterio - 839870$2,471.06Special order, ships in 7-14 days
4914417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
50939522Ferrari Light Unit Seal - 939522$8.24Special order, ships in 7-14 days
5184583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
5212640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days

All Monza SP1 diagrams
