Ferrari Monza SP1 — [VEHICLE TRIM] - E.47.03 - DASHBOARD - TRIM -Not for RHD- (diagram 0151)

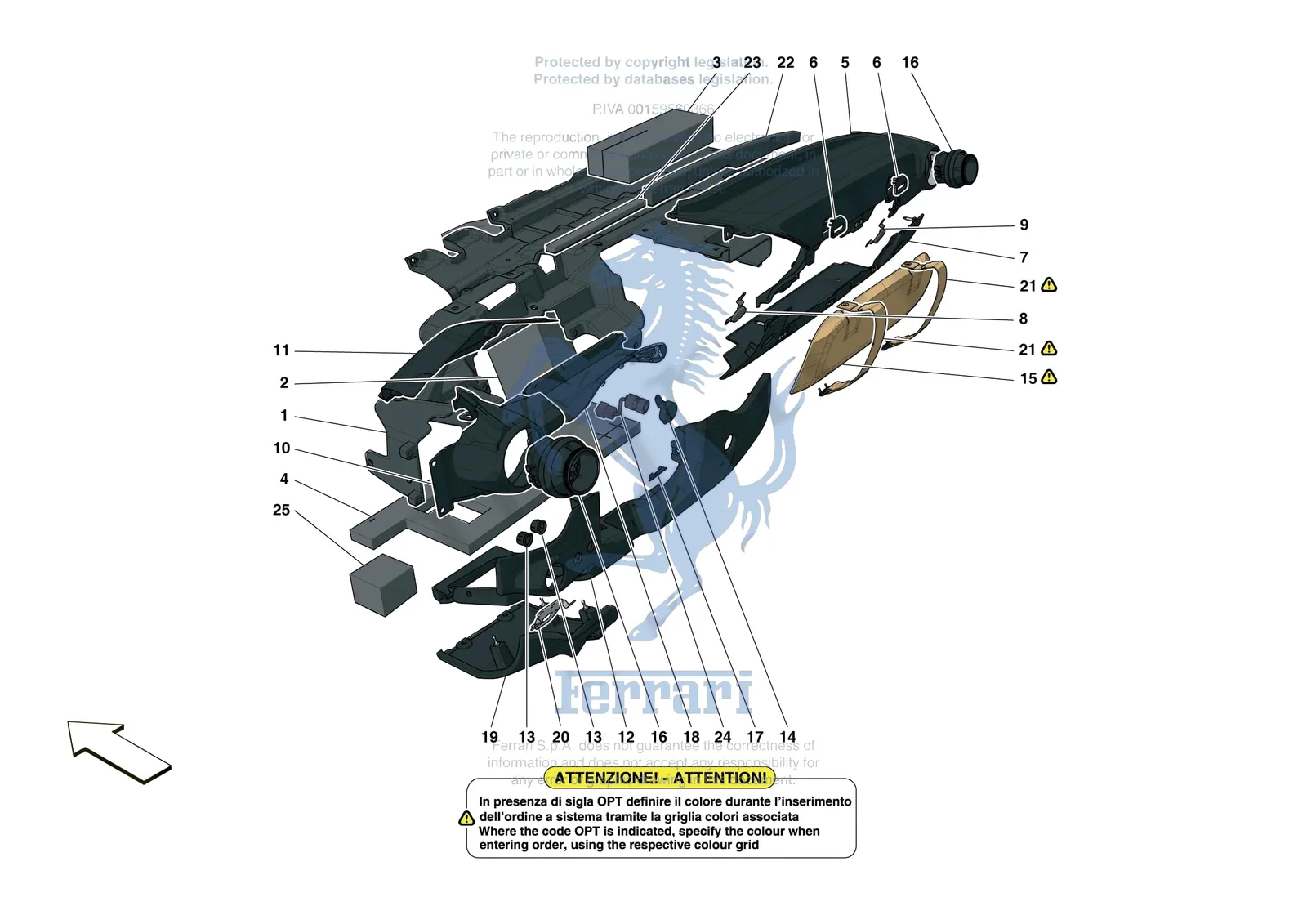

Exploded view of the [vehicle trim] - e.47.03 - dashboard - trim -not for rhd- on the Ferrari Monza SP1, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [VEHICLE TRIM] - E.47.03 - DASHBOARD - TRIM -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0151.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81341300 | Ferrari LH Dashboard Insulation LHD - 81341300 | $127.27 | Special order, ships in 7-14 days | |
| 1 | 831518 | Ferrari Dashboard Substructure - 831518 | $1,321.77 | Special order, ships in 7-14 days |
| 2 | 85154300 | Ferrari LH Dashboard Insulation - 85154300 | $152.41 | Special order, ships in 7-14 days |
| 3 | 83636400 | Ferrari RH Dashboard Insulation LHD - 83636400 | $39.31 | Special order, ships in 7-14 days |
| 4 | 83705600 | Ferrari Central Dashboard Insulation LHD - 83705600 | $149.96 | Special order, ships in 7-14 days |
| 5 | 831299 | Ferrari Passenger Side Upper Cover - 831299 | $7,009.94 | Special order, ships in 7-14 days |
| 6 | 831303 | Ferrari Upper Elastic Fastener Plate - 831303 | $391.61 | Special order, ships in 7-14 days |
| 7 | 831311 | Ferrari Passenger Side Lower Cover - 831311 | $5,690.47 | Special order, ships in 7-14 days |
| 8 | 854222 | Ferrari Griglia Tweeter Passeggero I - 854222 | $110.13 | Special order, ships in 7-14 days |
| 9 | 854223 | Ferrari Griglia Tweeter Passeggero E - 854223 | $110.13 | Special order, ships in 7-14 days |
| 10 | 831313 | Ferrari Copertura Zona Bocchetta Sx - 831313 | $3,520.11 | Special order, ships in 7-14 days |
| 11 | 831314 | Ferrari Copertura Centrale Retro St - 831314 | $3,254.35 | Special order, ships in 7-14 days |
| 11 | 874589 | Ferrari Copertura Centrale Retro St - 874589 | $3,266.00 | Special order, ships in 7-14 days |
| 12 | 906577 | Ferrari COMPL. DRIVER SIDE UNDERDASH TRIM - 906577 | Price on request | Contact us for price and availability |
| 13 | 268000 | Ferrari Trim Ring - 268000 | $33.54 | Available, ships in 3-6 days |
| 14 | 834233 | Ferrari CENTRE DRIVER SIDE TWEETER GRILLE - 834233 | Price on request | Contact us for price and availability |
| 15 | 831527 | Ferrari COMPL. KNEE REST - 831527 | Price on request | Contact us for price and availability |
| 15 | 906533 | Ferrari Compl. Knee Rest - 906533 | $1,911.57 | Special order, ships in 7-14 days |
| 16 | 87893200 | Ferrari Air Vent - 87893200 | $467.15 | Special order, ships in 7-14 days |
| 16 | 88752200 | Ferrari Air Vent - 88752200 | $467.15 | Special order, ships in 7-14 days |
| 18 | 88036300 | Ferrari COMPL. STEERING COLUMN SHIELD DASHBOARD BELLOW - 88036300 | $614.67 | Special order, ships in 7-14 days |
| 19 | 831318 | Ferrari COMPL. FUSE BOX COVER - 831318 | Price on request | Contact us for price and availability |
| 20 | 832763 | Ferrari Epb Bracket - 832763 | $44.03 | Special order, ships in 7-14 days |
| 21 | 878860 | Ferrari Complete Strap With Elastic - 878860 | $1,395.20 | Special order, ships in 7-14 days |
| 22 | 895740 | Ferrari Passenger Side Upper Dash Section Seal - 895740 | $45.67 | Special order, ships in 7-14 days |
| 23 | 895880 | Ferrari Passenger Side Upper Dashboard Section Seal - 895880 | $20.43 | Special order, ships in 7-14 days |
| 24 | 236847 | Ferrari Ambient Temperature Sensor - 236847 | $113.32 | In stock |
| 25 | 934695 | Ferrari Driver Side Dashboard Anti-V - 934695 | Price on request | Contact us for price and availability |
