Ferrari Monza SP1 — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari Monza SP1, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

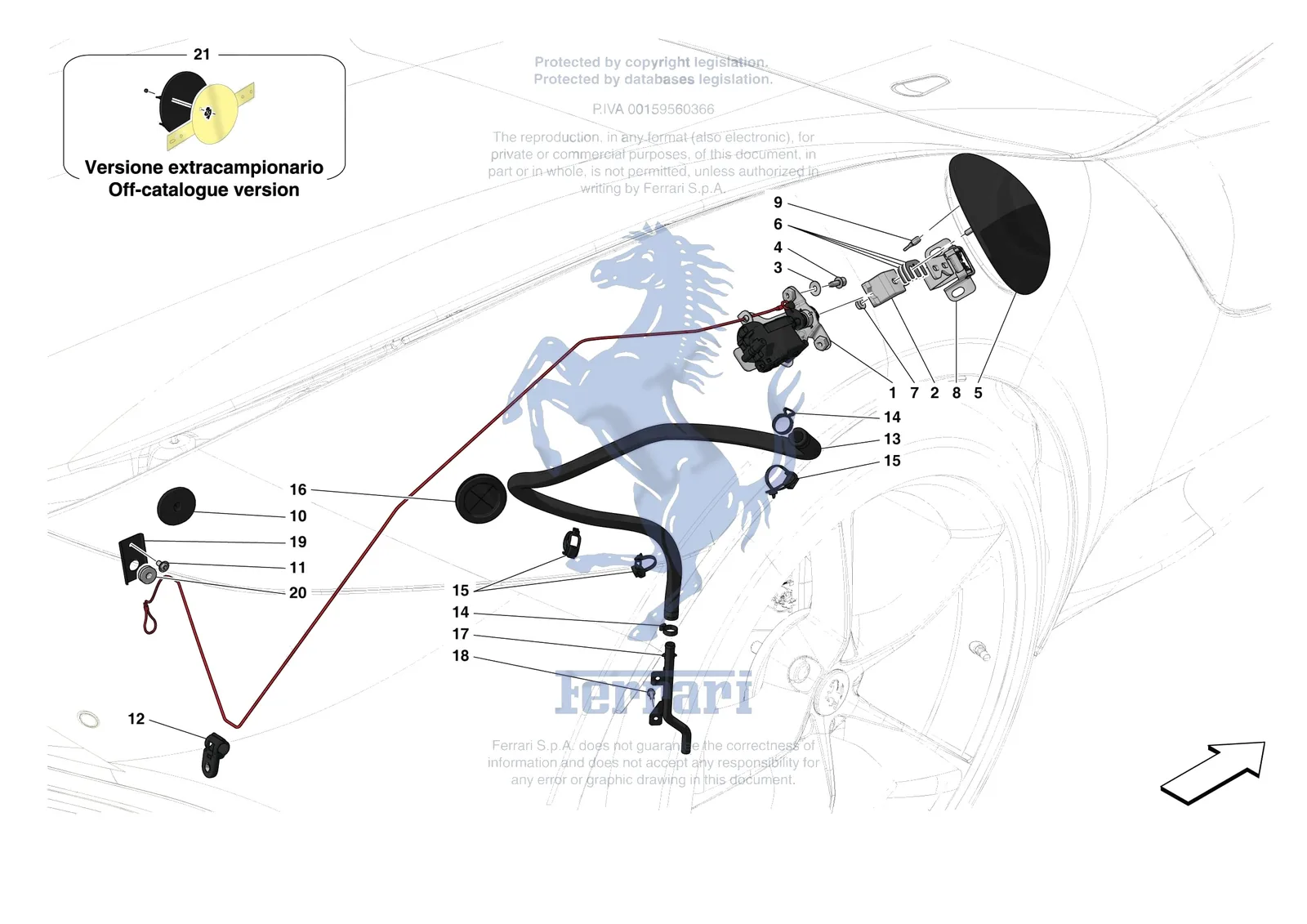

Ferrari Monza SP1 [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1843128Ferrari Attuatore Sport.Carb.Cpl - 843128$261.07Special order, ships in 7-14 days
282249400Ferrari Striker Plate - 82249400$12.99Special order, ships in 7-14 days
312638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
4294780Ferrari Allen Head Bolt with Washer M5X16 - 294780$0.98Special order, ships in 7-14 days
485158100Ferrari Screw - 85158100$2.59Special order, ships in 7-14 days
5985827368Ferrari Compl. Fuel Filler Flap - 985827368$881.17Special order, ships in 7-14 days
684046900Ferrari Spacer Plate - 84046900$14.72Special order, ships in 7-14 days
714059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
714039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
8872490Ferrari Cerniera Cpl Sportello Carbu - 872490$269.23Special order, ships in 7-14 days
987219800Ferrari Rubber Pad - 87219800$3.91Special order, ships in 7-14 days
1088437200Ferrari Bowden Cable Fume Seal - 88437200$45.67Special order, ships in 7-14 days
1186705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
12244218Ferrari Clip - 244218$8.51Available, ships in 3-6 days
13827366Ferrari Tubo Drenaggio - 827366$562.96Special order, ships in 7-14 days
1413433570Ferrari Hose Clip - 13433570$1.40Special order, ships in 7-14 days
15177553Ferrari Clamp - 177553$0.84Available, ships in 3-6 days
1681535200Ferrari Grommet With Membrane - 81535200$54.61Special order, ships in 7-14 days
1784741100Ferrari Rigid Drain Pipe - 84741100$225.17Special order, ships in 7-14 days
18231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
19912408Ferrari Cable Guide Bracket - 912408Price on requestContact us for price and availability
19936706Ferrari Cable Guide Bracket - 936706$107.68Special order, ships in 7-14 days
2010396180Ferrari Rubber Ring - 10396180$5.65Available, ships in 3-6 days
2170006829Ferrari FUEL FILLER FLAP KIT, BRUSHED FINISH CAVALLINO EMBLEM - 70006829Price on requestContact us for price and availability
2170006837Ferrari FUEL FILLER FLAP KIT, CHROME FINISH CAVALLINO EMBLEM - 70006837Price on requestContact us for price and availability
