Ferrari Monza SP1 — [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

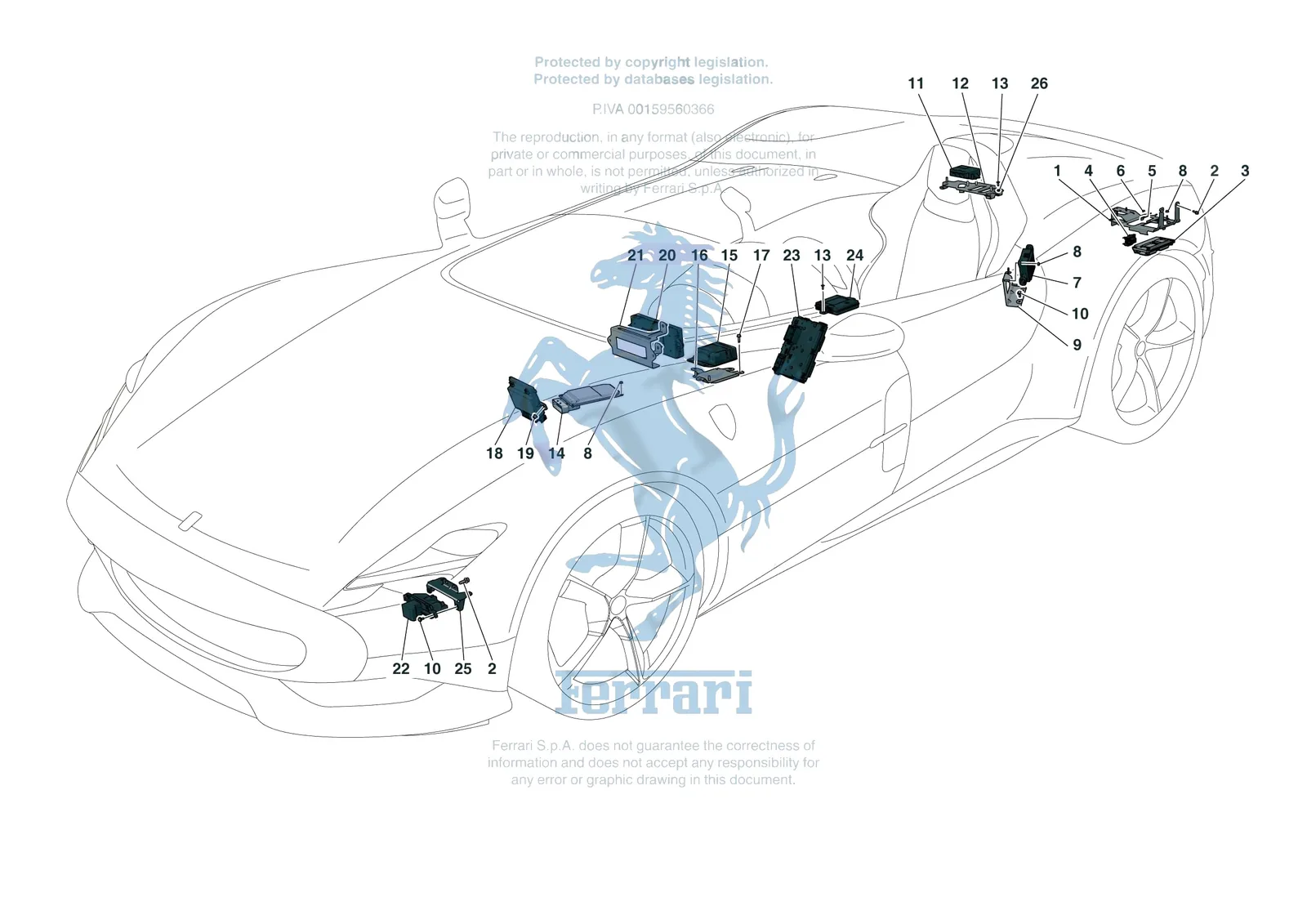

Exploded view of the [electrical system] - f.6 - electrical system control units on the Ferrari Monza SP1, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0181.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 310779 | Ferrari Passive Start Control Unit - 310779 | Superseded | Order 328097 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 330810 | Ferrari Compl. Lift System ECU Mount - 330810 | $189.31 | Special order, ships in 7-14 days |
| 2 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 3 | 328221 | Ferrari Vehicle Lift Ecu - 328221 | $1,549.03 | Special order, ships in 7-14 days |
| 4 | 261704 | Ferrari Cap Connector For ECU - 261704 | $78.66 | Special order, ships in 7-14 days |
| 5 | 326645 | Ferrari Lift System ECU Retainer Bra - 326645 | $20.37 | Special order, ships in 7-14 days |
| 6 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 7 | 294559 | Ferrari PWM Command Signal For Fuel - 294559 | Superseded | Order 849386 instead |
| 7 | 849386 | Ferrari PWM Command Signal for Fuel Pumps - 849386 | $688.45 | Special order, ships in 7-14 days |
| 8 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 8 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 9 | 292632 | Ferrari Bracket - 292632 | $68.83 | Special order, ships in 7-14 days |
| 10 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 11 | 849075 | Ferrari Centralina Nodo Sens Parcheg - 849075 | $416.09 | Special order, ships in 7-14 days |
| 12 | 847606 | Ferrari Parking Sensor Node ECU Bracket - 847606 | $203.15 | Special order, ships in 7-14 days |
| 13 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 14 | 879047 | Ferrari Magneride Suspension ECU - 879047 | $1,860.28 | Special order, ships in 7-14 days |
| 15 | 868013 | Ferrari Centralina Airbag F176 - 868013 | $979.09 | Special order, ships in 7-14 days |
| 16 | 323147 | Ferrari Compl. Airbag ECU Bracket - 323147 | $110.61 | Special order, ships in 7-14 days |
| 17 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 18 | 264097 | Ferrari Voltage Stabilizer - 264097 | $969.98 | In stock |
| 19 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 20 | 908351 | Ferrari Ncl A/C Black Box - 908351 | $1,542.07 | Special order, ships in 7-14 days |
| 21 | 330826 | Ferrari Compl. Ac Black Box Fastener - 330826 | $108.16 | Special order, ships in 7-14 days |
| 22 | 315386 | Ferrari Adaptive Headlight Node Ecu - 315386 | $491.74 | Special order, ships in 7-14 days |
| 23 | 898086 | Ferrari NPL Dashboard Node F176 - 898086 | $2,051.44 | Special order, ships in 7-14 days |
| 24 | 328097 | Ferrari Passive Start ECU - 328097 | $614.67 | Special order, ships in 7-14 days |
| 25 | 839224 | Ferrari Adaptive Headlight ECU Mounting Bracket - 839224 | $97.88 | Special order, ships in 7-14 days |
| 26 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
