Ferrari Monza SP1 — [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS (diagram 0184)

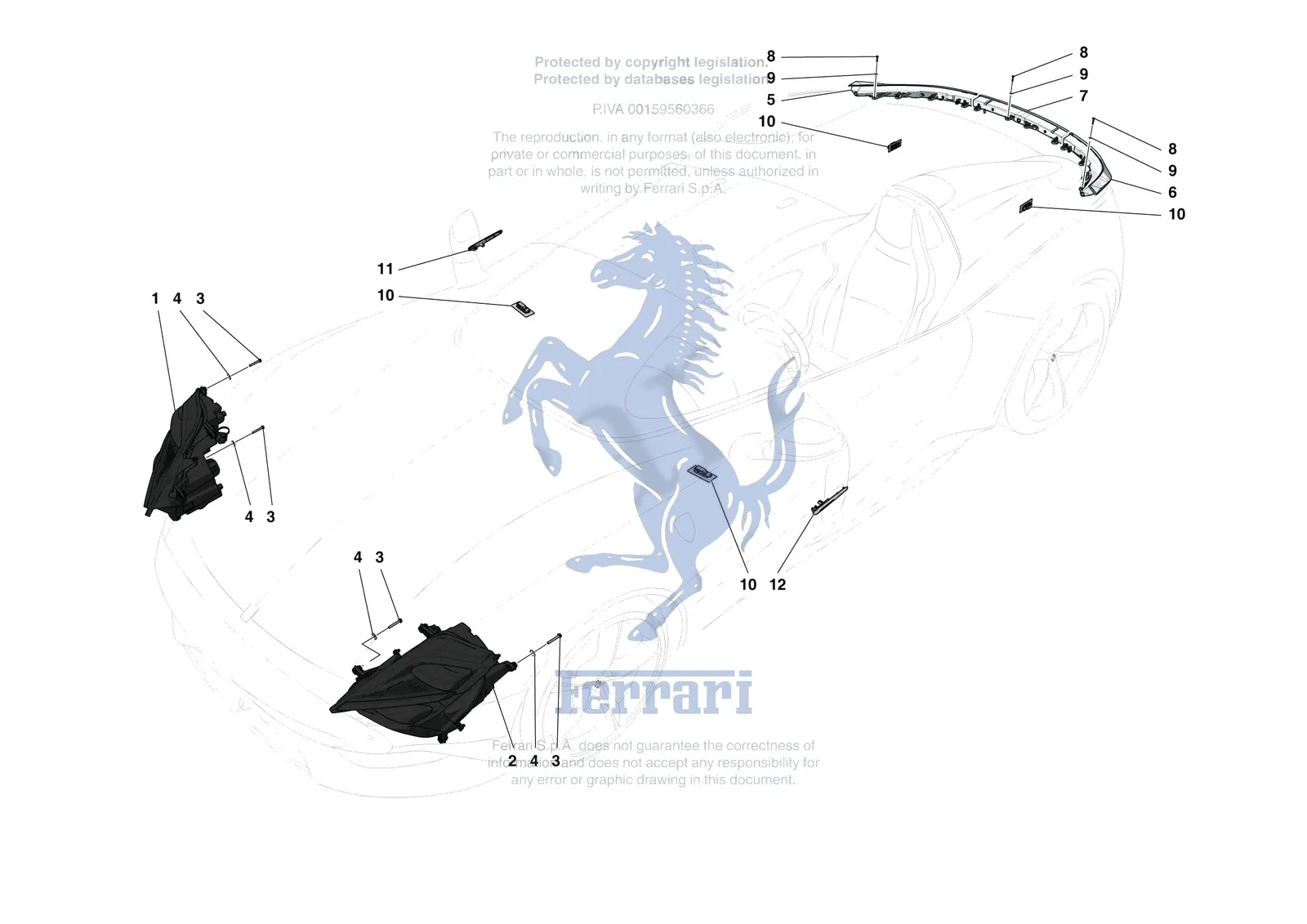

Exploded view of the [electrical system] - f.9 - lighting systems on the Ferrari Monza SP1, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 192623 | Ferrari Screw - 192623 | $5.40 | Special order, ships in 7-14 days | |
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 828208 | Ferrari Proiettore Dx Full Led - 828208 | $17,586.66 | Contact us to order |
| 1 | 873915 | Ferrari Proiettore Dx Full Led Gdx - 873915 | $17,586.66 | Contact us to order |
| 2 | 828186 | Ferrari Proiettore Sx Full Led - 828186 | $17,586.66 | Contact us to order |
| 2 | 873910 | Ferrari Proiettore Sx Full Led Gdx - 873910 | $17,586.66 | Contact us to order |
| 3 | 84340000 | Ferrari Screw - 84340000 | $3.68 | Available, ships in 3-6 days |
| 4 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 4 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
| 5 | 828235 | Ferrari Fanale Dx - 828235 | $5,228.12 | Special order, ships in 7-14 days |
| 6 | 828237 | Ferrari Fanale Sx - 828237 | $5,228.12 | Special order, ships in 7-14 days |
| 7 | 828236 | Ferrari Fanale Centrale - 828236 | $6,423.77 | Special order, ships in 7-14 days |
| 8 | 85834100 | Ferrari Screw M5 x 30 TBFTX - 85834100 | $0.79 | Special order, ships in 7-14 days |
| 9 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 10 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 11 | 880000 | Ferrari RH Turn Indicator - 880000 | $391.61 | Special order, ships in 7-14 days |
| 12 | 879997 | Ferrari LH Turn Indicator - 879997 | $391.61 | Special order, ships in 7-14 days |
