Ferrari Monza SP2 — [ENGINE] - B.2 - ENGINE SUSPENSION (diagram 0005)

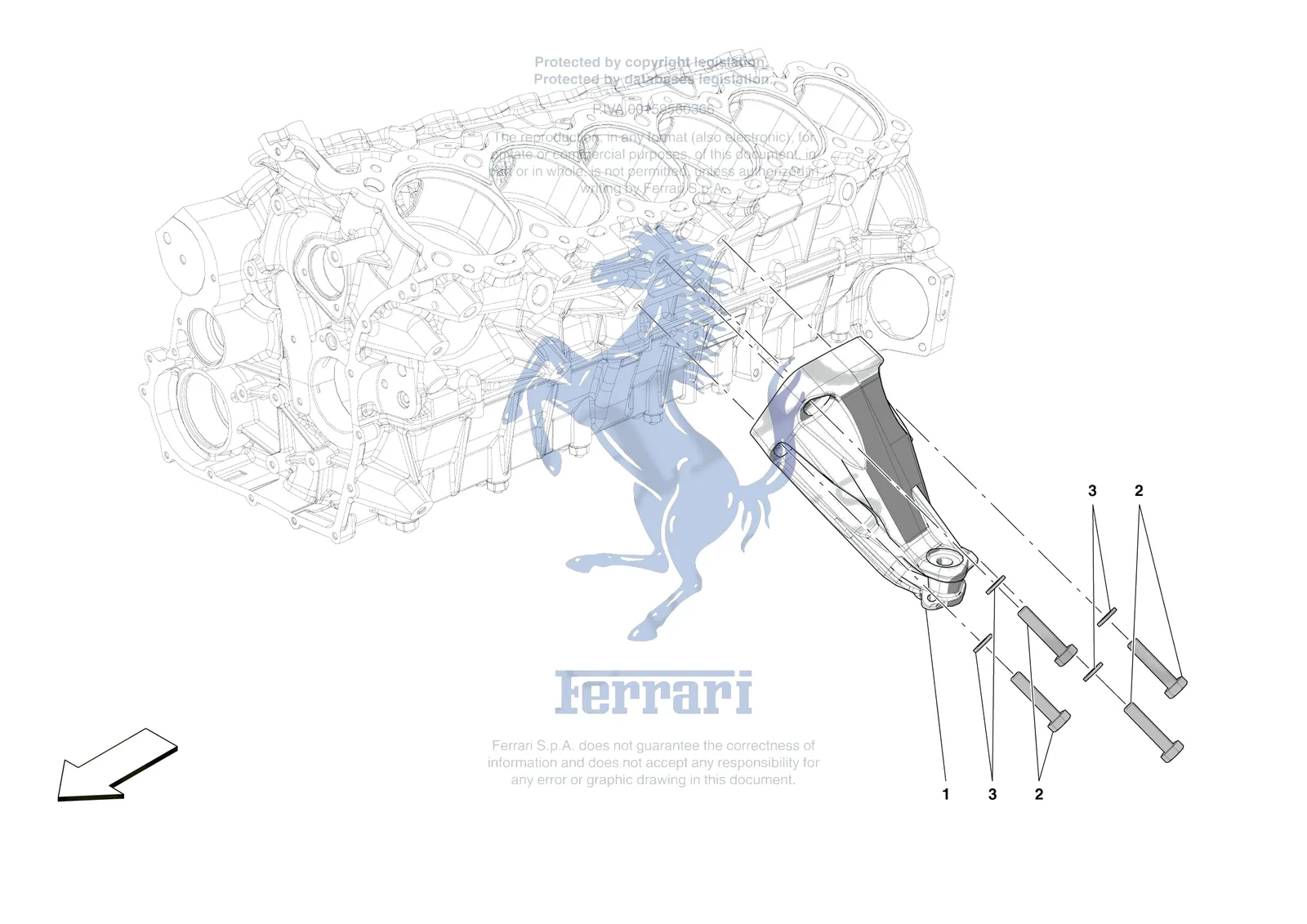

Exploded view of the [engine] - b.2 - engine suspension on the Ferrari Monza SP2, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ENGINE] - B.2 - ENGINE SUSPENSION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0005.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 267424 | Ferrari LH Engine Strut - 267424 | $516.33 | Special order, ships in 7-14 days |
| 1 | 267423 | Ferrari RH Engine Strut - 267423 | $516.33 | Special order, ships in 7-14 days |
| 2 | 11234734 | Ferrari Screw 10x1.25x45 - 11234734 | $1.55 | Special order, ships in 7-14 days |
| 3 | 11190574 | Ferrari Washer - 11190574 | $0.13 | Available, ships in 3-6 days |
