Ferrari Monza SP2 — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)

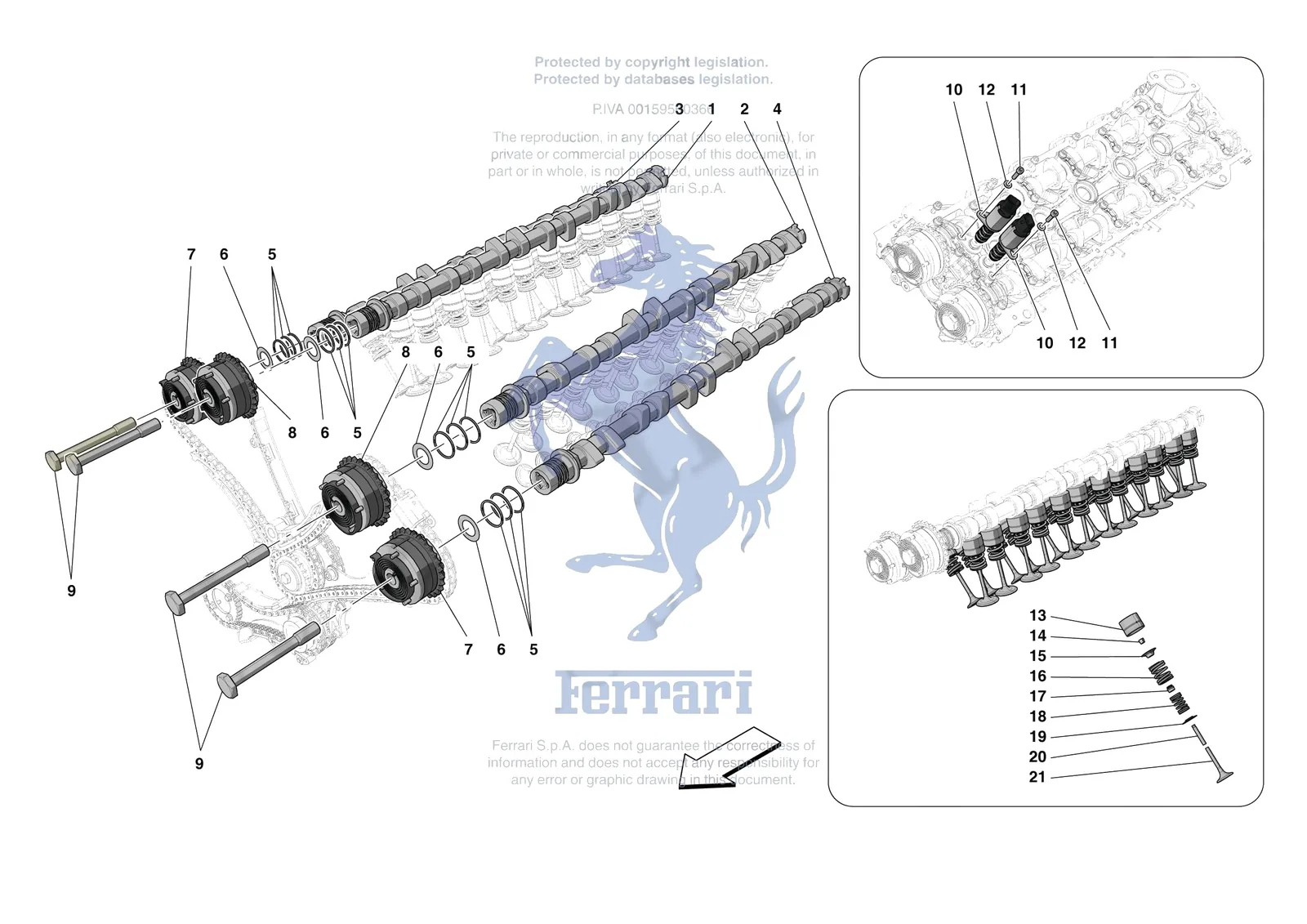

Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari Monza SP2, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 213498 | Ferrari Intake Valve Guide - 213498 | Superseded | Order 6213498 instead | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 1 | 321295 | Ferrari RH Intake Camshaft - 321295 | $856.46 | Special order, ships in 7-14 days |
| 2 | 321296 | Ferrari LH Intake Camshaft - 321296 | $1,993.17 | Special order, ships in 7-14 days |
| 3 | 321297 | Ferrari RH Exhaust Camshaft - 321297 | $856.46 | Special order, ships in 7-14 days |
| 4 | 321298 | Ferrari LH Exhaust Camshaft - 321298 | $856.46 | Special order, ships in 7-14 days |
| 5 | 197975 | Ferrari Sealing Ring - 197975 | $14.62 | Available, ships in 3-6 days |
| 6 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 7 | 248020 | Ferrari Exhaust Phase Variator - 248020 | $811.38 | Available, ships in 3-6 days |
| 8 | 241906 | Ferrari Intake Timing Variator - 241906 | $811.38 | Available, ships in 3-6 days |
| 9 | 254892 | Ferrari Screw M14 x 1.5 - 254892 | $26.20 | Available, ships in 3-6 days |
| 10 | 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead |
| 10 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 11 | 14304221 | Ferrari Screw 5X16 - 14304221 | $0.19 | Special order, ships in 7-14 days |
| 12 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 13 | 255431 | Ferrari Hydraulic Tappet Dia 35 - 255431 | $73.73 | Special order, ships in 7-14 days |
| 14 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 15 | 320911 | Ferrari Upper Valve Spring Cap - 320911 | $15.72 | Special order, ships in 7-14 days |
| 16 | 789285 | Ferrari External Valve Return Spring - 789285 | $22.85 | Special order, ships in 7-14 days |
| 17 | 221473 | Ferrari Valve Stem Seal - 221473 | $2.22 | In stock |
| 18 | 789304 | Ferrari Internal Valve Return Spring - 789304 | $17.19 | Special order, ships in 7-14 days |
| 19 | 321017 | Ferrari Lower Valve Spring Cap - 321017 | $12.27 | Special order, ships in 7-14 days |
| 20 | 6213498 | Ferrari Intake And Exhaust Valve Guide - 6213498 | $5.14 | Special order, ships in 7-14 days |
| 21 | 319636 | Ferrari Exhaust Valve - 319636 | $130.29 | Special order, ships in 7-14 days |
| 21 | 319722 | Ferrari Intake Valve - 319722 | $66.35 | Special order, ships in 7-14 days |
