Ferrari Monza SP2 — [ENGINE] - B.12 - ENGINE OIL PUMP (diagram 0017)

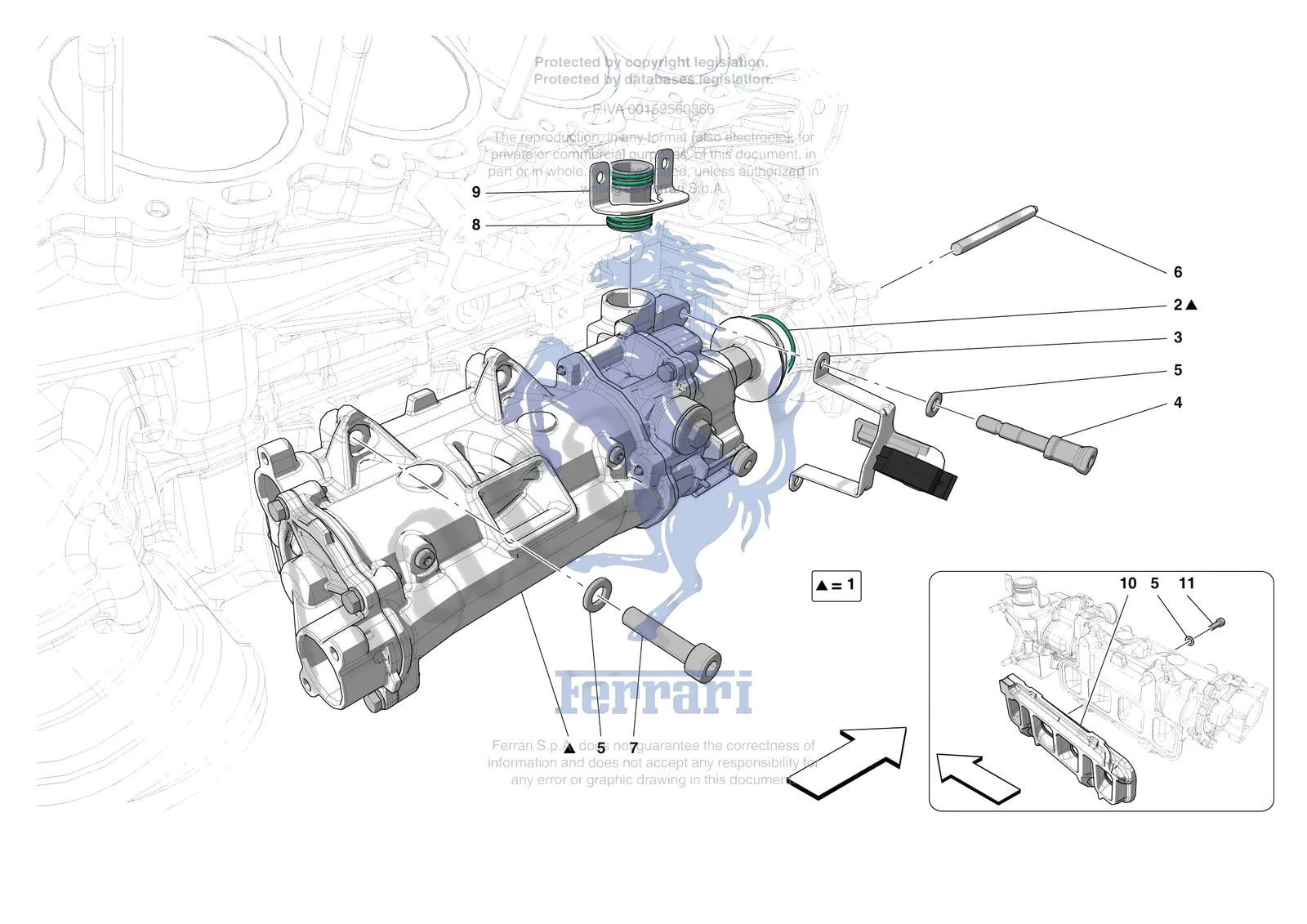

Exploded view of the [engine] - b.12 - engine oil pump on the Ferrari Monza SP2, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ENGINE] - B.12 - ENGINE OIL PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0017.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 331659 | Ferrari Compl. Oil Pump - 331659 | $5,040.07 | Special order, ships in 7-14 days | |
| 288975 | Ferrari Hexagonal Oil Pump Drive Rod - 288975 | Superseded | Order 295134 instead | |
| 14306624 | Ferrari Screw 8x35mm - 14306624 | $0.52 | Special order, ships in 7-14 days | |
| 1 | 340448 | Ferrari Compl. Oil Pump - 340448 | $5,091.34 | Special order, ships in 7-14 days |
| 1 | 826586 | Ferrari Pompe Olio Cpl - 826586 | $5,116.64 | Special order, ships in 7-14 days |
| 2 | 123353 | Ferrari O-Ring - 123353 | $4.35 | Available, ships in 3-6 days |
| 3 | 337138 | Ferrari Cable Mounting Bracket - 337138 | $63.90 | Special order, ships in 7-14 days |
| 4 | 292495 | Ferrari Calibrated Stud Bolt - 292495 | $44.24 | Special order, ships in 7-14 days |
| 5 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 6 | 295134 | Ferrari Hexagonal Oil Pump Drive Rod - 295134 | $46.69 | Special order, ships in 7-14 days |
| 7 | 14306621 | Ferrari Screw 8X35 - 14306621 | Superseded | Order 14306624 instead |
| 8 | 327521 | Ferrari Compl. Oil Pump Delivery Fitting - 327521 | $58.98 | Special order, ships in 7-14 days |
| 9 | 327526 | Ferrari Bracket - 327526 | $12.52 | Special order, ships in 7-14 days |
| 10 | 275528 | Ferrari Pump Seal Filter - 275528 | $58.98 | Available, ships in 3-6 days |
| 11 | 14306421 | Ferrari Screw 8x20 - 14306421 | $0.63 | Available, ships in 3-6 days |
| 11 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
