Ferrari Monza SP2 — [ENGINE] - B.32 - ALTERNATOR (diagram 0037)

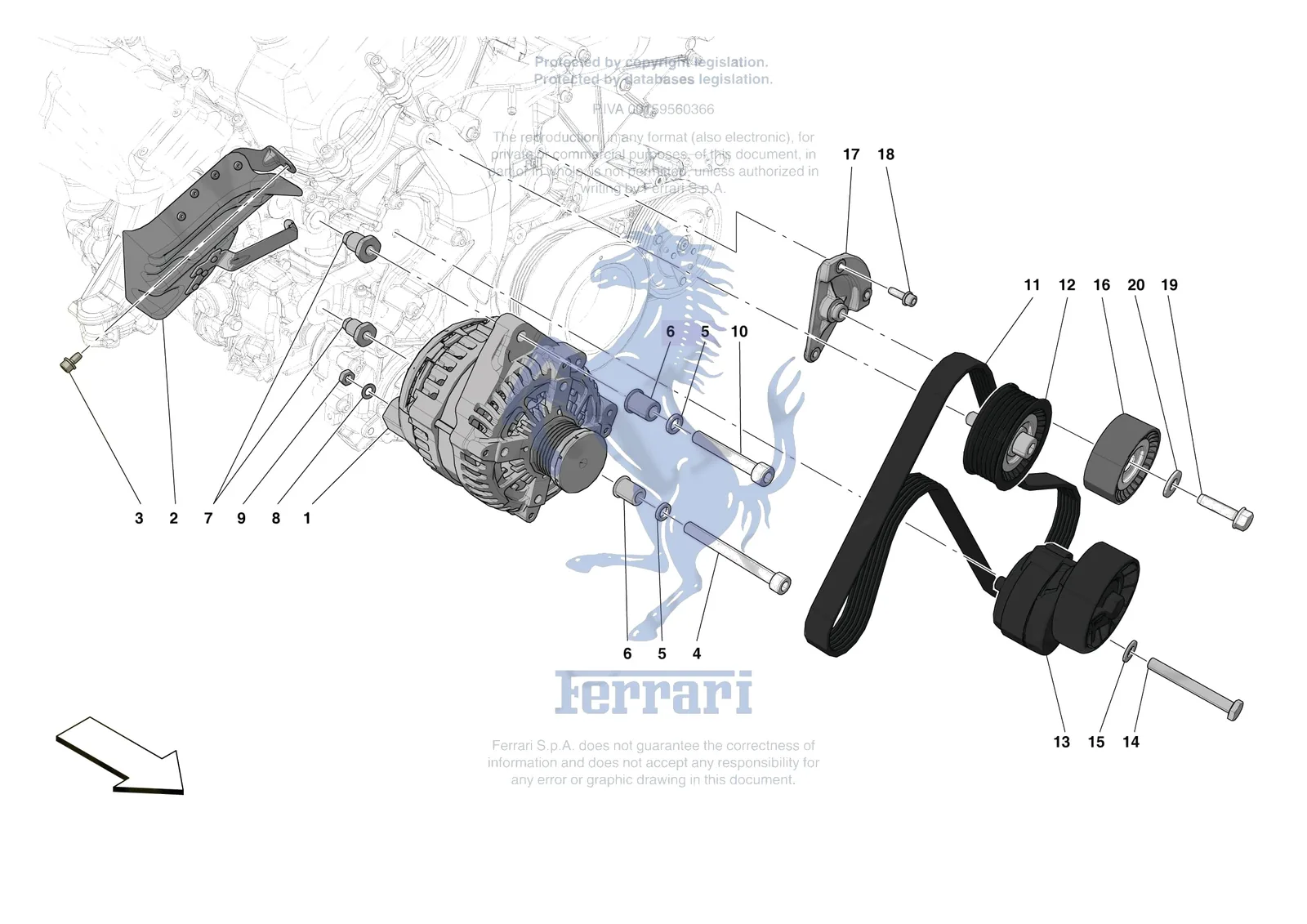

Exploded view of the [engine] - b.32 - alternator on the Ferrari Monza SP2, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ENGINE] - B.32 - ALTERNATOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0037.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 905874 | Ferrari Belt - 905874 | $126.17 | Available, ships in 3-6 days | |
| 324198 | Ferrari Belt Tightener Mount - 324198 | $832.22 | Special order, ships in 7-14 days | |
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102315 | Ferrari Nut - 16102315 | Superseded | Order 16102314 instead | |
| 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead | |
| 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 321207 | Ferrari Alternator - 321207 | $2,656.01 | Special order, ships in 7-14 days |
| 2 | 339134 | Ferrari Paratia Anticalore Alternat - 339134 | $319.62 | Special order, ships in 7-14 days |
| 3 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 4 | 14308724 | Ferrari Allen Screw 10x100 - 14308724 | $6.75 | Available, ships in 3-6 days |
| 5 | 10569474 | Ferrari Washer - 10569474 | $0.12 | Special order, ships in 7-14 days |
| 6 | 258137 | Ferrari Bushing - 258137 | $10.91 | Special order, ships in 7-14 days |
| 7 | 288320 | Ferrari Threaded Bushing - 288320 | $26.20 | Special order, ships in 7-14 days |
| 8 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 9 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 10 | 14308224 | Ferrari Screw - 14308224 | $2.07 | Special order, ships in 7-14 days |
| 11 | 895332 | Ferrari Alternator Belt - 895332 | $79.98 | In stock |
| 11 | 343363 | Ferrari Belt - 343363 | Superseded | Order 905874 instead |
| 12 | 295763 | Ferrari Fixed Mule Pulley - 295763 | $90.95 | Special order, ships in 7-14 days |
| 13 | 337705 | Ferrari Drive Belt Tensioner - 337705 | $227.55 | In stock |
| 14 | 268567 | Ferrari Screw TE M8 x 60 - 268567 | $10.91 | Special order, ships in 7-14 days |
| 15 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 16 | 294613 | Ferrari Smooth Pulley - 294613 | $162.25 | Available, ships in 3-6 days |
| 17 | 809527 | Ferrari Supporto Galoppino - 809527 | $417.97 | Special order, ships in 7-14 days |
| 18 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 19 | 899010 | Ferrari Screw - 899010 | $1.48 | Special order, ships in 7-14 days |
| 20 | 12642524 | Ferrari Washer - 12642524 | $0.40 | Available, ships in 3-6 days |
| 20 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
