Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS (diagram 0061)

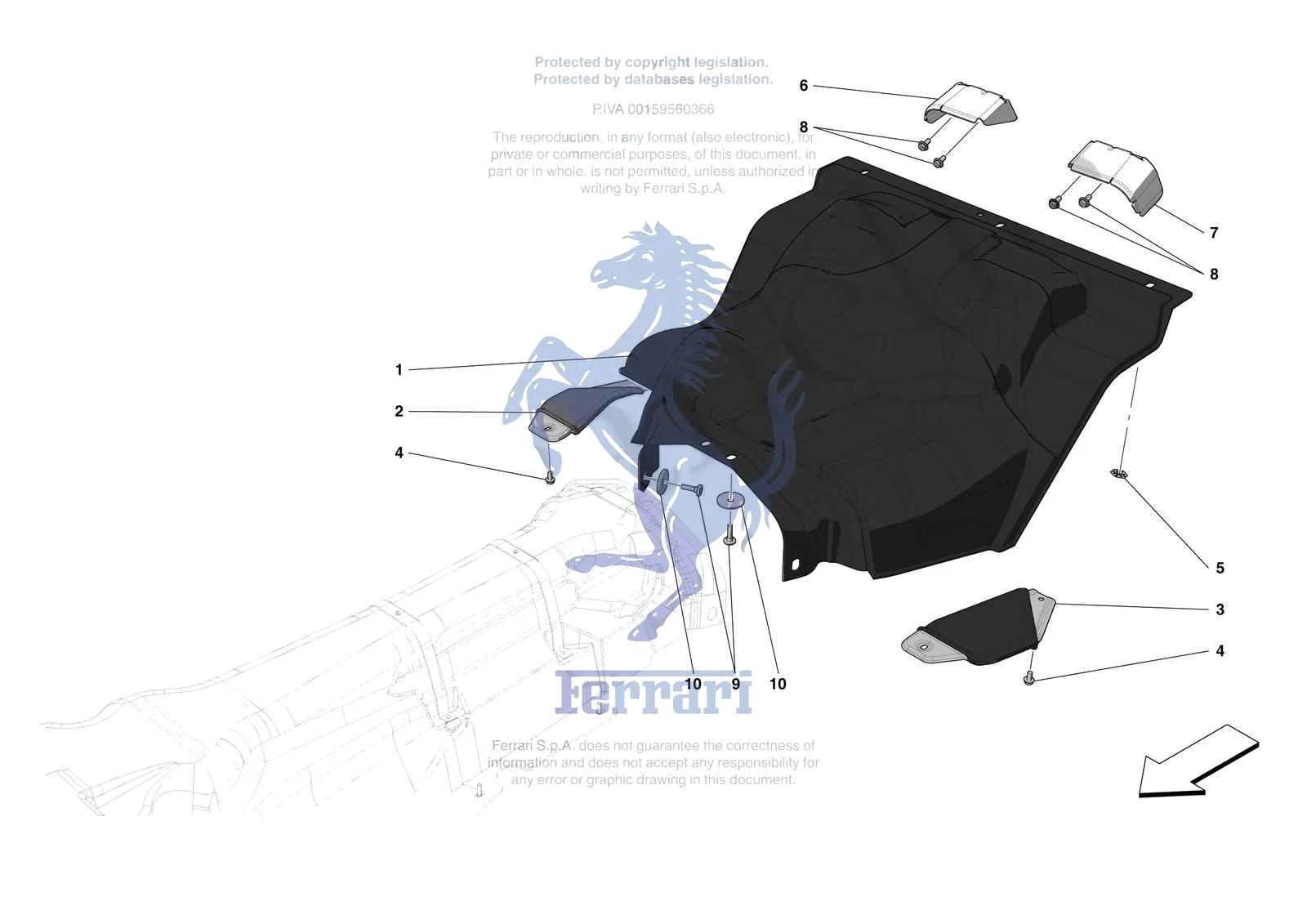

Exploded view of the [mechanical system] - d.12 - tank mounts on the Ferrari Monza SP2, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0061.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 300748 | Ferrari Heat Insulation - 300748 | $737.61 | Special order, ships in 7-14 days |
| 2 | 332004 | Ferrari Front RH Bracket - 332004 | $98.32 | Special order, ships in 7-14 days |
| 3 | 332002 | Ferrari Front LH Bracket - 332002 | $98.32 | Special order, ships in 7-14 days |
| 4 | 16287024 | Ferrari Screw - 16287024 | $1.00 | In stock |
| 5 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
| 6 | 332006 | Ferrari Rear RH Bracket - 332006 | $115.54 | Special order, ships in 7-14 days |
| 7 | 332005 | Ferrari Rear LH Bracket - 332005 | $115.54 | Special order, ships in 7-14 days |
| 8 | 11640421 | Ferrari Screw 8X20 - 11640421 | $4.35 | Special order, ships in 7-14 days |
| 9 | 85629300 | Ferrari Screw M6 x 20 - 85629300 | $1.17 | Available, ships in 3-6 days |
| 9 | 66091000 | Ferrari Trim Screw - 66091000 | $5.63 | In stock |
| 10 | 13578405 | Ferrari Washer 8.15-36x2.5 - 13578405 | $1.80 | Special order, ships in 7-14 days |
