Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR (diagram 0082)
Exploded view of the [mechanical system] - d.28 - rear torsion bar on the Ferrari Monza SP2, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

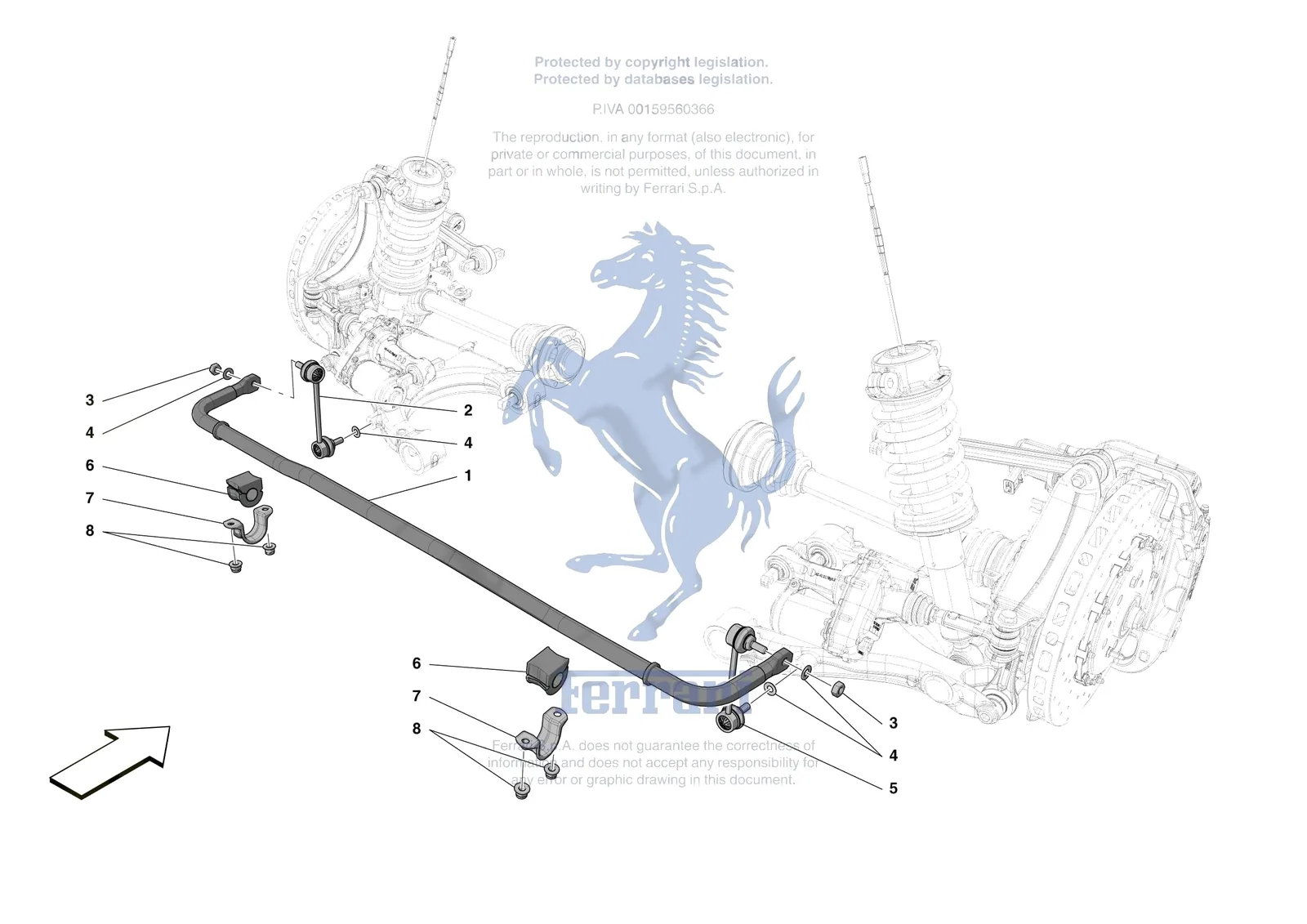

![Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0082.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| 1 | 262790 | Ferrari Rear Stabiliser Bar - 262790 | $663.86 | Special order, ships in 7-14 days |
| 2 | 242392 | Ferrari LH Ball Tie Rod - 242392 | $178.81 | Special order, ships in 7-14 days |
| 2 | 242391/2 | Ferrari Rear Sway Bar Link Pair - 242391/2 | $328.90 | In stock |
| 3 | 12164714 | Ferrari Nut M10 x 1.25 x 8 - 12164714 | $0.82 | Available, ships in 3-6 days |
| 4 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 5 | 242391 | Ferrari RH Ball Tie Rod - 242391 | $169.54 | Special order, ships in 7-14 days |
| 6 | 236242 | Ferrari Roll Bar Bush D21 x 36 - 236242 | $49.14 | Special order, ships in 7-14 days |
| 7 | 244778 | Ferrari Anti-Roll Bar Bush Bracket - 244778 | $36.86 | Special order, ships in 7-14 days |
| 8 | 12578321 | Ferrari Nut - 12578321 | $1.28 | Available, ships in 3-6 days |
