Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0093)
Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari Monza SP2, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

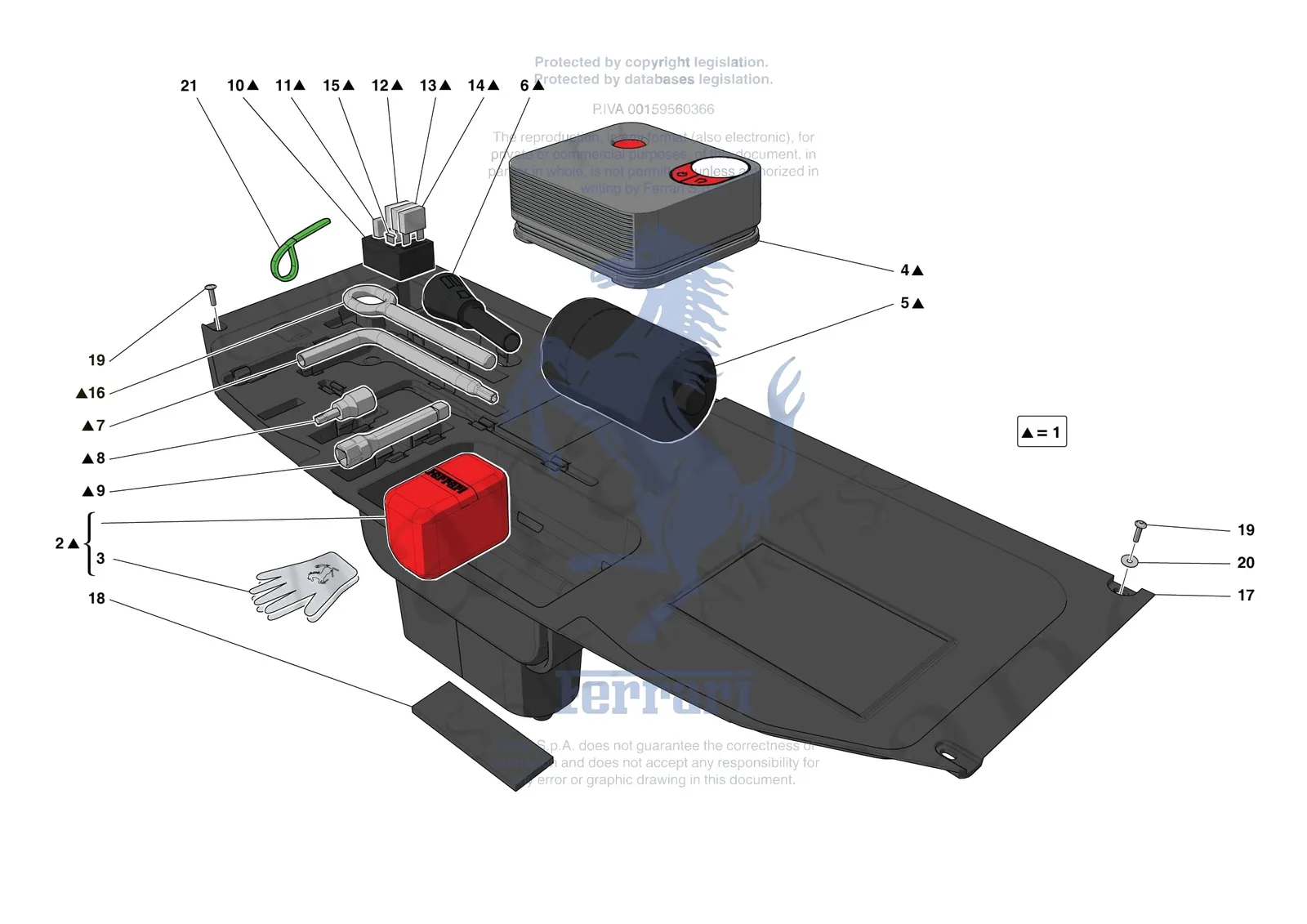

![Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0093.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 1 | 318850 | Ferrari Kit Per Trousse Cpl F152Vs - 318850 | $1,081.84 | Special order, ships in 7-14 days |
| 1 | 766027 | Ferrari Kit Per Trousse Cpl F176 - 766027 | $1,125.95 | Special order, ships in 7-14 days |
| 2 | 65253000 | Ferrari Accessory Holder Wallet Complete - 65253000 | $179.46 | Special order, ships in 7-14 days |
| 3 | 65253300 | Ferrari White Gloves - 65253300 | $49.28 | In stock |
| 4 | 766009 | Ferrari Complete Tyre Repair Kit - 766009 | $734.31 | Special order, ships in 7-14 days |
| 4 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 5 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 6 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 7 | 297896 | Ferrari P. Lock And RHT Release Tool - 297896 | $71.28 | Special order, ships in 7-14 days |
| 8 | 305545 | Ferrari TORX Socket - 305545 | $58.73 | Special order, ships in 7-14 days |
| 9 | 305967 | Ferrari Socket Wrench Extension - 305967 | $115.54 | Special order, ships in 7-14 days |
| 10 | 248390 | Ferrari Fuse Compartment Foam - 248390 | $24.02 | Special order, ships in 7-14 days |
| 11 | 178659 | Ferrari Fuse Pliers - 178659 | $4.89 | Special order, ships in 7-14 days |
| 12 | 170061 | Ferrari Maxi Fuse 50A - 170061 | $8.05 | Available, ships in 3-6 days |
| 13 | 166835 | Ferrari Maxi Fuse 40A - 166835 | $17.46 | Available, ships in 3-6 days |
| 14 | 172872 | Ferrari Maxi Fuse 70A - 172872 | $39.14 | Available, ships in 3-6 days |
| 15 | 131941 | Ferrari Fuse 30 Amp - 131941 | $0.92 | Available, ships in 3-6 days |
| 16 | 155838 | Ferrari Tow Hook - 155838 | $98.87 | In stock |
| 17 | 918337 | Ferrari Compl. Tool Kit Tray - 918337 | $611.91 | Special order, ships in 7-14 days |
| 18 | 142798 | Ferrari Rubber Shim - 142798 | $2.82 | Available, ships in 3-6 days |
| 19 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 19 | 169815 | Ferrari Screw TBFEI M5 x 20 - 169815 | $3.47 | Available, ships in 3-6 days |
| 20 | 263276 | Ferrari Washer - 263276 | $0.33 | Available, ships in 3-6 days |
| 21 | 918775 | Ferrari Cinghietto Estrazione Attrez - 918775 | $63.61 | Special order, ships in 7-14 days |
