Ferrari Monza SP2 — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari Monza SP2, with 87 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

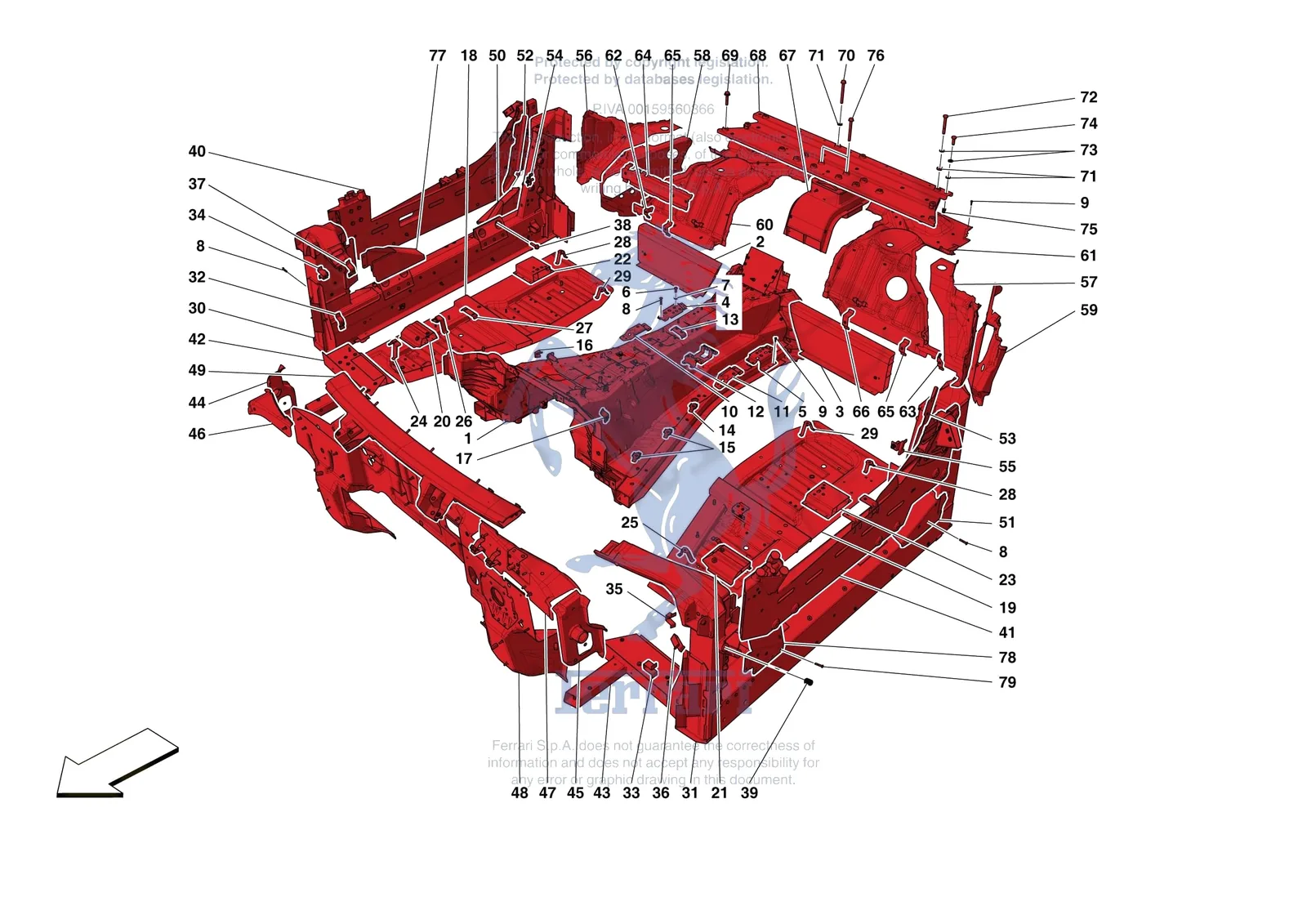

Ferrari Monza SP2 [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
273971Ferrari LH Semi-Floor - 273971SupersededOrder 985273971 instead
273972Ferrari RH Semi-Floor - 273972SupersededOrder 985273972 instead
1985823458Ferrari Compl. Tunnel - 985823458$36,839.71Contact us to order
2274204Ferrari RH Lower Rear Floor Cross-Piece - 274204$1,444.15Special order, ships in 7-14 days
2985274204Ferrari RH Lower Rear Floor Cross-Piece - 985274204$1,475.26Special order, ships in 7-14 days
3274205Ferrari LH Lower Rear Floor Cross-Piece - 274205$1,444.15Special order, ships in 7-14 days
3985274205Ferrari LH Lower Rear Floor Cross-Piece - 985274205$1,475.26Special order, ships in 7-14 days
4294722Ferrari RH Inner Rear Seat Bracket - 294722$885.15Special order, ships in 7-14 days
5294720Ferrari LH Inner Rear Seat Bracket - 294720$885.15Special order, ships in 7-14 days
684260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
713579421Ferrari WASHER - 13579421Price on requestContact us for price and availability
8204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
914639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
10273922Ferrari RH Inner Front Seat Bracket - 273922$1,106.43Special order, ships in 7-14 days
11273921Ferrari LH Inner Front Seat Bracket - 273921$1,106.43Special order, ships in 7-14 days
12331125Ferrari Rear Fastener Bracket For Re - 331125$110.61Special order, ships in 7-14 days
13286417Ferrari Front Bracket For Front Fastener - 286417$21.60Special order, ships in 7-14 days
14842159Ferrari Rear Inner Bracket - 842159$132.15Special order, ships in 7-14 days
14842167Ferrari Rear Inner Bracket - 842167SupersededOrder 842159 instead
16863170Ferrari RH FRONT BRACKET - 863170Price on requestContact us for price and availability
17863158Ferrari LH FRONT BRACKET - 863158Price on requestContact us for price and availability
18985273972Ferrari RH Semi-Floor - 985273972$2,458.79Contact us to order
19985273971Ferrari LH Semi-Floor - 985273971$2,458.79Contact us to order
20273925Ferrari RH Outer Front Seat Bracket - 273925$881.17Special order, ships in 7-14 days
20985273925Ferrari RH Outer Front Seat Bracket - 985273925$885.15Special order, ships in 7-14 days
21273926Ferrari LH Outer Front Seat Bracket - 273926$881.17Special order, ships in 7-14 days
21985273926Ferrari LH Outer Front Seat Bracket - 985273926$885.15Special order, ships in 7-14 days
22281637Ferrari RH Rear Seat Outer Extrusion - 281637$979.09Special order, ships in 7-14 days
22985281637Ferrari RH Rear Seat Outer Extrusion - 985281637$983.50Special order, ships in 7-14 days
23281636Ferrari LH Rear Seat Outer Extrusion - 281636$979.09Special order, ships in 7-14 days
23985281636Ferrari LH Rear Seat Outer Extrusion - 985281636$983.50Special order, ships in 7-14 days
24842161Ferrari FRONT RH OUTER BRACKET - 842161Price on requestContact us for price and availability
25856732Ferrari REAR OUTER BRACKET, LH FRONT ZONE - 856732Price on requestContact us for price and availability
26842169Ferrari REAR OUTER BRACKET, RH FRONT ZONE - 842169Price on requestContact us for price and availability
27331143Ferrari Magneride Connector Bracket - 331143$110.61Special order, ships in 7-14 days
28842168Ferrari REAR OUTER BRACKET - 842168Price on requestContact us for price and availability
29842163Ferrari REAR INNER BRACKET - 842163Price on requestContact us for price and availability
30985823443Ferrari Cpl.Montante Ant.Brancardo D - 985823443Price on requestContact us for price and availability
31985823442Ferrari Cpl.Montante Ant.Brancardo S - 985823442$41,476.80Contact us to order
32842733Ferrari RH REAR BRACKET - 842733Price on requestContact us for price and availability
33842729Ferrari FRONT LH UPPER BRACKET - 842729Price on requestContact us for price and availability
34842748Ferrari FRONT RH UPPER BRACKET - 842748Price on requestContact us for price and availability
35842751Ferrari LH REAR BRACKET - 842751Price on requestContact us for price and availability
36842736Ferrari FRONT LH LOWER BRACKET - 842736Price on requestContact us for price and availability
37842735Ferrari FRONT RH LOWER BRACKET - 842735Price on requestContact us for price and availability
38299582Ferrari Screw 10X1.25X40 - 299582$2.82Special order, ships in 7-14 days
39252199Ferrari Threaded Insert - 252199$34.40Special order, ships in 7-14 days
40985842291Ferrari Traliccio Porta Dx Cs Catafo - 985842291$5,298.82Special order, ships in 7-14 days
41985839770Ferrari Traliccio Porta Sx Cs Catafo - 985839770$5,487.65Special order, ships in 7-14 days
42292691Ferrari RH Lower Extrusion RHD - 292691$480.17Special order, ships in 7-14 days
42985292691Ferrari RH Lower Extrusion RHD - 985292691$860.56Special order, ships in 7-14 days
43292692Ferrari LH Lower Extrusion RHD - 292692$480.17Special order, ships in 7-14 days
43985292692Ferrari LH Lower Extrusion RHD - 985292692$786.79Special order, ships in 7-14 days
44985839213Ferrari RH Outer Firewall Endpiece - 985839213$832.22Special order, ships in 7-14 days
45985839212Ferrari LH Outer Firewall Endpiece - 985839212$832.22Special order, ships in 7-14 days
46985842900Ferrari RH Upper Firewall Endpiece - 985842900$587.44Special order, ships in 7-14 days
47985826656Ferrari LH Upper Firewall Endpiece - 985826656$1,150.42Special order, ships in 7-14 days
48985826650Ferrari Compl. Firewall - 985826650$4,732.34Contact us to order
49985823454Ferrari Compl. Valence Panel - 985823454$3,909.42Special order, ships in 7-14 days
50985831171Ferrari External RH B-Pillar Truss - 985831171$465.04Special order, ships in 7-14 days
51985831169Ferrari External LH B-Pillar Truss - 985831169$465.04Special order, ships in 7-14 days
52985842902Ferrari RH Door Trellis Reinforcemen - 985842902$342.66Special order, ships in 7-14 days
53985840040Ferrari LH Door Trellis Reinforcemen - 985840040$342.66Special order, ships in 7-14 days
54839833Ferrari RH FASTENER BRACKET - 839833Price on requestContact us for price and availability
55839832Ferrari LH FASTENER BRACKET - 839832Price on requestContact us for price and availability
56985826758Ferrari RH Lateral Rear Bench Panel - 985826758$930.12Special order, ships in 7-14 days
57985826759Ferrari LH Lateral Rear Bench Panel - 985826759$1,028.04Special order, ships in 7-14 days
58985826769Ferrari RH Wheel Bay Cover - 985826769$1,884.75Special order, ships in 7-14 days
59985826770Ferrari LH Wheel Bay Cover - 985826770$1,884.75Special order, ships in 7-14 days
60985839756Ferrari RH Rear Shelf - 985839756$1,920.19Special order, ships in 7-14 days
61985839680Ferrari LH Rear Shelf - 985839680$1,849.95Special order, ships in 7-14 days
62879664Ferrari RH Outer Lateral Lower Brack - 879664$100.34Special order, ships in 7-14 days
63879645Ferrari LH Outer Lateral Bracket - 879645$100.34Special order, ships in 7-14 days
64985881264Ferrari Lower Bracket For Monoplace - 985881264$342.66Special order, ships in 7-14 days
65839835Ferrari LOWER BRACKET - 839835Price on requestSpecial order, ships in 7-14 days
66850102Ferrari Lower Lateral Bracket - 850102$93.00Special order, ships in 7-14 days
67985835448Ferrari Estruso Rinf.Panchetta Cs Ca - 985835448$5,718.44Special order, ships in 7-14 days
68985823481Ferrari Rollbar Cross-Member - 985823481$5,375.76Special order, ships in 7-14 days
69277723Ferrari Screw 10x55 - 277723$12.21Special order, ships in 7-14 days
70246430Ferrari SCREW - 246430Price on requestContact us for price and availability
7112642524Ferrari Washer - 12642524$0.40Available, ships in 3-6 days
7215971334Ferrari Screw - 15971334$2.82Available, ships in 3-6 days
7311198374Ferrari Washer - 11198374$0.46Special order, ships in 7-14 days
7411306934Ferrari Screw M10 x 1.25 x 30 - 11306934$1.04Available, ships in 3-6 days
75252200Ferrari Threaded Insert - 252200$18.32Special order, ships in 7-14 days
77985823463Ferrari RH A-Pillar Truss - 985823463$807.74Special order, ships in 7-14 days
78985823462Ferrari LH A-Pillar Truss - 985823462$807.74Special order, ships in 7-14 days
