Ferrari Monza SP2 — [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL (diagram 0098)

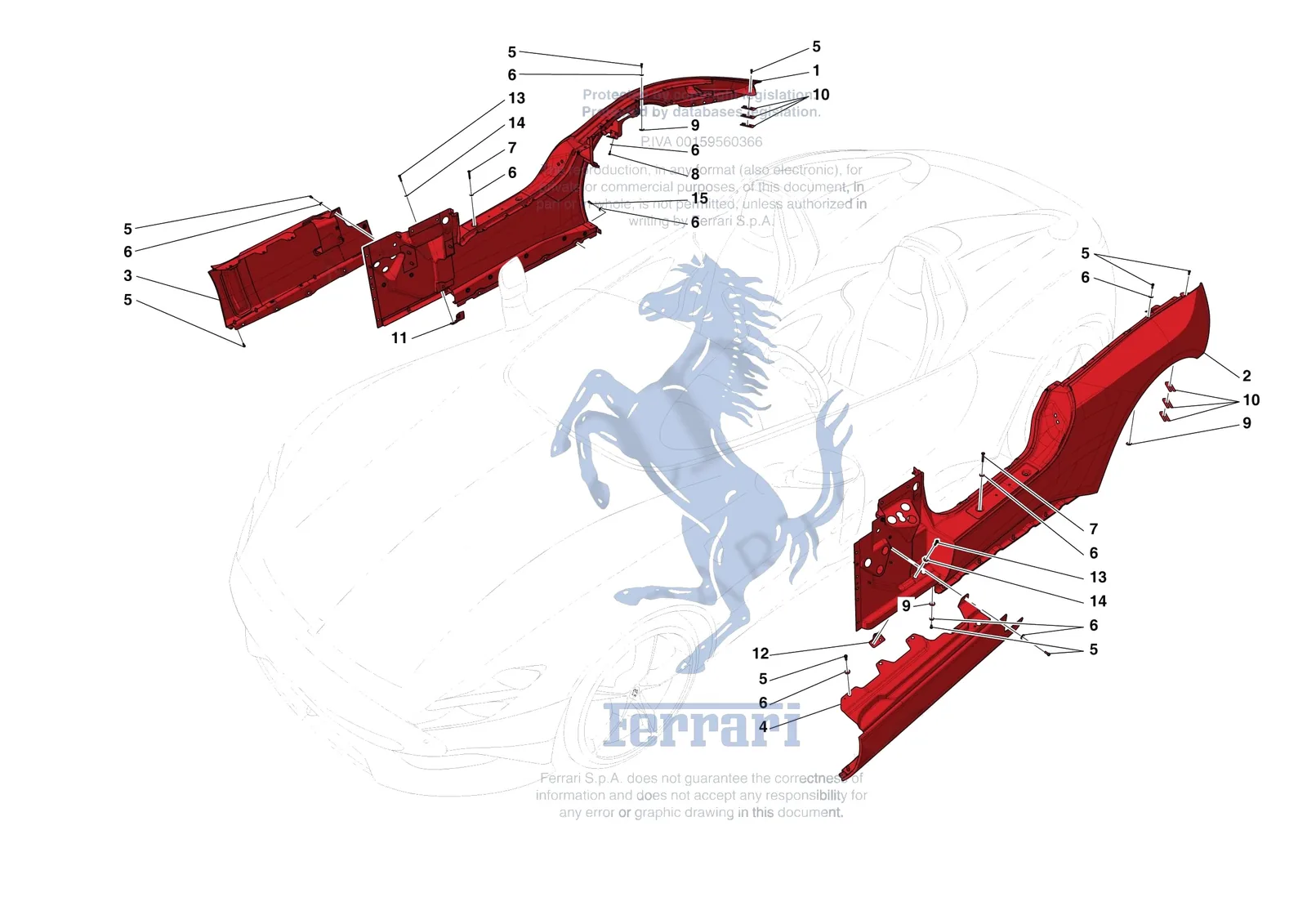

Exploded view of the [vehicle trim] - e.2 - lateral outer bodyshell on the Ferrari Monza SP2, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985880903 | Ferrari Compl. RH Rear Flank - 985880903 | $31,159.44 | Contact us to order |
| 2 | 985880897 | Ferrari Compl. LH Rear Flank - 985880897 | $27,513.68 | Contact us to order |
| 3 | 881623 | Ferrari Compl. RH Front Fender - 881623 | $8,156.11 | Contact us to order |
| 4 | 881621 | Ferrari Compl. LH Front Fender - 881621 | $8,156.11 | Contact us to order |
| 5 | 13027087 | Ferrari Screw - 13027087 | $1.25 | Special order, ships in 7-14 days |
| 6 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 7 | 85679100 | Ferrari Screw - 85679100 | $15.49 | Special order, ships in 7-14 days |
| 8 | 917338 | Ferrari Screw - 917338 | $1.44 | Special order, ships in 7-14 days |
| 9 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 10 | 85471300 | Ferrari Lid Hinge Adjuster Shim - 85471300 | $44.29 | Special order, ships in 7-14 days |
| 11 | 865377 | Ferrari Compl. RH Door Swing Stop Mo - 865377 | $56.27 | Special order, ships in 7-14 days |
| 12 | 865333 | Ferrari Compl. LH Door Swing Stop Mo - 865333 | $56.27 | Special order, ships in 7-14 days |
| 13 | 14305434 | Ferrari Screw M6 x 25 - 14305434 | $0.50 | Available, ships in 3-6 days |
| 14 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 15 | 14305524 | Ferrari Allen Screw M6 x 30 - 14305524 | $0.27 | Available, ships in 3-6 days |
