Ferrari Monza SP2 — [VEHICLE TRIM] - E.12 - ROLLBAR (diagram 0108)

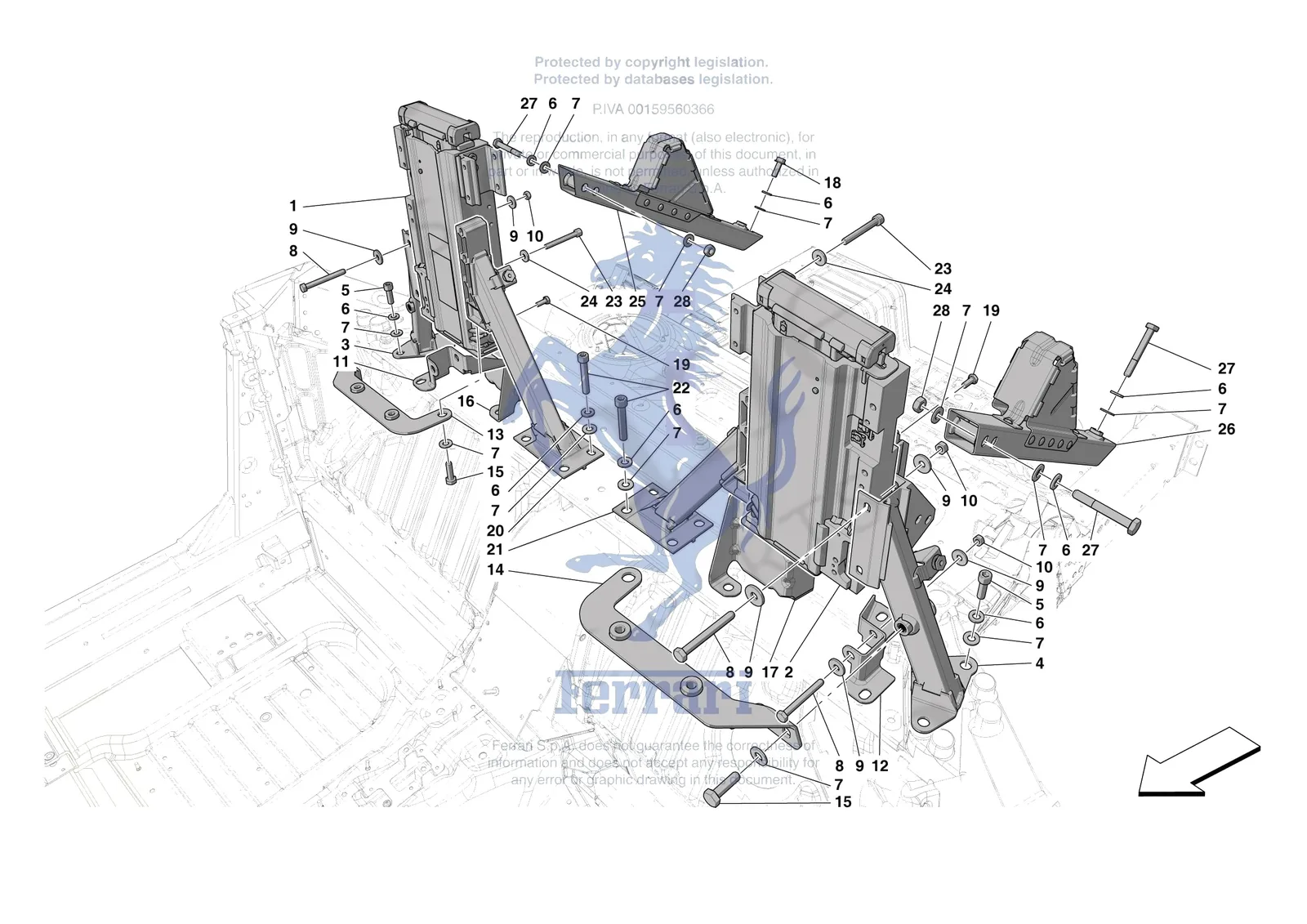

Exploded view of the [vehicle trim] - e.12 - rollbar on the Ferrari Monza SP2, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [VEHICLE TRIM] - E.12 - ROLLBAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0108.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16043430 | Ferrari Bolt - 16043430 | Superseded | Order 16043434 instead | |
| 16043431 | Ferrari Screw - 16043431 | Superseded | Order 16043434 instead | |
| 16044724 | Ferrari Screw - 16044724 | $6.32 | Special order, ships in 7-14 days | |
| 1 | 787473 | Ferrari RH Roll Bar - 787473 | $5,520.29 | Special order, ships in 7-14 days |
| 1 | 828379 | Ferrari RH Roll Bar - 828379 | $5,352.45 | Special order, ships in 7-14 days |
| 2 | 787472 | Ferrari LH Roll Bar - 787472 | $5,520.29 | Special order, ships in 7-14 days |
| 2 | 828378 | Ferrari LH Roll Bar - 828378 | $5,352.45 | Special order, ships in 7-14 days |
| 3 | 849379 | Ferrari Outer Mount For RH Roll Bar - 849379 | $881.17 | Special order, ships in 7-14 days |
| 4 | 843915 | Ferrari Outer Mount For LH Roll Bar - 843915 | $881.17 | Special order, ships in 7-14 days |
| 5 | 14307534 | Ferrari Screw M10 x 1.25 x 30 TCEI - 14307534 | $5.65 | Available, ships in 3-6 days |
| 6 | 11198374 | Ferrari Washer - 11198374 | $0.46 | Special order, ships in 7-14 days |
| 7 | 12642524 | Ferrari Washer - 12642524 | $0.40 | Available, ships in 3-6 days |
| 8 | 15213924 | Ferrari Screw - 15213924 | Superseded | Order 16044724 instead |
| 9 | 124338 | Ferrari Washer D. 8 - 25 x 3 - 124338 | $14.55 | Available, ships in 3-6 days |
| 9 | 219344 | Ferrari Washer D8.5x24x - 219344 | Superseded | Order 124338 instead |
| 10 | 301583 | Ferrari Nut - 301583 | $0.38 | Special order, ships in 7-14 days |
| 11 | 831176 | Ferrari RH Front Fastener Bracket Fo - 831176 | $119.91 | Special order, ships in 7-14 days |
| 12 | 831175 | Ferrari LH Front Fastener Bracket Fo - 831175 | $119.91 | Special order, ships in 7-14 days |
| 13 | 849332 | Ferrari Compl. RH Seat Belt Mounting - 849332 | $112.57 | Special order, ships in 7-14 days |
| 14 | 849340 | Ferrari Compl. LH Seat Belt Mounting - 849340 | $269.23 | Special order, ships in 7-14 days |
| 15 | 15970934 | Ferrari Screw TE M10 x 1.25 x 35 - 15970934 | $3.24 | Available, ships in 3-6 days |
| 16 | 848335 | Ferrari RH Rear Roll Bar Bracket - 848335 | $112.57 | Special order, ships in 7-14 days |
| 17 | 848332 | Ferrari Rear Bracket For LH Roll Bar - 848332 | $112.57 | Special order, ships in 7-14 days |
| 18 | 68984500 | Ferrari Screw TEF M10 x 1.25 x 30 - 68984500 | $5.86 | Available, ships in 3-6 days |
| 19 | 16043434 | Ferrari Screw M8 x 20 - 16043434 | $0.40 | Available, ships in 3-6 days |
| 20 | 852276 | Ferrari RH Roll Bar Mounting Extrusi - 852276 | $709.82 | Special order, ships in 7-14 days |
| 21 | 843913 | Ferrari LH Roll Bar Mounting Extrusi - 843913 | $709.82 | Special order, ships in 7-14 days |
| 22 | 14308134 | Ferrari Screw - 14308134 | $5.65 | Special order, ships in 7-14 days |
| 23 | 904672 | Ferrari Screw - 904672 | $16.73 | Special order, ships in 7-14 days |
| 24 | 910700 | Ferrari Washer - 910700 | $6.94 | Special order, ships in 7-14 days |
| 25 | 860490 | Ferrari Rear Extruded Mount For RH R - 860490 | $660.87 | Special order, ships in 7-14 days |
| 26 | 844199 | Ferrari Rear Extruded Mount For LH R - 844199 | $660.87 | Special order, ships in 7-14 days |
| 27 | 15971334 | Ferrari Screw - 15971334 | $2.82 | Available, ships in 3-6 days |
| 28 | 133988 | Ferrari Plain Nut M10 x 1.25 x 8 - 133988 | $0.38 | Available, ships in 3-6 days |
