Ferrari Monza SP2 — [VEHICLE TRIM] - E.15 - CENTRE SHIELDS (diagram 0114)

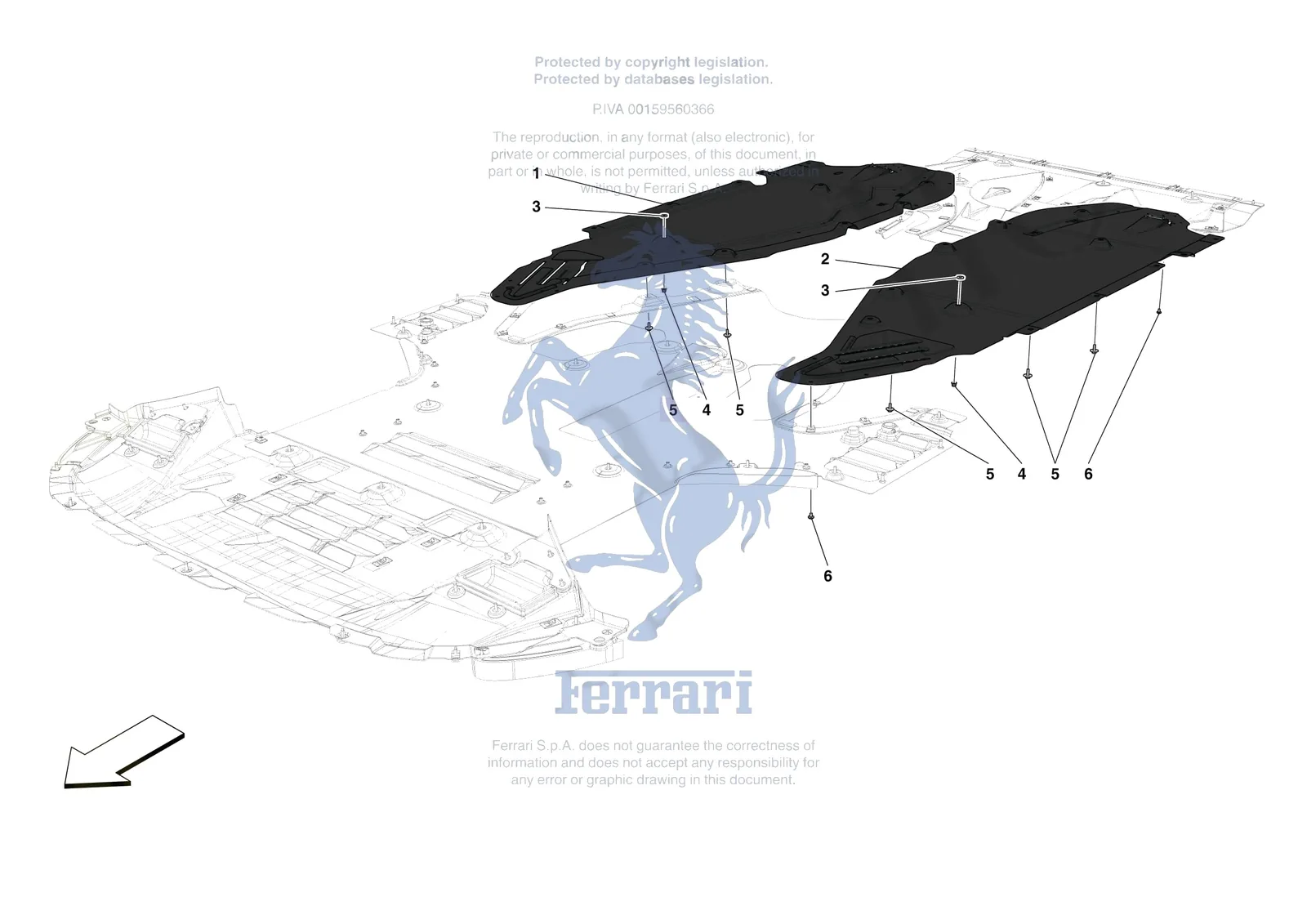

Exploded view of the [vehicle trim] - e.15 - centre shields on the Ferrari Monza SP2, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [VEHICLE TRIM] - E.15 - CENTRE SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0114.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 88084100 | Ferrari Compl. RH Centre Flat Undert - 88084100 | $491.74 | Special order, ships in 7-14 days |
| 2 | 88084000 | Ferrari Compl. LH Centre Flat Undertray - 88084000 | $491.74 | Special order, ships in 7-14 days |
| 3 | 10523424 | Ferrari Washer D 6.15-18x2 - 10523424 | $0.92 | Available, ships in 3-6 days |
| 4 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 5 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 6 | 85478900 | Ferrari SCREW - 85478900 | $2.13 | Available, ships in 3-6 days |
