Ferrari Monza SP2 — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0119)

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari Monza SP2, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

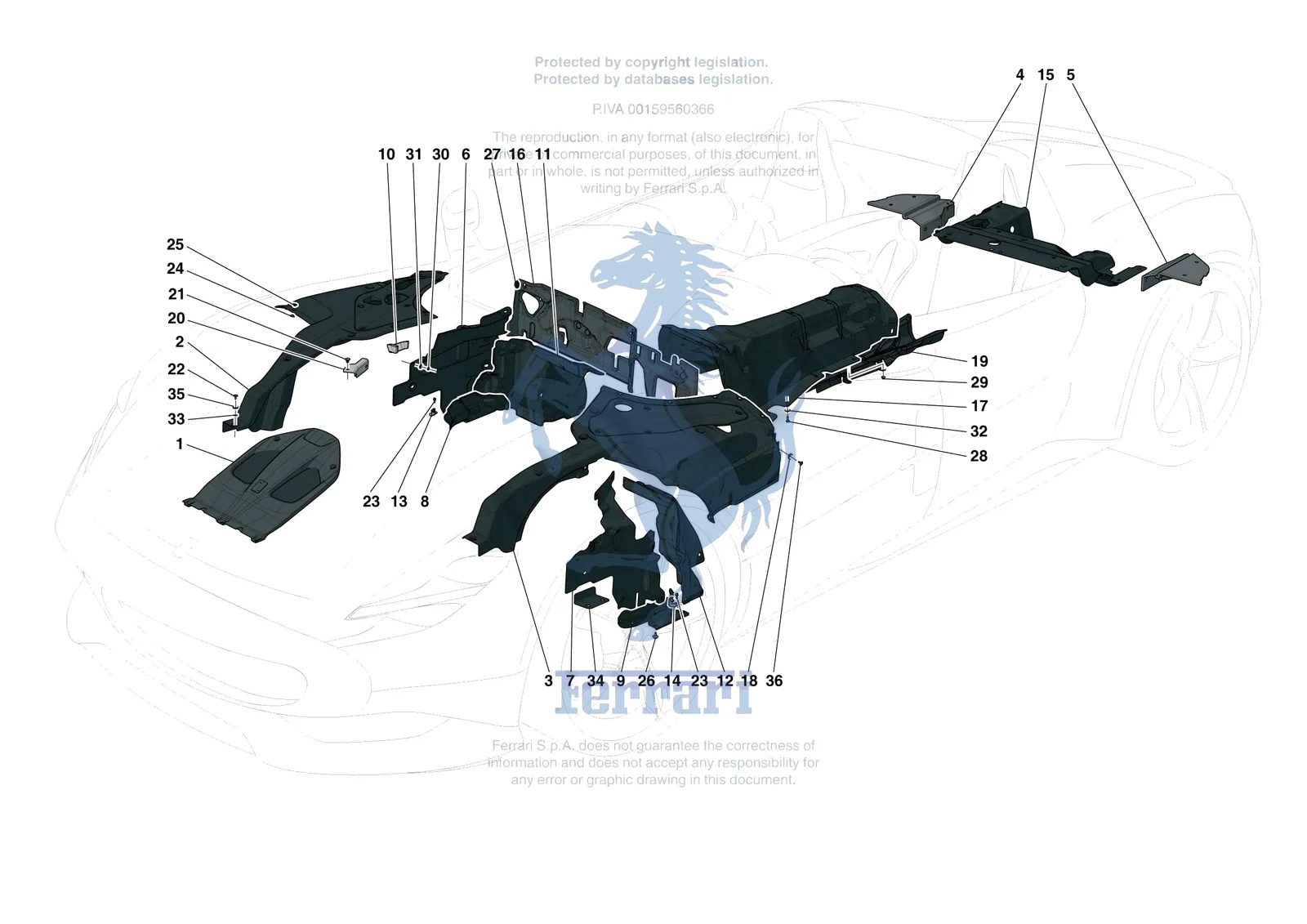

Ferrari Monza SP2 [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
85676400Ferrari Upper Firewall Insulation LHD - 85676400$237.40Special order, ships in 7-14 days
87366500Ferrari Upper Firewall Insulation LHD - 87366500$237.40Special order, ships in 7-14 days
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1849230Ferrari Compl. Central Engine Compartment Cover - 849230$6,543.70Special order, ships in 7-14 days
1861194Ferrari Compl. Central Engine Compartment Cover - 861194$6,543.70Special order, ships in 7-14 days
2852398Ferrari Compl. RH Lateral RH Engine Compartment Cover - 852398$12,833.31Special order, ships in 7-14 days
2861217Ferrari Compl. RH Lateral RH Engine Compartment Cover - 861217$12,833.31Special order, ships in 7-14 days
3852405Ferrari Compl. LH Lateral Engine Compartment Cover - 852405$12,833.31Special order, ships in 7-14 days
3861232Ferrari Compl. LH Lateral Engine Compartment Cover - 861232$12,833.31Special order, ships in 7-14 days
4827862Ferrari Riparo Calore Silenziatore D - 827862$293.71Special order, ships in 7-14 days
5827865Ferrari Riparo Calore Silenziatore S - 827865$293.71Special order, ships in 7-14 days
688703400Ferrari Upper RH Manifold Heat Shiel - 88703400$211.43Special order, ships in 7-14 days
788703300Ferrari LH Manifold Upper Heat Shiel - 88703300$295.03Special order, ships in 7-14 days
888703700Ferrari RH Bodywork Rear Heat Shield - 88703700$88.49Special order, ships in 7-14 days
988703600Ferrari LH Bodywork Rear Heat Shield - 88703600$88.49Special order, ships in 7-14 days
10909955Ferrari Guarnizione Copertura Lat Va - 909955Price on requestContact us for price and availability
1188703200Ferrari RH Catalytic Converter Heat - 88703200$344.21Special order, ships in 7-14 days
1288703100Ferrari LH Catalytic Converter Heat - 88703100$344.21Special order, ships in 7-14 days
1388495000Ferrari Central Fastener Bracket For - 88495000$31.93Special order, ships in 7-14 days
1488495100Ferrari Central Fastener Bracket For - 88495100$31.93Special order, ships in 7-14 days
1588463500Ferrari Services Tub Heat Shield - 88463500$442.56Special order, ships in 7-14 days
1687742200Ferrari Upper Firewall Insulation LHD - 87742200$226.19Special order, ships in 7-14 days
1785676300Ferrari Tunnel Heat Shield Complete - 85676300$1,327.73Special order, ships in 7-14 days
18219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
19299593Ferrari Transmission Shaft Heat Shield - 299593$344.21Special order, ships in 7-14 days
20295058Ferrari Angular Shield - 295058$39.31Special order, ships in 7-14 days
21296823Ferrari Button - 296823$0.27Special order, ships in 7-14 days
22256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
23231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
2484247400Ferrari Female Clip - 84247400$2.59Available, ships in 3-6 days
2584247300Ferrari Male Clip - 84247300$2.82Available, ships in 3-6 days
2681290900Ferrari Screw With Double Washer - 81290900$1.42In stock
2767315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
2866091000Ferrari Trim Screw - 66091000$5.63In stock
2914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
2915896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
3013046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
3112643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
3211193974Ferrari Washer - 11193974$0.13Available, ships in 3-6 days
3212642078Ferrari Washer - 12642078$1.88Available, ships in 3-6 days
3312646778Ferrari Washer - 12646778$0.89In stock
3313579478Ferrari Washer 8X16 - 13579478$1.36Special order, ships in 7-14 days
34922547Ferrari LH Gpf Pipe Heat Shield - 922547$34.25Special order, ships in 7-14 days
34922548Ferrari RH Gpf Pipe Heat Shield - 922548$34.25Special order, ships in 7-14 days
35263276Ferrari Washer - 263276$0.33Available, ships in 3-6 days
3685824800Ferrari Screw - 85824800$56.52Special order, ships in 7-14 days

All Monza SP2 diagrams
