Ferrari Monza SP2 — [VEHICLE TRIM] - E.33 - FRONT LID TRIM (diagram 0134)

Exploded view of the [vehicle trim] - e.33 - front lid trim on the Ferrari Monza SP2, with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

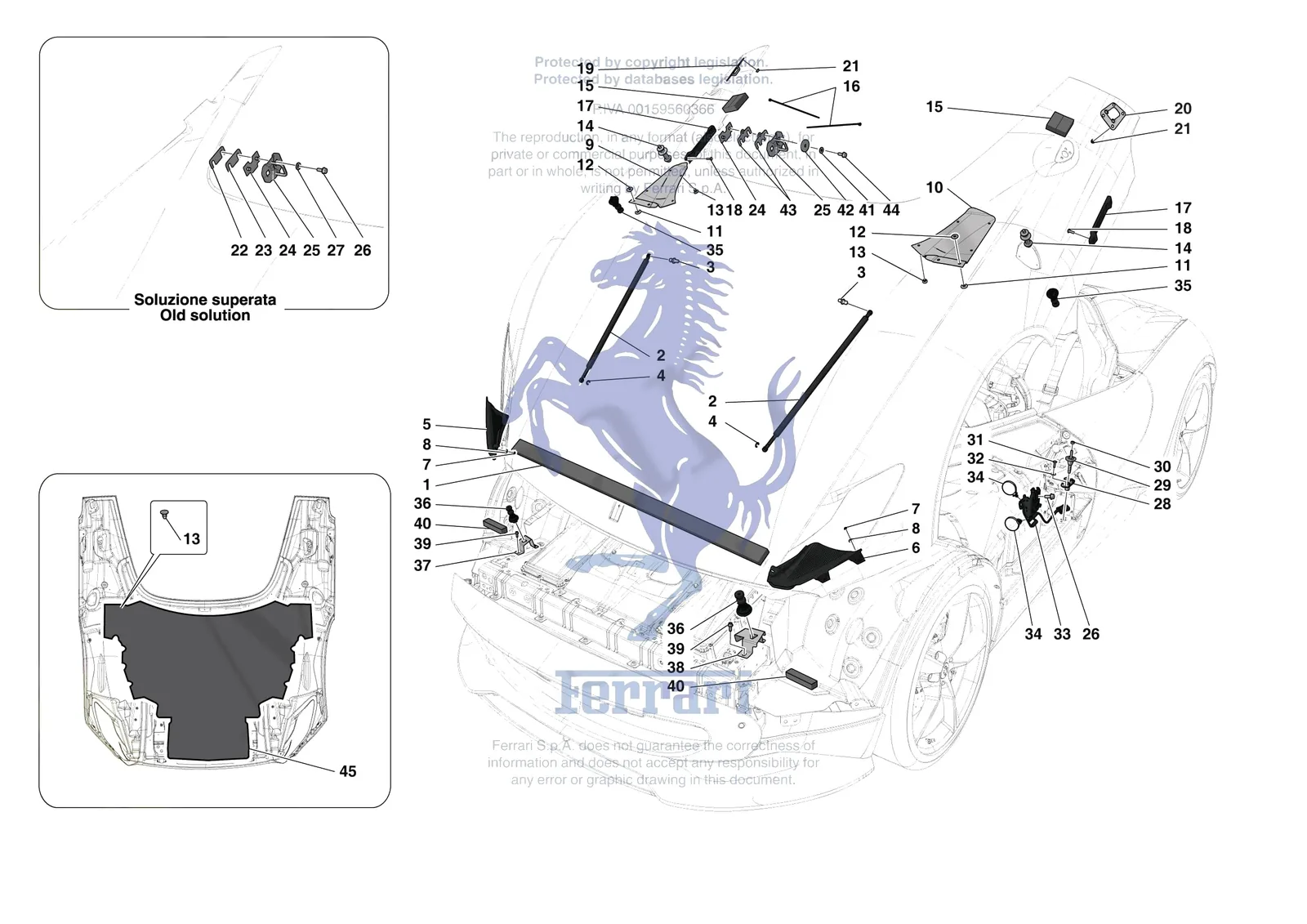

Ferrari Monza SP2 [VEHICLE TRIM] - E.33 - FRONT LID TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
63402800Ferrari Ball Pin - 63402800SupersededOrder 85216400 instead
69205900Ferrari Ball Pin - 69205900SupersededOrder 85216400 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
64577200Ferrari Pin - 64577200SupersededOrder 85216400 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1900846Ferrari Guarnizione Antivibrante Tra - 900846$97.88Special order, ships in 7-14 days
2867934Ferrari Gas Strut - 867934$174.03Special order, ships in 7-14 days
2967277Ferrari Gas Strut - 967277$174.03Special order, ships in 7-14 days
365939900Ferrari Pin - 65939900SupersededOrder 85216400 instead
385216400Ferrari Pin - 85216400$2.98In stock
416160976Ferrari Circlip - 16160976$0.17Special order, ships in 7-14 days
5830629Ferrari Mostrina Cofango Proiettore - 830629$129.70Special order, ships in 7-14 days
6830630Ferrari Mostrina Cofango Proiettore - 830630$129.70Special order, ships in 7-14 days
7113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
812638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
9891191Ferrari RH Under-Lid Insulation Comp - 891191$127.27Special order, ships in 7-14 days
10891192Ferrari LH Under-Lid Insulation Comp - 891192$127.27Special order, ships in 7-14 days
1184247300Ferrari Male Clip - 84247300$2.82Available, ships in 3-6 days
1284247400Ferrari Female Clip - 84247400$2.59Available, ships in 3-6 days
1314591687Ferrari Fixing Button - 14591687$0.13Available, ships in 3-6 days
14911039Ferrari Front Lid Crash Pin - 911039$183.56Special order, ships in 7-14 days
15927036Ferrari Lid Vibration Damper Seal - 927036$13.90Special order, ships in 7-14 days
16145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
17899809Ferrari Lateral Lid Handle - 899809$44.03Special order, ships in 7-14 days
1865377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
1864830600Ferrari Screw M6 x 22 TBEI - 64830600$3.26Available, ships in 3-6 days
19878266Ferrari Gancio Di Sicurezza Per Port - 878266$115.02Special order, ships in 7-14 days
20878220Ferrari Gancio Di Sicurezza Per Port - 878220$115.02Special order, ships in 7-14 days
2114059290Ferrari Flanged Nut M6 - 14059290$2.82Available, ships in 3-6 days
2284147600Ferrari Shim 0.5mm - 84147600$6.10Special order, ships in 7-14 days
2384147200Ferrari Shim 1.0mm - 84147200$6.10Special order, ships in 7-14 days
24890713Ferrari Lid Striker Plate Film - 890713$16.73Special order, ships in 7-14 days
25881231Ferrari Scontrino Cofano Anteriore - 881231$783.26Contact us to order
2616287124Ferrari Flanged Bolt - 16287124$2.38Available, ships in 3-6 days
2712646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
2885750300Ferrari Locator - 85750300$31.99Special order, ships in 7-14 days
2985835000Ferrari Plug - 85835000$174.80Special order, ships in 7-14 days
3010725977Ferrari Nut - 10725977$16.83Special order, ships in 7-14 days
3185833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
3185797200Ferrari Screw M5 x 18 TBEI - 85797200$1.15Available, ships in 3-6 days
3214447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
3384076100Ferrari Engine Compartment Lid Lock - 84076100$216.66Special order, ships in 7-14 days
34217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
35856582Ferrari Spacer Block - 856582$125.37Available, ships in 3-6 days
36849815Ferrari Anti Vibration Damper - 849815$51.62Available, ships in 3-6 days
37897517Ferrari Front RH Buffer Bracket - 897517$31.80Special order, ships in 7-14 days
38897516Ferrari Front LH Buffer Bracket - 897516$31.80Special order, ships in 7-14 days
3911568027Ferrari Screw 6x18 - 11568027$3.03Available, ships in 3-6 days
40900850Ferrari Guarnizione Antivibrante Pas - 900850$4.54Special order, ships in 7-14 days
41952842Ferrari Flat Washer D. 8.15-25X - 952842$0.92Special order, ships in 7-14 days
4112646778Ferrari Washer - 12646778$0.89In stock
42894634Ferrari Washer - 894634$0.86Special order, ships in 7-14 days
4381905000Ferrari Shim 1mm - 81905000$6.98Special order, ships in 7-14 days
44893581Ferrari Screw M8 x 25 - 893581$1.48Special order, ships in 7-14 days
45827478Ferrari Isolamento Sottocofano - 827478$440.56Special order, ships in 7-14 days

All Monza SP2 diagrams
