Ferrari Monza SP2 — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari Monza SP2, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

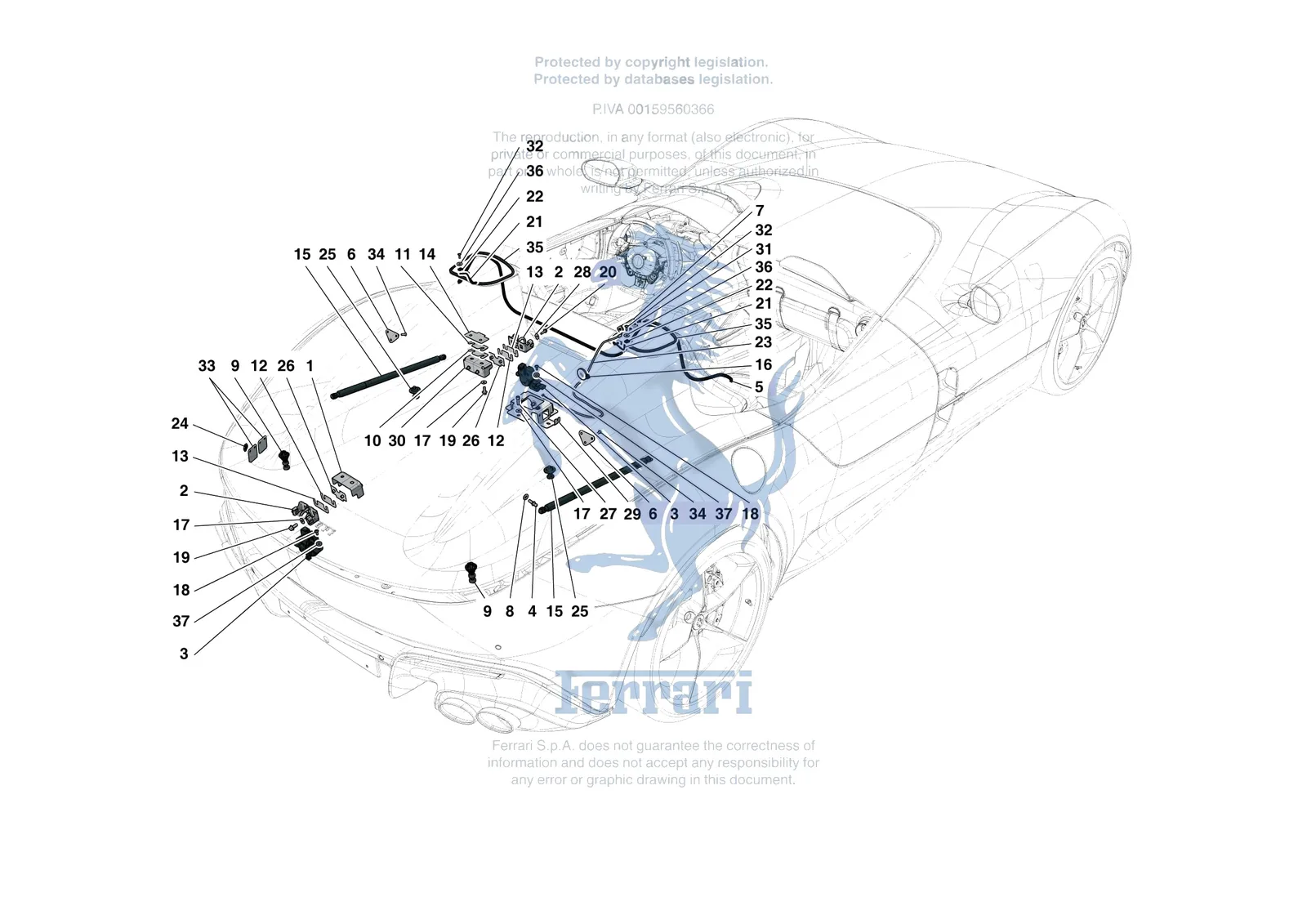

Ferrari Monza SP2 [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
13028774Ferrari Screw - 13028774SupersededOrder 14306474 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
12647729Ferrari Washer 6.45-21X - 12647729$0.13Special order, ships in 7-14 days
1861613Ferrari Complete Lock Striker Bracket - 861613$90.54Special order, ships in 7-14 days
282209700Ferrari Lock Striker - 82209700$41.76Special order, ships in 7-14 days
384922700Ferrari Electric Lock With Lever And Memory - 84922700$177.00Special order, ships in 7-14 days
467251200Ferrari Pin - 67251200$4.56Special order, ships in 7-14 days
5837852Ferrari Guarnizione Antipolver Bipos - 837852$182.73Special order, ships in 7-14 days
681916400Ferrari Door Safety Hook - 81916400$70.18Available, ships in 3-6 days
7899481Ferrari Complete Bowden Cable Fastener Bracket - 899481$66.07Special order, ships in 7-14 days
812646778Ferrari Washer - 12646778$0.89In stock
9856582Ferrari Spacer Block - 856582$125.37Available, ships in 3-6 days
1084807100Ferrari Spacer 1.0mm - 84807100$8.82Available, ships in 3-6 days
1184807000Ferrari Spacer 0.5mm - 84807000$8.82Available, ships in 3-6 days
1284147200Ferrari Shim 1.0mm - 84147200$6.10Special order, ships in 7-14 days
1384147600Ferrari Shim 0.5mm - 84147600$6.10Special order, ships in 7-14 days
14896418Ferrari Lid Striker Plate Film - 896418$45.67Special order, ships in 7-14 days
15831286Ferrari Gas Strut - 831286$119.64Special order, ships in 7-14 days
16217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
1712646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
1865864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
1886276300Ferrari SCREW - 86276300$7.84Special order, ships in 7-14 days
1916287127Ferrari Screw 8x20 - 16287127$0.92Special order, ships in 7-14 days
2016286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
21843593Ferrari Cable - 843593$70.95Special order, ships in 7-14 days
2267278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
23899821Ferrari Cavo Bowden Cofano Post Serr - 899821$129.70Special order, ships in 7-14 days
2467315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
25922731Ferrari Rear Lid Striker Loop - 922731$188.45Special order, ships in 7-14 days
26890713Ferrari Lid Striker Plate Film - 890713$16.73Special order, ships in 7-14 days
2714306474Ferrari Screw - 14306474$0.82Special order, ships in 7-14 days
2812647727Ferrari Washer 6X21 - 12647727$0.12Special order, ships in 7-14 days
29895899Ferrari Bootlid Front Lock Mounting Bracket - 895899$173.76Special order, ships in 7-14 days
30895817Ferrari Front Lock Striker Bracket - 895817$100.34Special order, ships in 7-14 days
3186876400Ferrari Screw M4 x 14 TBEI - 86876400$15.49Special order, ships in 7-14 days
3285833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
3385533700Ferrari Front Firewall Ventilation Flap - 85533700$4.35Special order, ships in 7-14 days
3484056100Ferrari Screw - 84056100$3.03Special order, ships in 7-14 days
35920822Ferrari LH Roll Bar Flap Seal - 920822$7.38Special order, ships in 7-14 days
3612638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
3712644478Ferrari Washer D. 6.45 - 15 x 1 - 12644478SupersededOrder 85882600 instead
