Ferrari Monza SP2 — [VEHICLE TRIM] - E.40 - FRONT BUMPER (diagram 0141)

Exploded view of the [vehicle trim] - e.40 - front bumper on the Ferrari Monza SP2, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

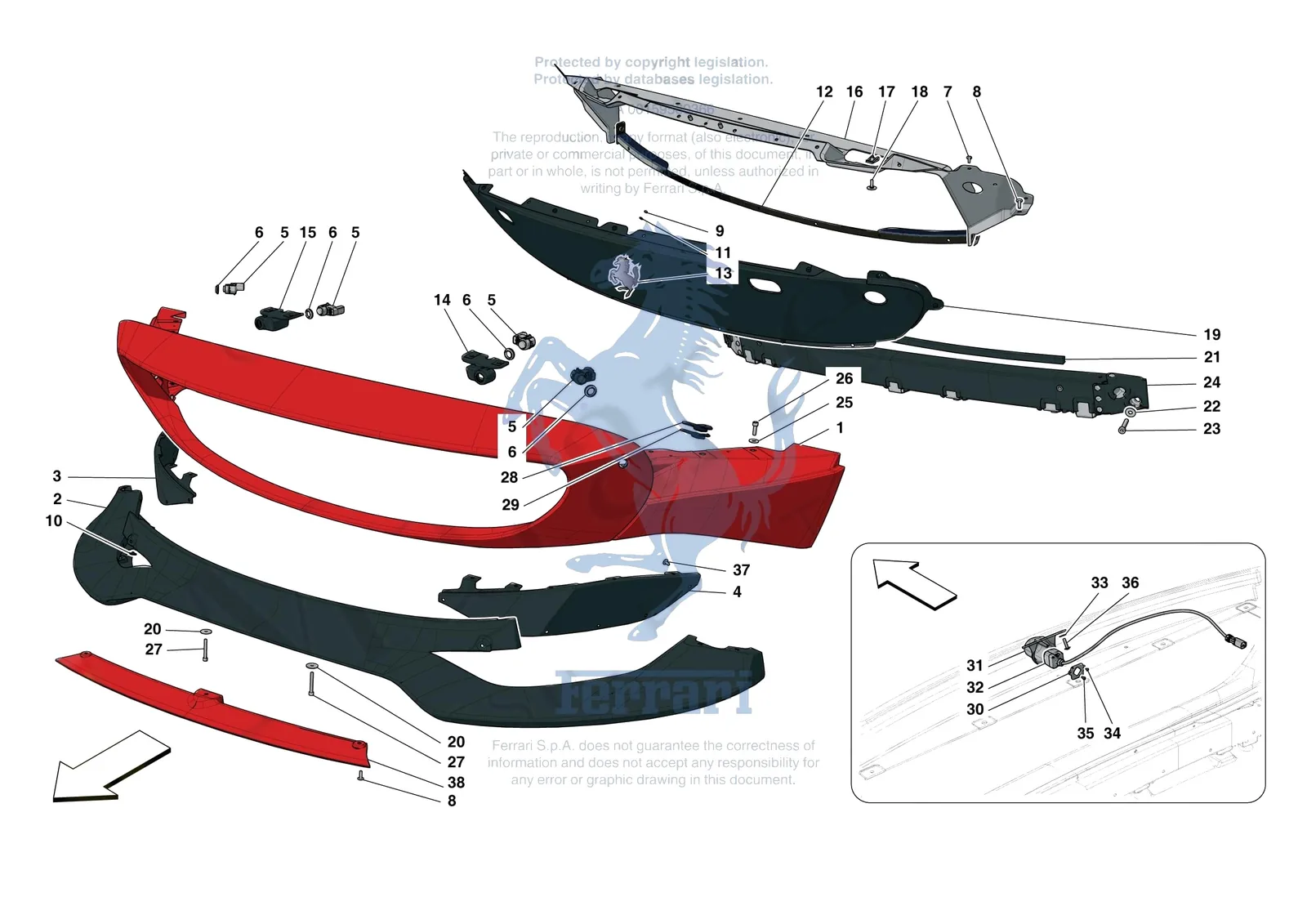

Ferrari Monza SP2 [VEHICLE TRIM] - E.40 - FRONT BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
253-44-302-02Ferrari Horse Motif - 253-44-302-02SupersededOrder 60032109 instead
83203000Ferrari Horse Motif - 83203000SupersededOrder 60032109 instead
85658300Ferrari Horse Motif - 85658300SupersededOrder 60032109 instead
85675300Ferrari Screw - 85675300SupersededOrder 14305387 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1985891982Ferrari Front Bumper Structure - 985891982$32,105.43Contact us to order
2879808Ferrari Compl. Splitter - 879808$13,250.59Contact us to order
2883463Ferrari Compl. Splitter - 883463$11,569.78Contact us to order
3879311Ferrari RH Lateral Grille - 879311$326.35Special order, ships in 7-14 days
4879308Ferrari LH Lateral Grille - 879308$326.35Special order, ships in 7-14 days
5295361Ferrari Parking Sensor - 295361$80.91In stock
681544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
783750200Ferrari Screw M4x10 - 83750200$1.94Available, ships in 3-6 days
885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
916101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
1062764200Ferrari Spire Clip - 62764200$0.82Available, ships in 3-6 days
1112639901Ferrari Washer - 12639901$0.17Available, ships in 3-6 days
12880594Ferrari Inner Reinforcement Plate Fo - 880594$212.92Special order, ships in 7-14 days
1360032109Ferrari Emblem - 60032109$103.53In stock
1489142000Ferrari RH Centre Sensor Mount - 89142000$44.29Special order, ships in 7-14 days
1589141900Ferrari LH Centre Sensor Mount - 89141900$44.29Special order, ships in 7-14 days
16842603Ferrari Compl. Inner Reinforcement F - 842603$2,890.68Special order, ships in 7-14 days
1784583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
18256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
19856945Ferrari Centre Grille - 856945$1,240.18Special order, ships in 7-14 days
19827787Ferrari Griglia Centrale Opt Tel - 827787$1,327.21Special order, ships in 7-14 days
2012640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
21856604Ferrari Engine Air Duct Seal - 856604$14.55Special order, ships in 7-14 days
2212646727Ferrari Washer D. 8.45 X 20 X 2 - 12646727$0.40Available, ships in 3-6 days
2385635700Ferrari SCREW - 85635700$3.47Available, ships in 3-6 days
24836888Ferrari Complete Lower Front Crossmember - 836888$1,125.95Special order, ships in 7-14 days
2512643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
2614305387Ferrari Screw - 14305387$1.04Special order, ships in 7-14 days
27213129Ferrari Screw 6x45 - 213129$1.36Available, ships in 3-6 days
28918899Ferrari Shim - 918899$13.01Special order, ships in 7-14 days
29918906Ferrari Shim - 918906$13.01Special order, ships in 7-14 days
3087448400Ferrari Front Camera Bracket - 87448400$34.25Special order, ships in 7-14 days
31828694Ferrari Cover Camera - 828694$39.14Special order, ships in 7-14 days
32839869Ferrari Fdcam Telec. Digit. Anterior - 839869$2,471.06Special order, ships in 7-14 days
3312638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
3415900270Ferrari Trim Screw - 15900270$0.27Available, ships in 3-6 days
3514417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
3685692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
3786705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
38985827781Ferrari Compl. Centre Part Of Splitt - 985827781$7,152.14Special order, ships in 7-14 days
