Ferrari Monza SP2 — [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM (diagram 0148)
Exploded view of the [vehicle trim] - e.46 - internal bulkhead wall trim on the Ferrari Monza SP2, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

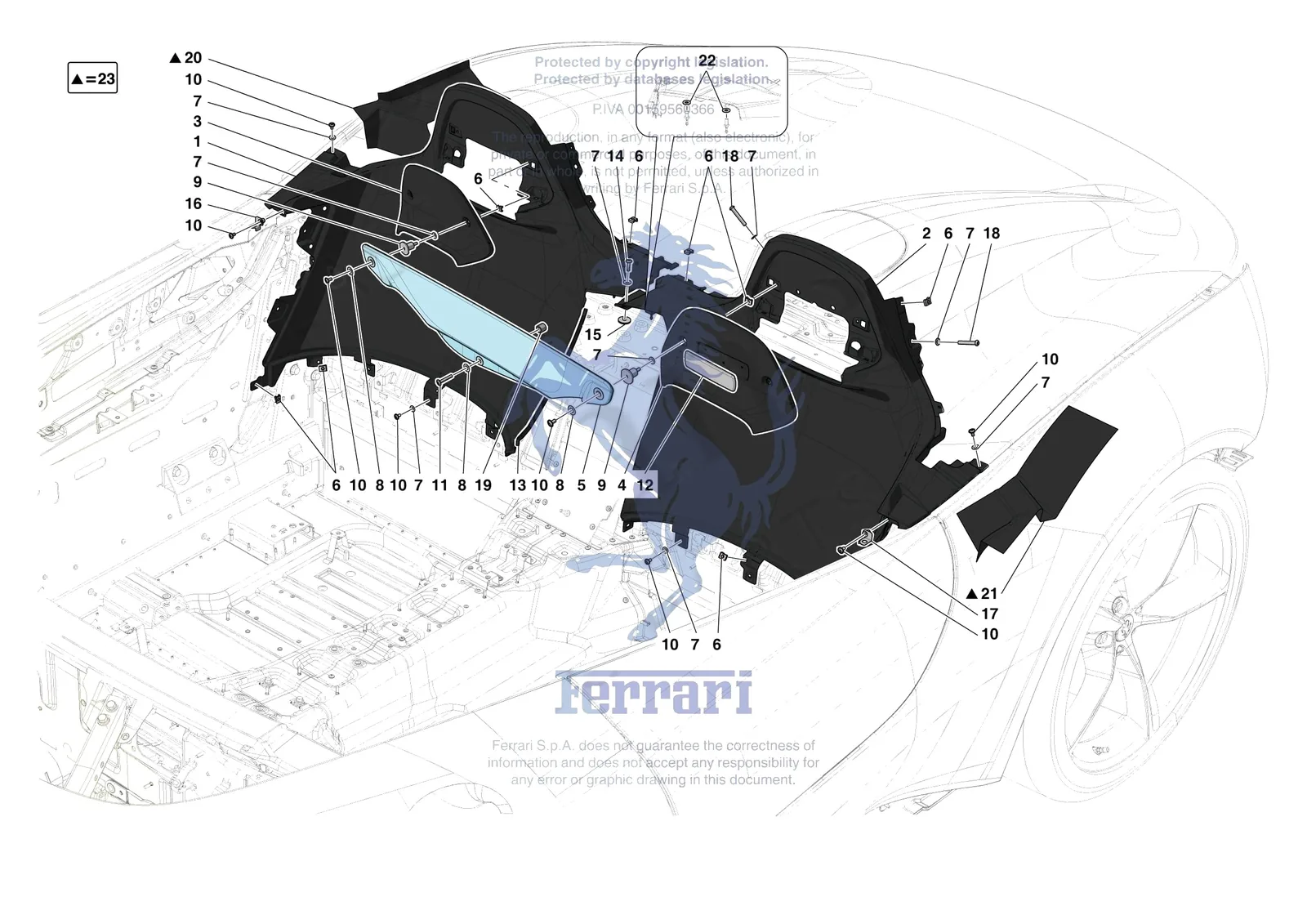

![Ferrari Monza SP2 [VEHICLE TRIM] - E.46 - INTERNAL BULKHEAD WALL TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0148.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 192623 | Ferrari Screw - 192623 | $5.40 | Special order, ships in 7-14 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 86211600 | Ferrari Washer - 86211600 | Superseded | Order 65545900 instead | |
| 1 | 881758 | Ferrari Ricoprimento Dietro Schienal - 881758 | $13,444.08 | Contact us to order |
| 2 | 881760 | Ferrari Driver Side Rear Bulkhead Tr - 881760 | $13,444.08 | Contact us to order |
| 3 | 881813 | Ferrari Compl. Passenger Side Seat B - 881813 | $4,107.58 | Special order, ships in 7-14 days |
| 4 | 895895 | Ferrari Compl. Driver Side Seat Belt - 895895 | $4,107.58 | Special order, ships in 7-14 days |
| 5 | 873927 | Ferrari Wind Stop Cpl - 873927 | $3,515.44 | Special order, ships in 7-14 days |
| 6 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 7 | 65545900 | Ferrari Black Plastic Washer - 65545900 | $6.32 | Special order, ships in 7-14 days |
| 7 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 7 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 8 | 61148700 | Ferrari WASHER - 61148700 | Superseded | Order 12643724 instead |
| 8 | 13579478 | Ferrari Washer 8X16 - 13579478 | $1.36 | Special order, ships in 7-14 days |
| 8 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 9 | 873925 | Ferrari Bushing M5 x 33 - 873925 | $69.59 | Special order, ships in 7-14 days |
| 10 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 10 | 86705000 | Ferrari Screw M5x10 TBFTX - 86705000 | $1.36 | Special order, ships in 7-14 days |
| 11 | 85834100 | Ferrari Screw M5 x 30 TBFTX - 85834100 | $0.79 | Special order, ships in 7-14 days |
| 11 | 88831000 | Ferrari Screw M5 x 40 - 88831000 | $1.05 | Special order, ships in 7-14 days |
| 12 | 885977 | Ferrari Dedication Plaque - 885977 | $1,150.42 | Special order, ships in 7-14 days |
| 12 | 897448 | Ferrari Dedication Plaque - 897448 | $709.82 | Special order, ships in 7-14 days |
| 12 | 921850 | Ferrari Dedication Plaque - 921850 | $979.09 | Special order, ships in 7-14 days |
| 13 | 898651 | Ferrari Guarnizione Lato Passeggero - 898651 | $20.64 | Special order, ships in 7-14 days |
| 14 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 15 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 16 | 839837 | Ferrari RH Upper External Bracket - 839837 | $46.48 | Special order, ships in 7-14 days |
| 17 | 833999 | Ferrari LH Upper External Bracket - 833999 | $46.48 | Special order, ships in 7-14 days |
| 18 | 86495500 | Ferrari Screw M6 x 40 Torx T30 TBTX - 86495500 | $0.86 | Available, ships in 3-6 days |
| 19 | 923463 | Ferrari Centre Windstop Spacer - 923463 | $3.24 | Special order, ships in 7-14 days |
| 23 | 1002912 | Ferrari MEMBRANE KIT, TWO SEAT VERSION - 1002912 | Price on request | Contact us for price and availability |
