Ferrari Monza SP2 — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0149)

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari Monza SP2, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

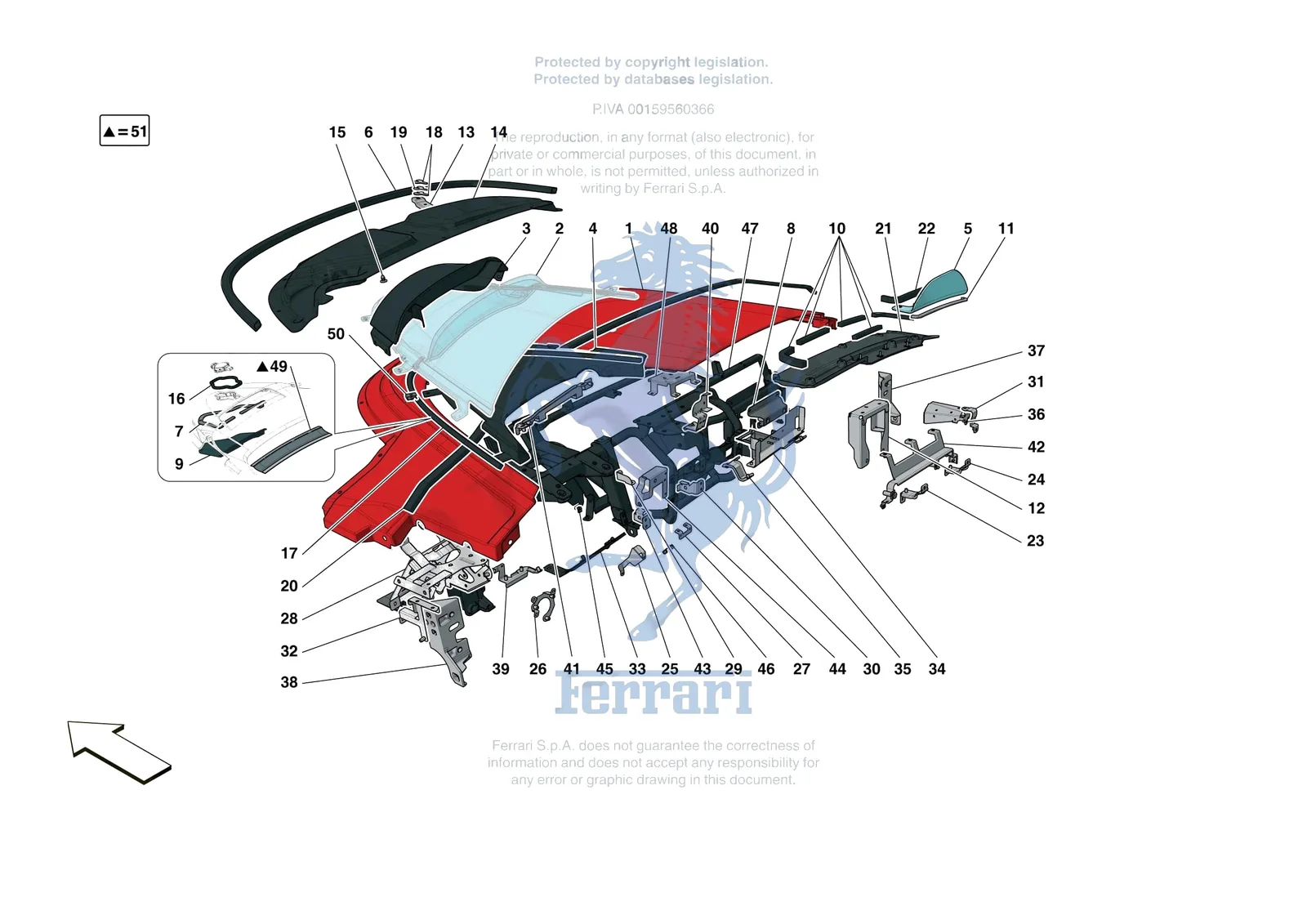

Ferrari Monza SP2 [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14368371Ferrari Screw Clip - 14368371SupersededOrder 14188971 instead
1985937730Ferrari Compl. Upper Dashboard - 985937730$37,271.67Contact us to order
2878708Ferrari Driver Side Clear Wind Defle - 878708$1,248.34Special order, ships in 7-14 days
3878979Ferrari Compl. Driver Side Binnacle - 878979$3,907.10Special order, ships in 7-14 days
4766042Ferrari Compl. Binnacle Substructure - 766042$5,979.54Special order, ships in 7-14 days
4836157Ferrari Compl. Binnacle Substructure - 836157$7,823.52Special order, ships in 7-14 days
5865983Ferrari Compl. Binnacle - 865983$440.56Special order, ships in 7-14 days
6828125Ferrari Guarnizione Acqua - 828125$204.49Special order, ships in 7-14 days
7848838Ferrari Guarnizione Cover Rlf - 848838$52.19Special order, ships in 7-14 days
8849369Ferrari Complete Upper Dash Section Fastener Bracket - 849369$110.13Special order, ships in 7-14 days
9766117Ferrari Rlf Cover - 766117SupersededOrder 836158 instead
9836158Ferrari Rlf Cover - 836158$1,272.82Special order, ships in 7-14 days
10881351Ferrari Guarnizione Ossatura Top Pla - 881351$18.25Special order, ships in 7-14 days
11866125Ferrari Guarnizione Cover Supporto F - 866125$21.51Special order, ships in 7-14 days
12836700Ferrari Bracket for Upper Passenger Side Dash Section - 836700$151.74Special order, ships in 7-14 days
13848759Ferrari Compl. RH Upper Dash Section Mounting Bracket - 848759$56.27Special order, ships in 7-14 days
14849577Ferrari Riparo Calore - 849577$215.38Special order, ships in 7-14 days
1514591687Ferrari Fixing Button - 14591687$0.13Available, ships in 3-6 days
16844066Ferrari Guarnizione Antipolvere Rlf - 844066$143.58Special order, ships in 7-14 days
17844350Ferrari Guarnizione Antipolvere Cupo - 844350$16.50Special order, ships in 7-14 days
18918899Ferrari Shim - 918899$13.01Special order, ships in 7-14 days
19918906Ferrari Shim - 918906$13.01Special order, ships in 7-14 days
20828127Ferrari Guarnizione Antifumo - 828127$39.14Special order, ships in 7-14 days
21865972Ferrari Fastener Mount Cover - 865972$6,135.72Special order, ships in 7-14 days
22872982Ferrari Guarnizione Sup Cover Suppor - 872982$26.09Special order, ships in 7-14 days
23831300Ferrari Bracket for LH Elastic Fastener - 831300$78.30Special order, ships in 7-14 days
24831306Ferrari Bracket for RH Elastic Fastener - 831306$78.30Special order, ships in 7-14 days
25856572Ferrari BLUETOOTH BRACKET - 856572Price on requestContact us for price and availability
26831604Ferrari Lights Control Bracket - 831604$117.47Special order, ships in 7-14 days
27856890Ferrari INFOLED FASTENER BRACKET - 856890Price on requestContact us for price and availability
28878844Ferrari Complete Body Computer Bracket - 878844$807.74Special order, ships in 7-14 days
2988041000Ferrari Driver Side Lower Air Duct B - 88041000$31.93Special order, ships in 7-14 days
3083853800Ferrari RH Air Con Unit Bracket - 83853800$46.69Available, ships in 3-6 days
31842795Ferrari Upper Passenger Side Cover Fastener Bracket - 842795$34.25Special order, ships in 7-14 days
32833921Ferrari Underdash Trim Fastener Bracket - 833921$73.41Special order, ships in 7-14 days
3384494400Ferrari Lower Under Driver Seat Bracket LHD - 84494400$344.21Special order, ships in 7-14 days
34878845Ferrari Lower RH Bracket - Dashboard - 878845$293.71Special order, ships in 7-14 days
35834231Ferrari LH Lower Bracket - Dashboard - 834231$80.75Special order, ships in 7-14 days
3687895800Ferrari RH Lateral Bracket - 87895800$169.62Special order, ships in 7-14 days
37923029Ferrari RH Lateral Bodyshell Bracket - 923029$166.42Special order, ships in 7-14 days
38923028Ferrari LH Lateral Bodyshell Bracket - 923028$166.42Special order, ships in 7-14 days
3984937900Ferrari OBD Bracket LHD - 84937900$61.45Special order, ships in 7-14 days
4082718500Ferrari Firewall Bracket LHD - 82718500$68.83Special order, ships in 7-14 days
41833923Ferrari Instrument Panel Bracket - 833923$88.09Special order, ships in 7-14 days
42860336Ferrari Compl. Upper Glove Compartment Bracket - 860336$367.14Special order, ships in 7-14 days
4383854000Ferrari LH Air Con Unit Bracket - 83854000$46.69Available, ships in 3-6 days
44842794Ferrari LH Bracket - Dashboard - 842794$66.07Special order, ships in 7-14 days
4514189374Ferrari Clip For Screw - 14189374$0.98Special order, ships in 7-14 days
4680964300Ferrari Temperature Sensor Bracket - 80964300$12.21Special order, ships in 7-14 days
47912715Ferrari Dashboard Cross Member - 912715$4,412.97Special order, ships in 7-14 days
48839800Ferrari Antenna Fastener Bracket - 839800$48.93Special order, ships in 7-14 days
5014188971Ferrari Screw Clip - 14188971$9.07Special order, ships in 7-14 days
511002912Ferrari MEMBRANE KIT, TWO SEAT VERSION - 1002912Price on requestContact us for price and availability
