Ferrari Monza SP2 — [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES (diagram 0165)
Exploded view of the [vehicle trim] - e.53 - other interior trim accessories on the Ferrari Monza SP2, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

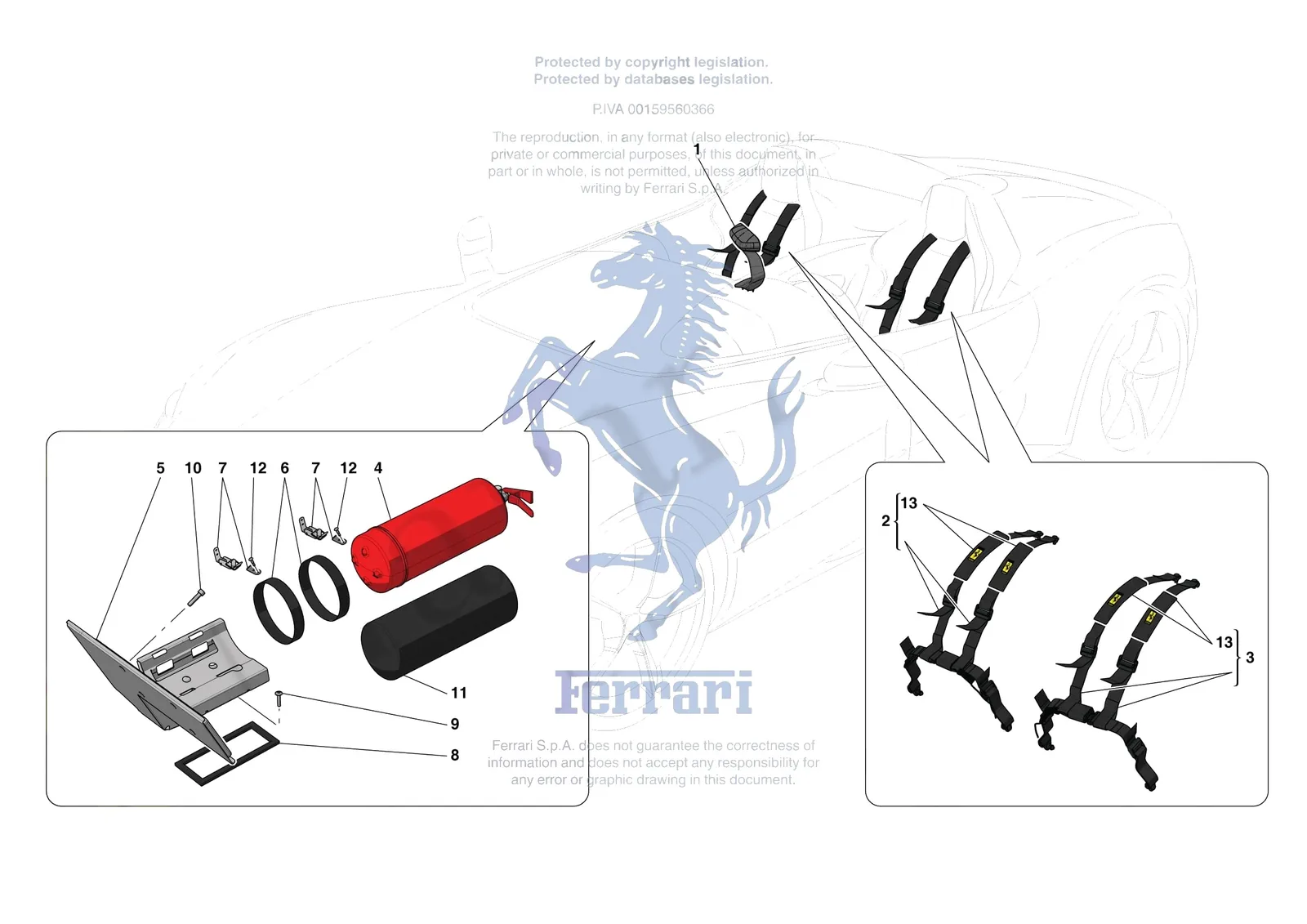

![Ferrari Monza SP2 [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0165.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82654500 | Ferrari 2KG Fire Extinguisher - 82654500 | Superseded | Order 922429 instead | |
| 83490400 | Ferrari 2KG Fire Extinguisher - 83490400 | Superseded | Order 922429 instead | |
| 1 | 892834 | Ferrari Compl. Internal Rear View Mi - 892834 | $9,295.82 | Special order, ships in 7-14 days |
| 2 | 877425 | Ferrari RH 4-Point Seat Harness - 877425 | $4,149.53 | Special order, ships in 7-14 days |
| 2 | 877426 | Ferrari RH 4-Point Seat Harness - 877426 | $4,149.53 | Special order, ships in 7-14 days |
| 2 | 877427 | Ferrari RH 4-Point Seat Harness - 877427 | $4,149.53 | Special order, ships in 7-14 days |
| 2 | 877428 | Ferrari RH 4-Point Seat Harness - 877428 | $4,149.53 | Special order, ships in 7-14 days |
| 3 | 857810 | Ferrari LH 4-Point Seat Harness - 857810 | $4,149.53 | Special order, ships in 7-14 days |
| 3 | 857811 | Ferrari LH 4-Point Seat Harness - 857811 | $4,149.53 | Special order, ships in 7-14 days |
| 3 | 857812 | Ferrari LH 4-Point Seat Harness - 857812 | $4,149.53 | Special order, ships in 7-14 days |
| 3 | 857813 | Ferrari LH 4-Point Seat Harness - 857813 | $4,149.53 | Special order, ships in 7-14 days |
| 4 | 922429 | Ferrari 2KG FIRE EXTINGUISHER - 922429 | $1,081.84 | Special order, ships in 7-14 days |
| 5 | 903464 | Ferrari Fire Extinguisher Bracket - 903464 | $1,150.42 | Special order, ships in 7-14 days |
| 6 | 936823 | Ferrari Compl. Fastener Strap For 2K - 936823 | $293.71 | Special order, ships in 7-14 days |
| 7 | 65930000 | Ferrari Extinguisher Clamp - 65930000 | $86.40 | Available, ships in 3-6 days |
| 8 | 911055 | Ferrari Fire Extinguisher Bracket Seal - 911055 | $26.09 | Special order, ships in 7-14 days |
| 9 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
| 10 | 157218 | Ferrari Bolt M6 x 25 - 157218 | $1.17 | Available, ships in 3-6 days |
| 11 | 927844 | Ferrari Sacca_Per_Estintore_2Kg - 927844 | $489.54 | Special order, ships in 7-14 days |
| 12 | 835871 | Ferrari Rivet - 835871 | $0.34 | Special order, ships in 7-14 days |
| 13 | 949710 | Ferrari RH-LH Shoulder Cover Kit - 949710 | $417.97 | Special order, ships in 7-14 days |
