Ferrari Monza SP2 — [ELECTRICAL SYSTEM] - F.01 - BATTERIES (diagram 0176)

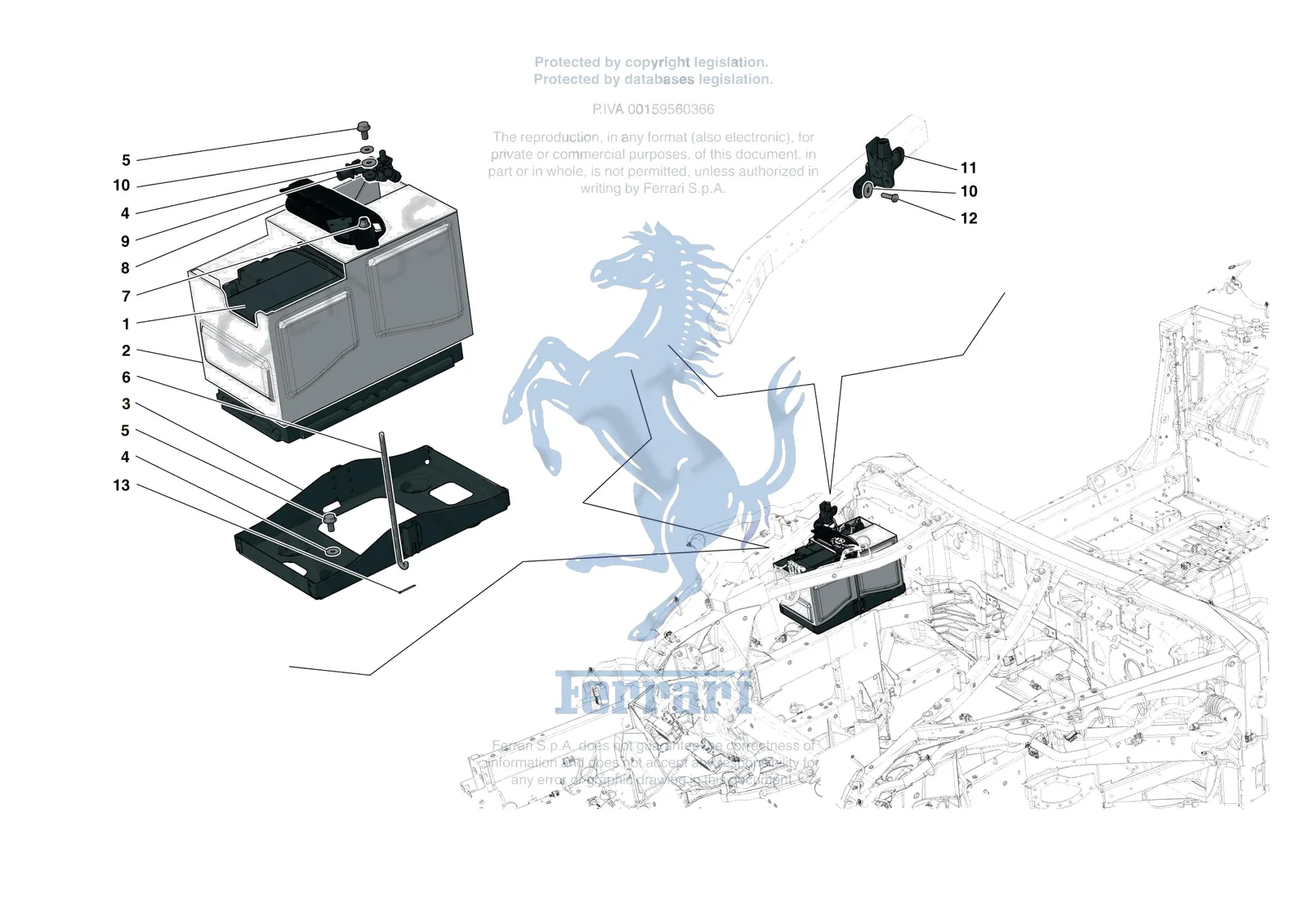

Exploded view of the [electrical system] - f.01 - batteries on the Ferrari Monza SP2, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ELECTRICAL SYSTEM] - F.01 - BATTERIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0176.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 245743 | Ferrari Battery Tie Rod - 245743 | Superseded | Order 292882 instead | |
| 10902426 | Ferrari Bolt - 10902426 | Superseded | Order 10902424 instead | |
| 10902421 | Ferrari Bolt M6 - 10902421 | $0.25 | Available, ships in 3-6 days | |
| 327752 | Ferrari Compl. Battery Mounting - 327752 | $562.96 | Special order, ships in 7-14 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 156093 | Ferrari Washer - 156093 | Superseded | Order 12646778 instead | |
| 1 | 326782 | Ferrari Battery 80Ah - 326782 | $830.51 | Available, ships in 3-6 days |
| 2 | 332493 | Ferrari Battery Heat Shield - 332493 | $295.03 | Special order, ships in 7-14 days |
| 3 | 808727 | Ferrari Compl. Battery Mounting - 808727 | $565.49 | Special order, ships in 7-14 days |
| 4 | 12646778 | Ferrari Washer - 12646778 | $0.89 | In stock |
| 5 | 16287024 | Ferrari Screw - 16287024 | $1.00 | In stock |
| 6 | 292882 | Ferrari Battery Tie Rod - 292882 | $27.03 | Special order, ships in 7-14 days |
| 7 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
| 8 | 859503 | Ferrari Compl. Side Board - 859503 | $293.71 | Special order, ships in 7-14 days |
| 9 | 341861 | Ferrari Battery Sensor - 341861 | $240.39 | Special order, ships in 7-14 days |
| 9 | 798759 | Ferrari Battery Sensor - 798759 | $327.81 | Available, ships in 3-6 days |
| 10 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 11 | 859380 | Ferrari Complete Separate Battery Terminal - 859380 | $44.03 | Special order, ships in 7-14 days |
| 12 | 10902424 | Ferrari Bolt M6 x 20 - 10902424 | $0.27 | Available, ships in 3-6 days |
| 13 | 10795206 | Ferrari Split Pin - 10795206 | $0.13 | Special order, ships in 7-14 days |
