Ferrari Monza SP2 — [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES (diagram 0182)

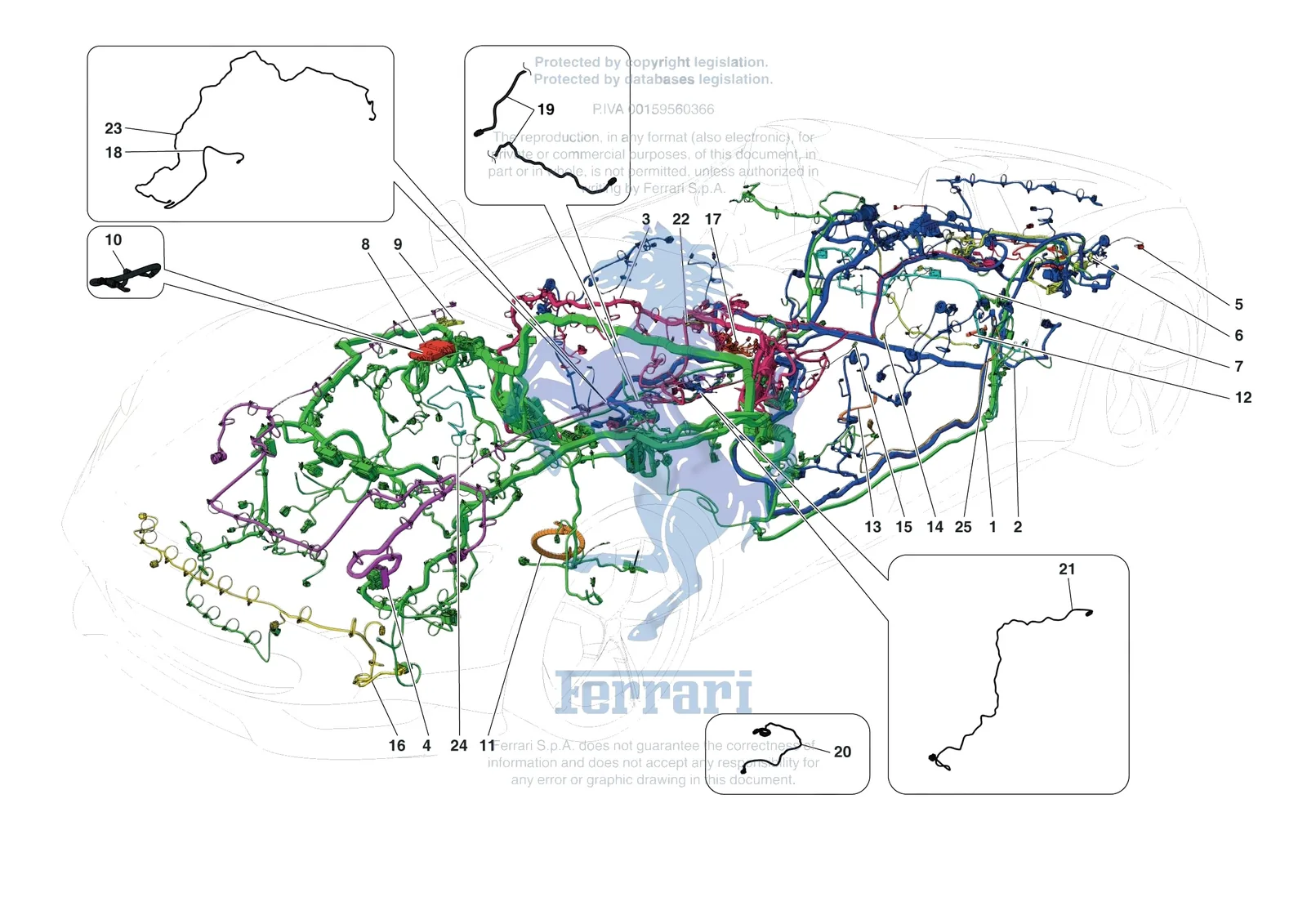

Exploded view of the [electrical system] - f.07 - low voltage wiring harnesses on the Ferrari Monza SP2, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0182.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 302141 | Ferrari Earth Braid - 302141 | $453.25 | Available, ships in 3-6 days | |
| 296555 | Ferrari Ground Braid - 296555 | $97.88 | Special order, ships in 7-14 days | |
| 309771 | Ferrari Ndm Usb Cable - 309771 | $489.54 | Special order, ships in 7-14 days | |
| 1 | 866719 | Ferrari Cavo Anteriore S&S F176 - 866719 | $8,977.48 | Special order, ships in 7-14 days |
| 2 | 958127 | Ferrari Cavo Posteriore No Pac3 Si E - 958127 | $5,548.26 | Special order, ships in 7-14 days |
| 2 | 958129 | Ferrari Cavo Posteriore Si Pac3 No E - 958129 | $5,867.65 | Special order, ships in 7-14 days |
| 2 | 922138 | Ferrari Rear Cable - 922138 | $5,767.40 | Special order, ships in 7-14 days |
| 2 | 922140 | Ferrari Rear Cable - 922140 | $5,501.64 | Special order, ships in 7-14 days |
| 3 | 877067 | Ferrari Dashboard Wiring Loom F176 - 877067 | $1,762.38 | Special order, ships in 7-14 days |
| 3 | 877069 | Ferrari Dashboard Wiring Loom Pac3 F176 - 877069 | $1,762.38 | Special order, ships in 7-14 days |
| 4 | 866725 | Ferrari Front Bumper Wiring Loom F176 - 866725 | $154.18 | Special order, ships in 7-14 days |
| 5 | 866726 | Ferrari Rear Bumper Wiring Loom - 866726 | $293.71 | Special order, ships in 7-14 days |
| 6 | 866729 | Ferrari Cavo Tpms F176 - 866729 | $227.62 | Special order, ships in 7-14 days |
| 6 | 866731 | Ferrari Cavo Tpms-Sollevatore F176 - 866731 | $660.87 | Special order, ships in 7-14 days |
| 7 | 830508 | Ferrari Cavo Serbatoio - 830508 | $216.35 | Special order, ships in 7-14 days |
| 8 | 330703 | Ferrari Compl. Battery Ecu - 330703 | $238.47 | Special order, ships in 7-14 days |
| 9 | 843634 | Ferrari Battery Earth Cable Assembly - 843634 | $181.11 | Special order, ships in 7-14 days |
| 10 | 278419 | Ferrari Ground Cable From Sensor To False Pole - 278419 | $66.35 | Special order, ships in 7-14 days |
| 11 | 276837 | Ferrari Engine Ground - Chassis Ground Connector Braid - 276837 | $172.10 | Special order, ships in 7-14 days |
| 12 | 233247 | Ferrari Ground Braid - 233247 | $154.89 | Special order, ships in 7-14 days |
| 13 | 281052 | Ferrari Ground Braid - 281052 | $213.88 | Special order, ships in 7-14 days |
| 14 | 756965 | Ferrari Bt-Nit Antenna Cable - 756965 | $86.04 | Special order, ships in 7-14 days |
| 15 | 329938 | Ferrari Wi-Fi Antenna Extension - 329938 | $95.87 | Special order, ships in 7-14 days |
| 16 | 826470 | Ferrari Lid/Fender Wiring Harness - 826470 | $514.01 | Special order, ships in 7-14 days |
| 17 | 826471 | Ferrari Control Plate Wiring Harness - 826471 | $237.40 | Special order, ships in 7-14 days |
| 18 | 317425 | Ferrari Briglia Parking Cam Anal Ndc - 317425 | $442.56 | Special order, ships in 7-14 days |
| 19 | 314834 | Ferrari Front Digital Camera Video Cable - 314834 | $688.45 | Special order, ships in 7-14 days |
| 20 | 320423 | Ferrari Nit-Splitter Cable - 320423 | $467.15 | Special order, ships in 7-14 days |
| 21 | 311948 | Ferrari Ndm Usb Cable - 311948 | $491.74 | Special order, ships in 7-14 days |
| 22 | 868011 | Ferrari Briglia Rlf F176 - 868011 | $16.62 | Special order, ships in 7-14 days |
| 23 | 871938 | Ferrari Cavo Video Digital Camera Re - 871938 | $391.61 | Special order, ships in 7-14 days |
| 24 | 297457 | Ferrari GPS Antenna Dashboard Antenna Extension Cable - 297457 | $125.37 | Special order, ships in 7-14 days |
