Ferrari Monza SP2 — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

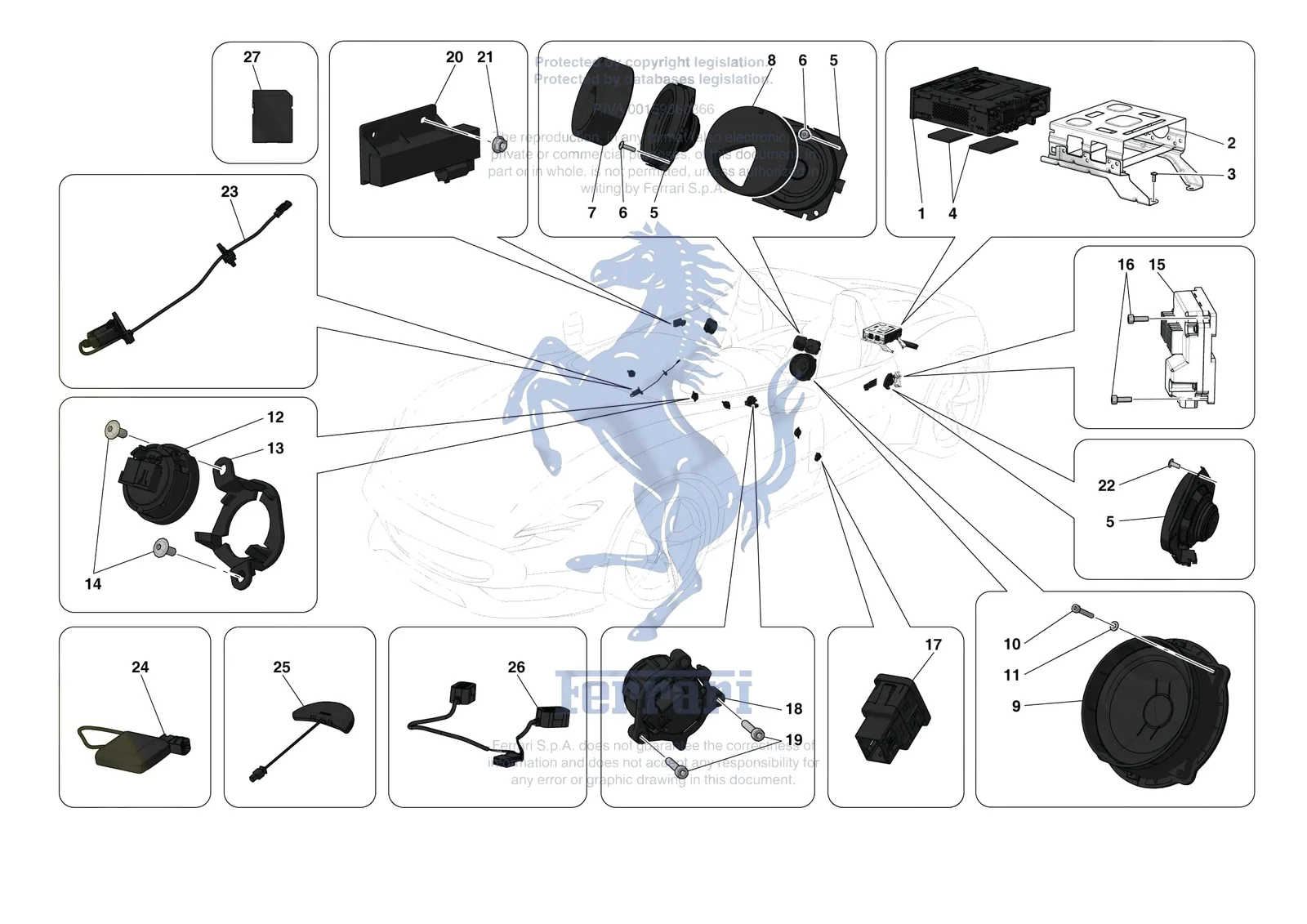

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari Monza SP2, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0185.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 242694 | Ferrari GPS Antenna - 242694 | Price on request | Contact us for price and availability | |
| 331961 | Ferrari GPS Antenna - 331961 | $154.46 | Special order, ships in 7-14 days | |
| 931307432 | Ferrari Navigation System Gps Antenna - 931307432 | Superseded | Order 789209 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 14303224 | Ferrari Screw 4x16 - 14303224 | $1.15 | Special order, ships in 7-14 days | |
| 290589 | Ferrari Screw 4x8 - 290589 | Superseded | Order 309629 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 288974 | Ferrari USB Socket - 288974 | Superseded | Order 303226 instead | |
| 320420 | Ferrari Usb Splitter - 320420 | Superseded | Order 337571 instead | |
| 1 | 335389 | Ferrari Nit - 335389 | $7,104.77 | Special order, ships in 7-14 days |
| 2 | 843590 | Ferrari NIT Bracket - Audio Unit - 843590 | $183.56 | Special order, ships in 7-14 days |
| 3 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 4 | 84069800 | Ferrari Body Bracket Connection - 84069800 | $4.47 | Available, ships in 3-6 days |
| 4 | 255515 | Ferrari Zagato Seal - 255515 | $3.39 | Available, ships in 3-6 days |
| 5 | 269772 | Ferrari Twiddler - 269772 | $109.25 | Special order, ships in 7-14 days |
| 6 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 7 | 867615 | Ferrari Guarnizione Midrange Dx - 867615 | $34.79 | Special order, ships in 7-14 days |
| 8 | 863678 | Ferrari Guarnizione Midrange - 863678 | $18.25 | Special order, ships in 7-14 days |
| 9 | 334279 | Ferrari Woofer - 334279 | $183.56 | Special order, ships in 7-14 days |
| 10 | 14304524 | Ferrari Screw - 14304524 | $0.86 | Available, ships in 3-6 days |
| 11 | 12637801 | Ferrari Washer - 12637801 | $0.19 | Available, ships in 3-6 days |
| 12 | 251541 | Ferrari Tweeter - 251541 | $56.79 | Special order, ships in 7-14 days |
| 13 | 88202500 | Ferrari Tweeter Support - 88202500 | $4.39 | Special order, ships in 7-14 days |
| 14 | 309629 | Ferrari Screw 4x8 - 309629 | $4.77 | Special order, ships in 7-14 days |
| 15 | 337571 | Ferrari Usb Splitter - 337571 | $1,155.62 | Contact us to order |
| 16 | 14303024 | Ferrari Allen Screw M4 x 12 TCEI - 14303024 | $1.63 | Available, ships in 3-6 days |
| 17 | 303226 | Ferrari USB Socket - 303226 | $100.78 | Special order, ships in 7-14 days |
| 17 | 317086 | Ferrari USB Socket - 317086 | $110.61 | Special order, ships in 7-14 days |
| 18 | 310781 | Ferrari Kin For Passive Start System - 310781 | Superseded | Order 900756 instead |
| 18 | 900756 | Ferrari Kin For Passive Start System - 900756 | $270.44 | Special order, ships in 7-14 days |
| 19 | 14303324 | Ferrari/Maserati Screw - 14303324 | $0.29 | In stock |
| 20 | 310778 | Ferrari Passive Start Antenna - 310778 | $26.20 | Available, ships in 3-6 days |
| 21 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 21 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 22 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 23 | 747685 | Ferrari Usb Socket - 747685 | $237.40 | Special order, ships in 7-14 days |
| 24 | 789209 | Ferrari GPS Antenna - 789209 | $155.15 | Special order, ships in 7-14 days |
| 25 | 286160 | Ferrari Bluetooth Antenna - 286160 | $961.65 | Special order, ships in 7-14 days |
| 26 | 241289 | Ferrari GSM Microphone - 241289 | $367.14 | Special order, ships in 7-14 days |
