Ferrari Portofino M — [ENGINE] - B.13 - OIL PIPES AND ENGINE OIL LEVEL SENSOR (diagram 0018)

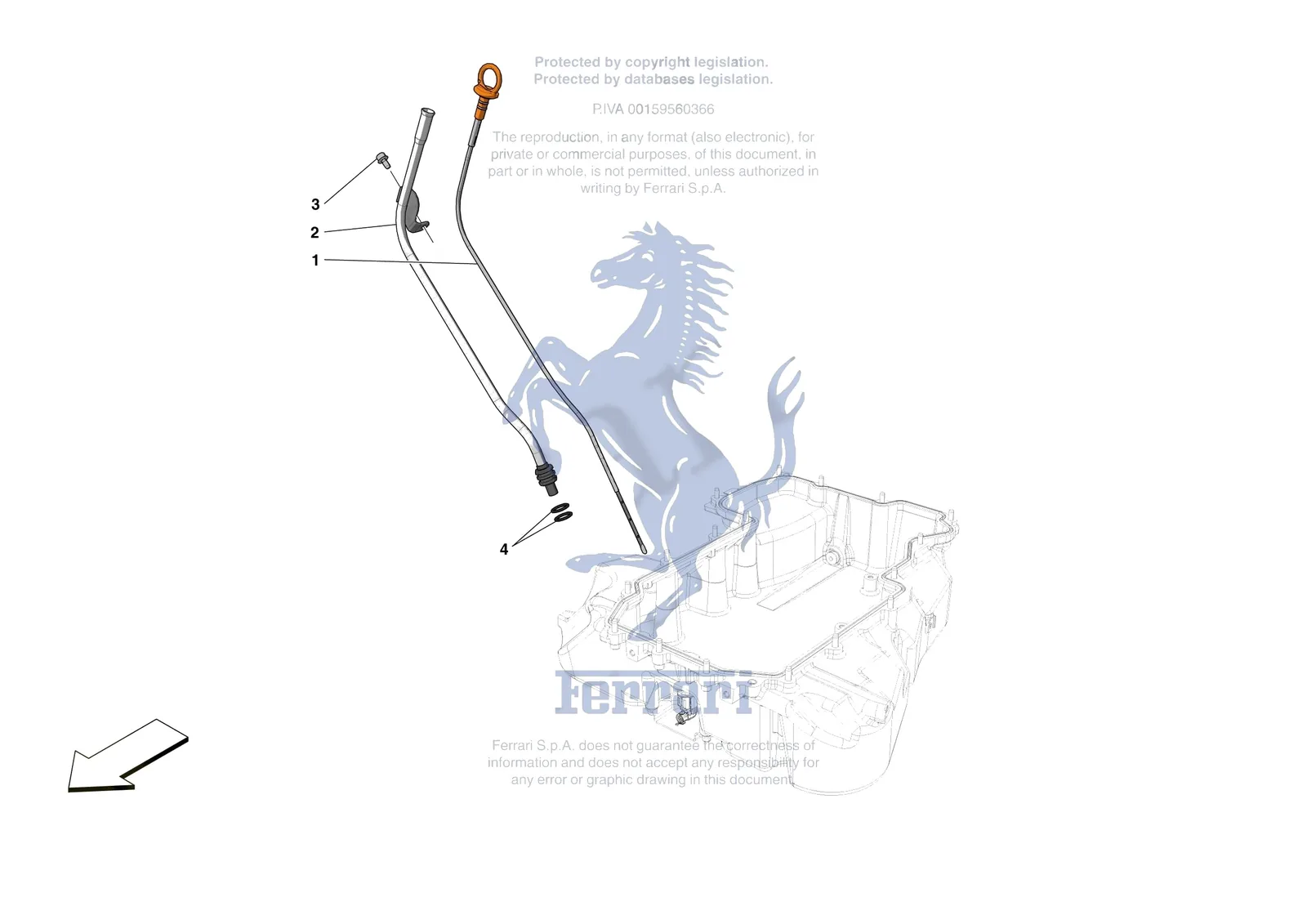

Exploded view of the [engine] - b.13 - oil pipes and engine oil level sensor on the Ferrari Portofino M, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [ENGINE] - B.13 - OIL PIPES AND ENGINE OIL LEVEL SENSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0018.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 301461 | Ferrari Dipstick - 301461 | $61.52 | Special order, ships in 7-14 days |
| 2 | 297463 | Ferrari Dipstick Tube Extension - 297463 | $110.78 | Special order, ships in 7-14 days |
| 3 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 4 | 282370 | Ferrari O-Ring - 282370 | $1.05 | Available, ships in 3-6 days |
