Ferrari Portofino M — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

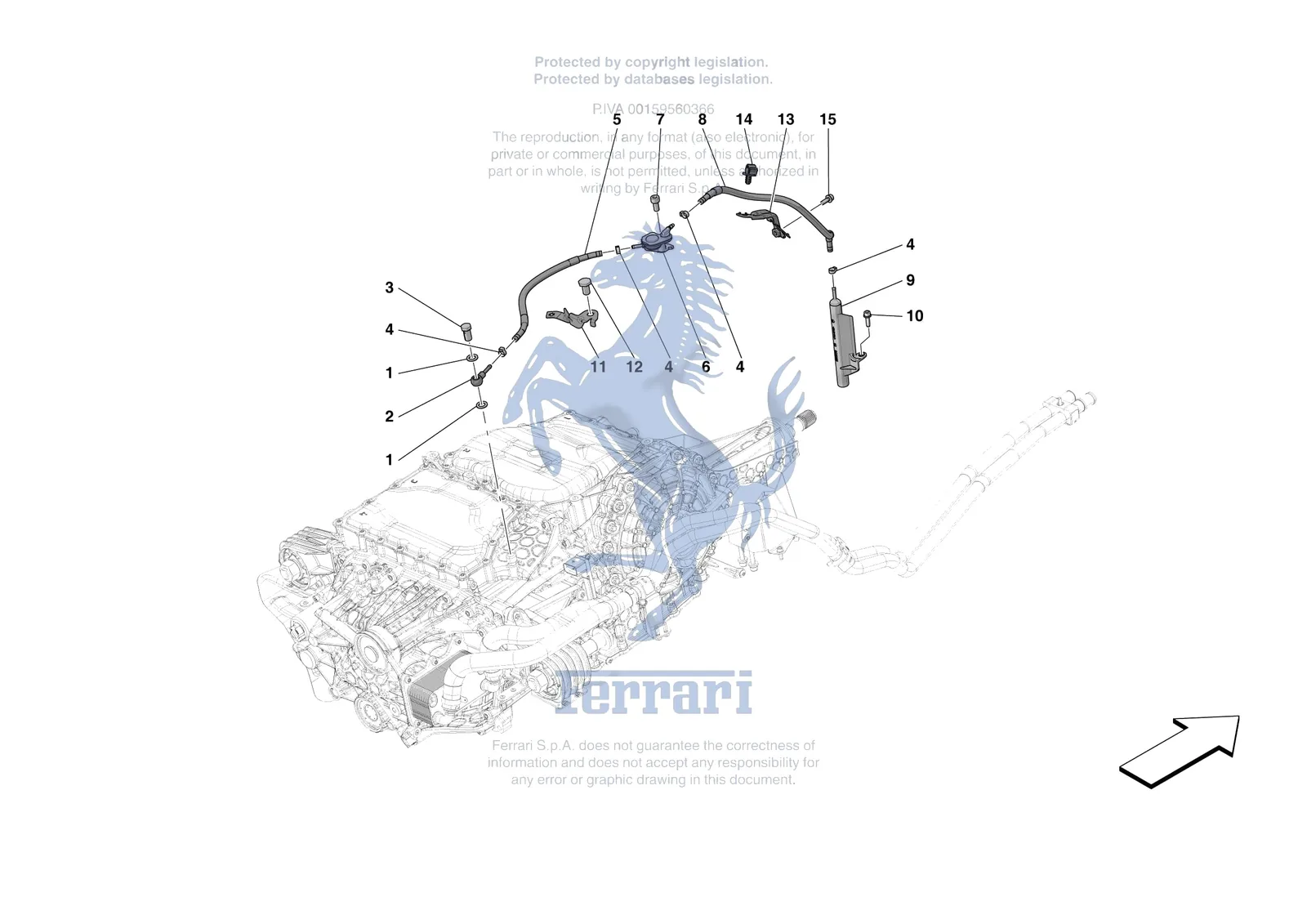

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari Portofino M, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0044.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 10284460 | Ferrari Washer - 10284460 | $0.31 | Available, ships in 3-6 days |
| 2 | 954054 | Ferrari Eyelet Union for Breather - 954054 | $56.52 | Special order, ships in 7-14 days |
| 3 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 4 | 13432570 | Ferrari Collar - 13432570 | $2.82 | Special order, ships in 7-14 days |
| 5 | 954057 | Ferrari Tubo Gomma Su Cambio - 954057 | $58.98 | Special order, ships in 7-14 days |
| 6 | 935822 | Ferrari Complete Tank - 935822 | $103.25 | Special order, ships in 7-14 days |
| 7 | 14306224 | Ferrari Screw M8 x 16 - 14306224 | $0.38 | Available, ships in 3-6 days |
| 8 | 934891 | Ferrari Tubo Gomma Anteriore Su Camb - 934891 | $88.49 | Special order, ships in 7-14 days |
| 9 | 954070 | Ferrari Tubo Sfiato Vs Fondo In Plas - 954070 | $63.90 | Special order, ships in 7-14 days |
| 10 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 11 | 954065 | Ferrari Bracket for Breather Pipe - 954065 | $41.76 | Special order, ships in 7-14 days |
| 12 | 803878 | Ferrari Hex Head Screw M10 Testa Rib. - 803878 | $12.00 | Special order, ships in 7-14 days |
| 13 | 938373 | Ferrari Bracket - Transmission Heat Exchanger Pipe - 938373 | $68.83 | Special order, ships in 7-14 days |
| 14 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 15 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
