Ferrari Portofino M — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)
Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari Portofino M, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

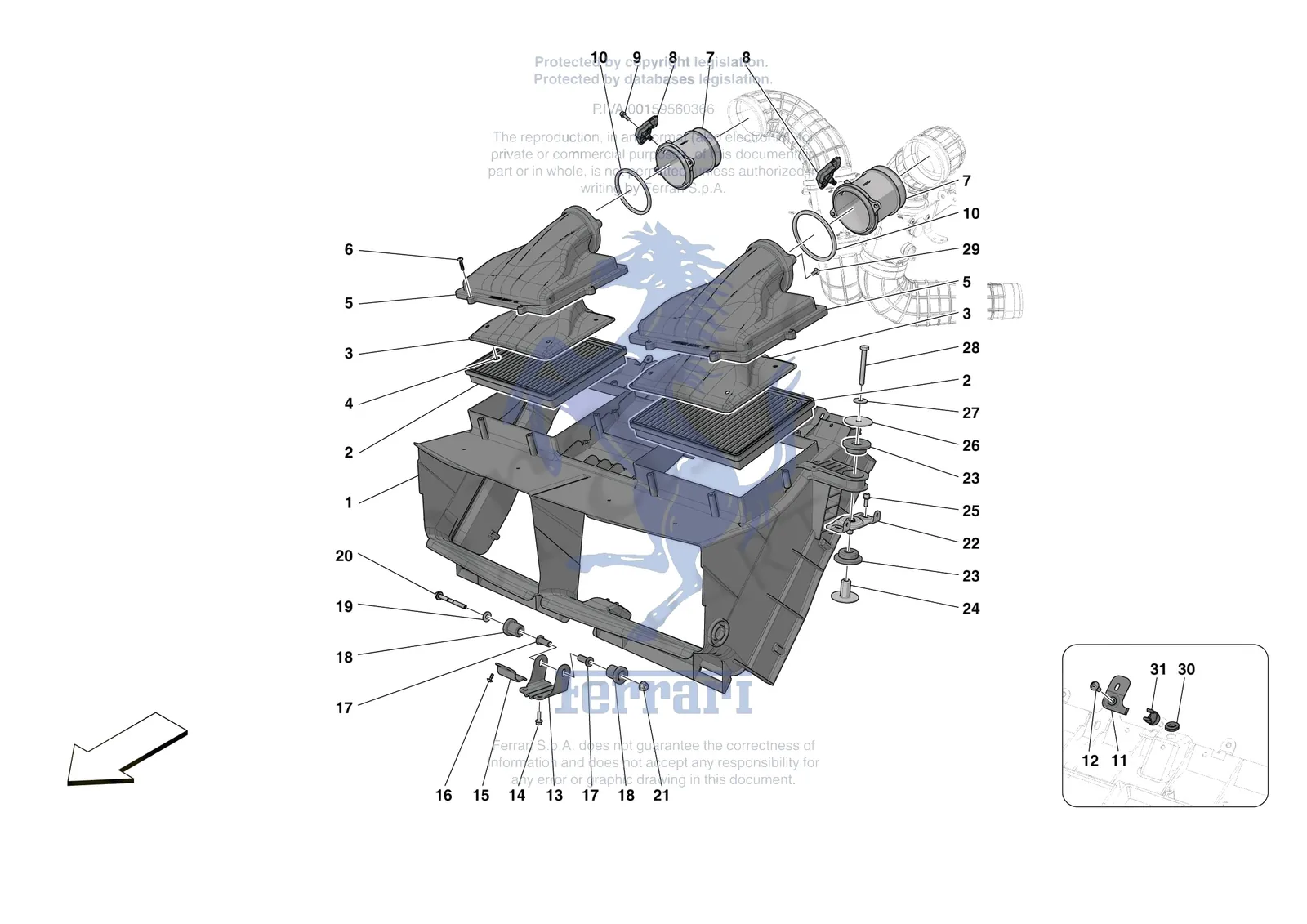

![Ferrari Portofino M [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 293146 | Ferrari Clip - 293146 | $2.09 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 1 | 328191 | Ferrari Engine Intake Duct - 328191 | $566.30 | Special order, ships in 7-14 days |
| 2 | 338255 | Ferrari Air Filter - 338255 | $174.03 | Available, ships in 3-6 days |
| 2 | 771373 | Ferrari Portofino Engine Air Filter - 771373 | $207.88 | In stock |
| 2 | PORTFK | Ferrari Portofino Filter Kit - PORTFK | $539.00 | In stock |
| 3 | 764941 | Ferrari Panno Fonoassorbentesc.Filtr - 764941 | $130.47 | Special order, ships in 7-14 days |
| 4 | 770814 | Ferrari Ring Nut For Pin - 770814 | $1.36 | Special order, ships in 7-14 days |
| 5 | 780850 | Ferrari Filter Cover - 780850 | $130.47 | Special order, ships in 7-14 days |
| 6 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 7 | 837280 | Ferrari Sensor Holder Housing - 6 x 25 - 837280 | $44.29 | Special order, ships in 7-14 days |
| 8 | 272880 | Ferrari Pressure and Temperature Sensor - 272880 | $61.26 | Available, ships in 3-6 days |
| 9 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 10 | 193113 | Ferrari Gasket - 193113 | $16.60 | Special order, ships in 7-14 days |
| 11 | 914929 | Ferrari Connector Mounting Bracket - 914929 | $29.52 | Special order, ships in 7-14 days |
| 12 | 269959 | Ferrari Screw - 269959 | $1.61 | In stock |
| 13 | 824299 | Ferrari Lower Intake Duct Mounting Bracket - 824299 | $56.60 | Special order, ships in 7-14 days |
| 14 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 15 | 333233 | Ferrari Lower Duct Fastener Bracket - 333233 | $27.06 | Special order, ships in 7-14 days |
| 16 | 332833 | Ferrari Screw - 332833 | $2.82 | Special order, ships in 7-14 days |
| 17 | 197585 | Ferrari Bushing - 197585 | $9.07 | Special order, ships in 7-14 days |
| 18 | 197584 | Ferrari Rubber Bushing - 197584 | $5.44 | Available, ships in 3-6 days |
| 19 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 20 | 83743900 | Ferrari Screw M8 x 90 - 83743900 | $6.96 | Available, ships in 3-6 days |
| 21 | 14058511 | Ferrari Nut M8 x 8 - 14058511 | $0.40 | Special order, ships in 7-14 days |
| 22 | 340839 | Ferrari Duct Adjuster - 340839 | $36.86 | Special order, ships in 7-14 days |
| 23 | 138926 | Ferrari Rubber Spacer - 138926 | $8.72 | Available, ships in 3-6 days |
| 24 | 343007 | Ferrari Bush for Upper Duct Brackets - 343007 | $36.86 | Special order, ships in 7-14 days |
| 25 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 26 | 227430 | Ferrari Washer D.50-8.5 - 227430 | $4.12 | Available, ships in 3-6 days |
| 27 | 13578321 | Ferrari Washer D.8.15-24x2 - 13578321 | $1.04 | Available, ships in 3-6 days |
| 28 | 16044534 | Ferrari Screw M8 x 65 - 16044534 | $3.03 | Available, ships in 3-6 days |
| 29 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 30 | 337907 | Ferrari Clip - 337907 | $0.90 | Special order, ships in 7-14 days |
| 30 | 257273 | Ferrari Clip D. 14-16 - 257273 | $2.59 | Special order, ships in 7-14 days |
| 31 | 85663600 | Ferrari Rubber Seal - 85663600 | $17.19 | Special order, ships in 7-14 days |
