Ferrari Portofino M — [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS (diagram 0061)

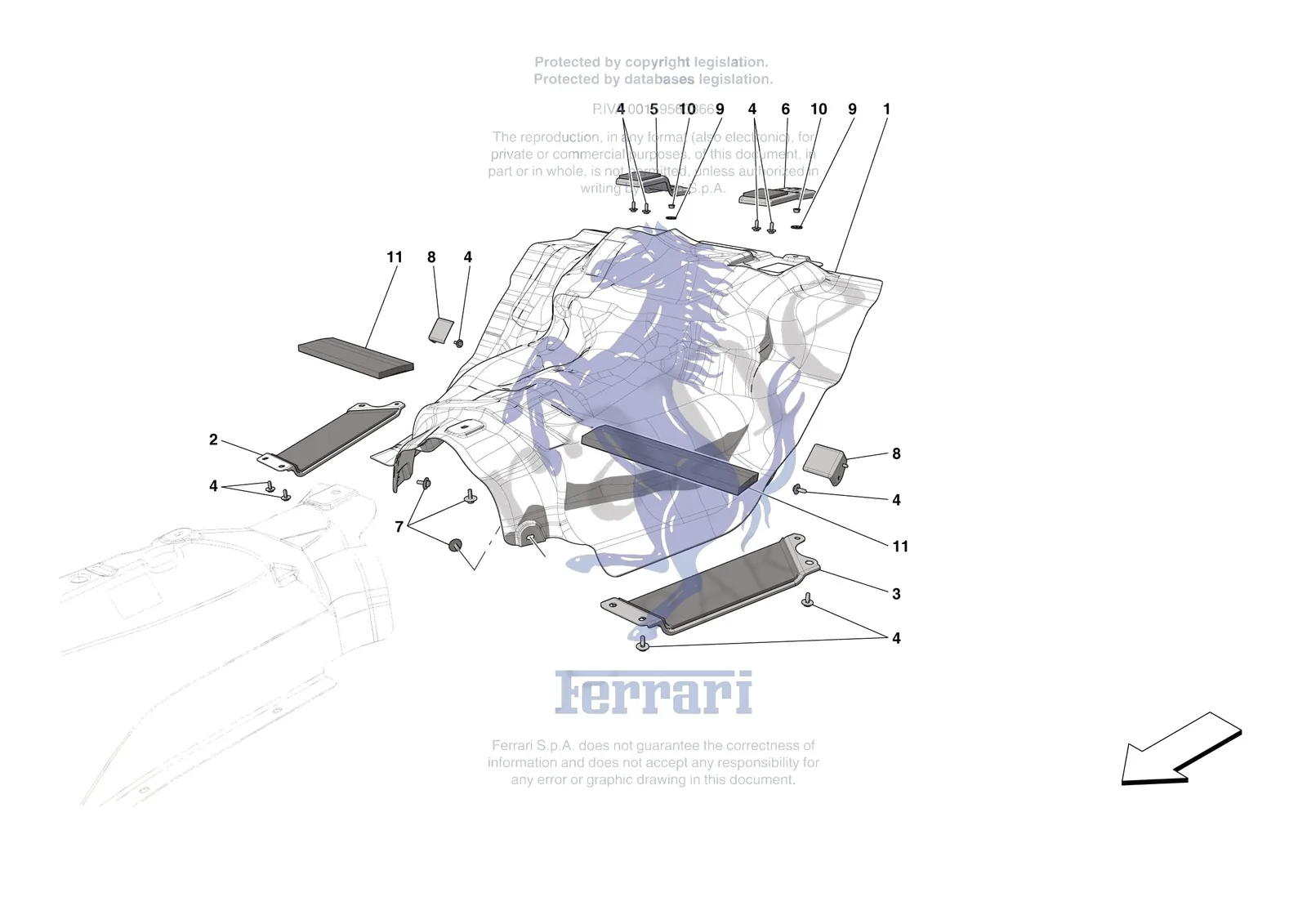

Exploded view of the [mechanical system] - d.12 - tank mounts on the Ferrari Portofino M, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.12 - TANK MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0061.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 338349 | Ferrari Isolante Termico Serb.Car - 338349 | $562.96 | Special order, ships in 7-14 days | |
| 14048115 | Ferrari Nut - 14048115 | Superseded | Order 14058411 instead | |
| 14048611 | Ferrari Nut - 14048611 | Superseded | Order 14058411 instead | |
| 14048615 | Ferrari Nut - 14048615 | Superseded | Order 14058411 instead | |
| 1 | 836325 | Ferrari Isolante Termico Serb.Car - 836325 | $566.30 | Special order, ships in 7-14 days |
| 2 | 342231 | Ferrari RH Lower Retainer - 342231 | $64.00 | Special order, ships in 7-14 days |
| 3 | 342229 | Ferrari LH Lower Retainer - 342229 | $64.00 | Special order, ships in 7-14 days |
| 4 | 792394 | Ferrari Screw TE M6 x 18 - 792394 | $0.84 | Available, ships in 3-6 days |
| 5 | 753100 | Ferrari RH Upper Retainer - 753100 | $39.37 | Special order, ships in 7-14 days |
| 6 | 753098 | Ferrari LH Upper Retainer - 753098 | $41.82 | Special order, ships in 7-14 days |
| 7 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 8 | 794712 | Ferrari Tank Heat Insulation Bracket - 794712 | $36.86 | Special order, ships in 7-14 days |
| 9 | 250645 | Ferrari Ring Nut - 250645 | $1.44 | Special order, ships in 7-14 days |
| 10 | 14058411 | Ferrari Flanged Nut M6 x 6mm - 14058411 | $0.38 | Available, ships in 3-6 days |
| 11 | 781443 | Ferrari Plug - 781443 | $19.19 | Special order, ships in 7-14 days |
