Ferrari Portofino M — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

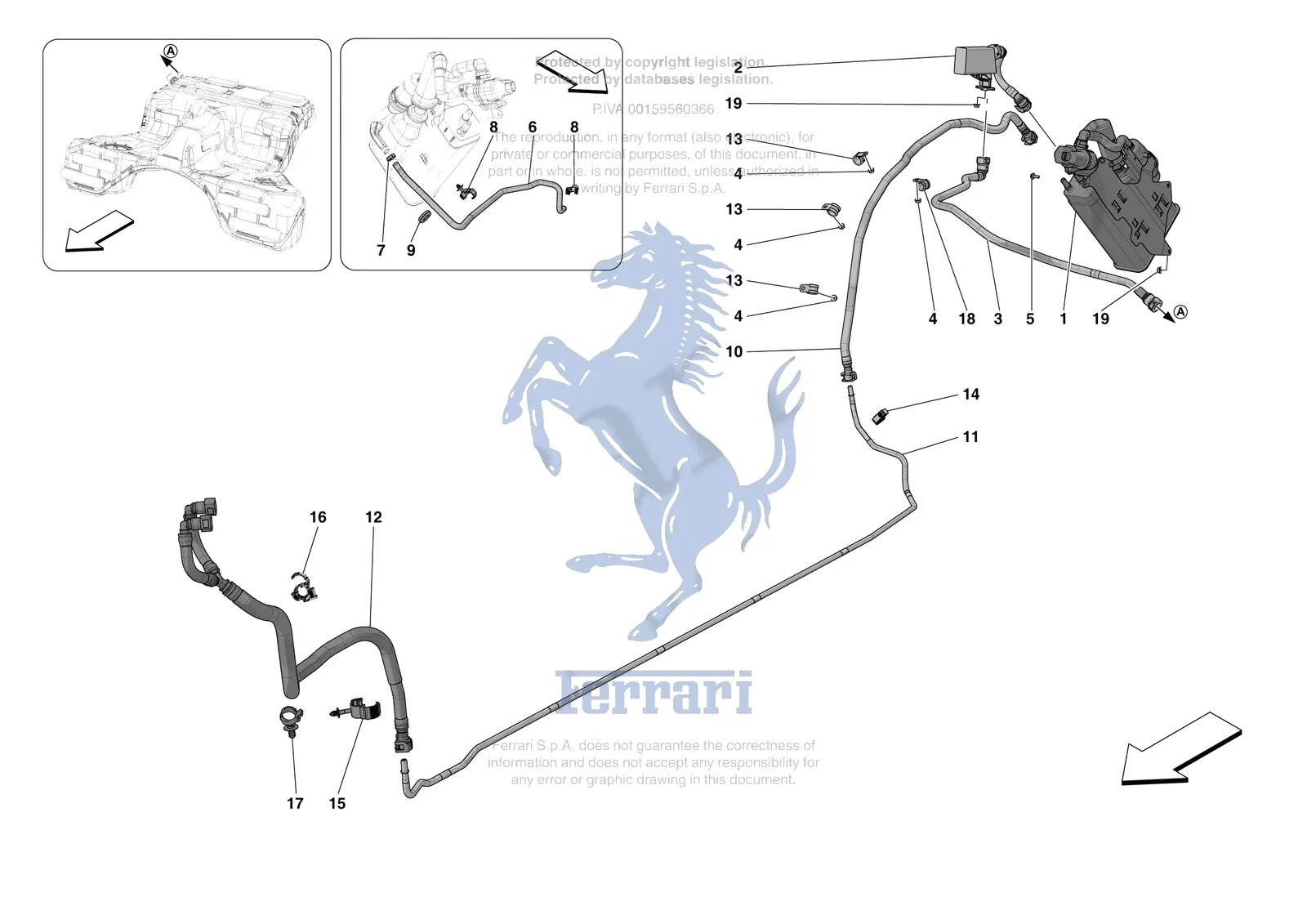

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari Portofino M, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0062.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 338263 | Ferrari Clip - 338263 | Superseded | Order 332428 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 895471 | Ferrari Compl. Vapour Filter - 895471 | $1,750.91 | Special order, ships in 7-14 days |
| 1 | 908644 | Ferrari Compl. Vapour Filter - 908644 | Superseded | Order 895471 instead |
| 2 | 914138 | Ferrari External Vapour Separator Co - 914138 | $344.69 | Special order, ships in 7-14 days |
| 3 | 342880 | Ferrari Tubo Serbatoio - Sep.Vapo - 342880 | $189.56 | Special order, ships in 7-14 days |
| 4 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 5 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 6 | 809722 | Ferrari Air Filter Intake Pipe - 809722 | Price on request | Contact us for price and availability |
| 7 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 8 | 331518 | Ferrari Clip - 331518 | $3.26 | Special order, ships in 7-14 days |
| 9 | 10397680 | Ferrari Guiding Cable - 10397680 | $1.59 | Available, ships in 3-6 days |
| 10 | 337179 | Ferrari Tubo Da Canister Sez.Pas - 337179 | $238.82 | Special order, ships in 7-14 days |
| 11 | 340870 | Ferrari Tubo Da Canister Sez.Sott - 340870 | $73.85 | Special order, ships in 7-14 days |
| 12 | 342970 | Ferrari Tubo Antievaporaz. Sez.Para - 342970 | $295.43 | Special order, ships in 7-14 days |
| 13 | 10441690 | Ferrari P Clip D18mm - 10441690 | $3.91 | Special order, ships in 7-14 days |
| 14 | 298580 | Ferrari Clip - 298580 | $7.19 | Special order, ships in 7-14 days |
| 15 | 794142 | Ferrari Clip - 794142 | $7.63 | Special order, ships in 7-14 days |
| 16 | 332428 | Ferrari Clip - 332428 | $2.61 | Special order, ships in 7-14 days |
| 17 | 239094 | Ferrari Clip - 239094 | $2.59 | Special order, ships in 7-14 days |
| 18 | 10441590 | Ferrari P Clip Bracket With Sheath 16mm - 10441590 | $0.98 | Available, ships in 3-6 days |
| 19 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
