Ferrari Portofino M — [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- (diagram 0073)

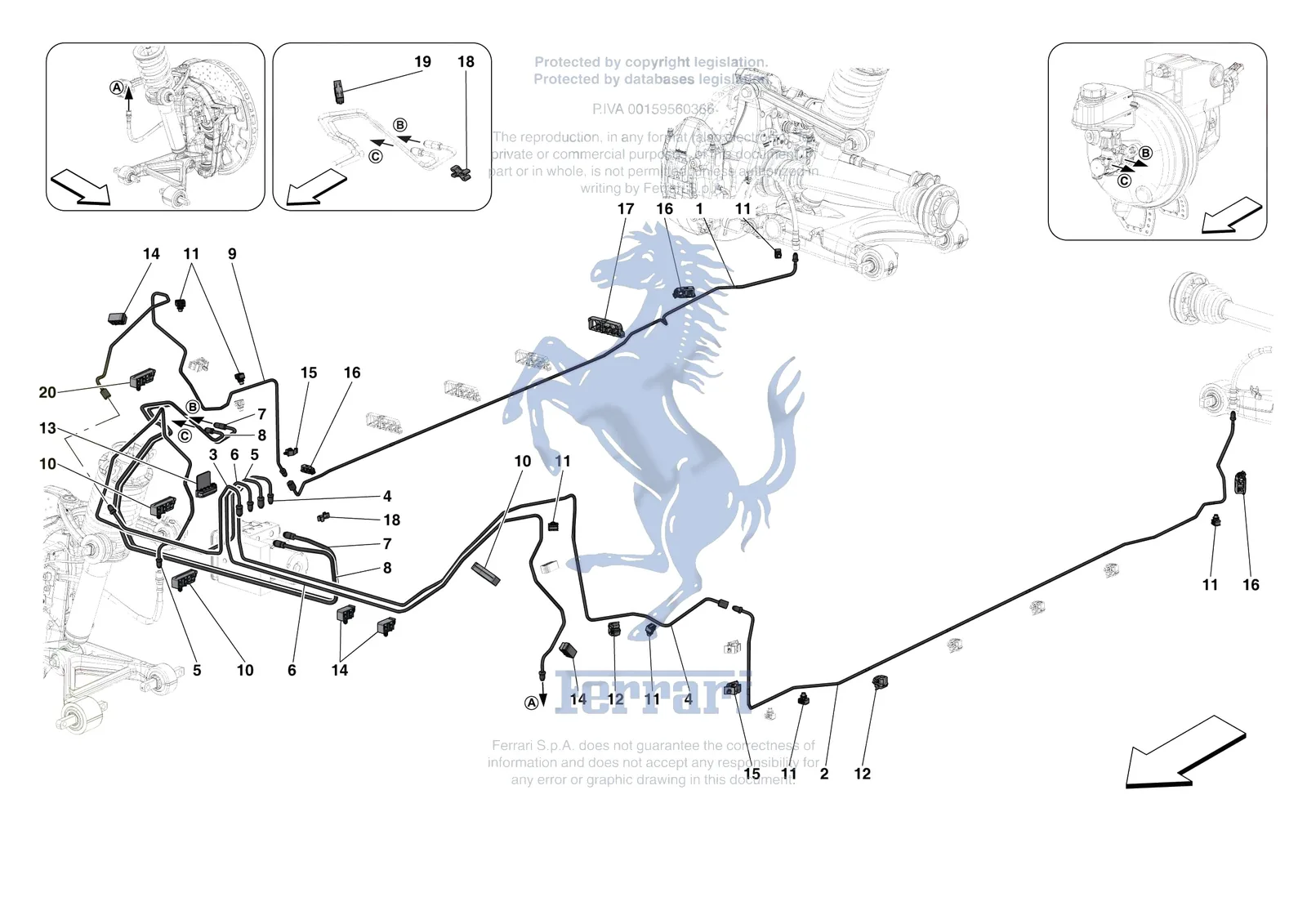

Exploded view of the [mechanical system] - d.23.02 - hydraulic brake control pipes -applicable for rhd- on the Ferrari Portofino M, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0073.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 332727 | Ferrari Tubo Freno Sottop. A Mod.Po - 332727 | $115.69 | Special order, ships in 7-14 days |
| 2 | 770223 | Ferrari Tubo Freno Sottop. A Mod P - 770223 | $135.39 | Special order, ships in 7-14 days |
| 3 | 763430 | Ferrari Tubo Freno Rr A Giunpost.Dx - 763430 | $71.38 | Special order, ships in 7-14 days |
| 4 | 756981 | Ferrari Tubo Freno Rl A Giunpost Sx - 756981 | $115.69 | Special order, ships in 7-14 days |
| 5 | 758789 | Ferrari Tubo Freno Da Fr A Giunto An - 758789 | $110.78 | Special order, ships in 7-14 days |
| 6 | 758820 | Ferrari Tubo Freno Da "Fl" A Ant. S - 758820 | $118.16 | Special order, ships in 7-14 days |
| 7 | 809855 | Ferrari Brake Pipe To Mc1 - 809855 | $132.94 | Special order, ships in 7-14 days |
| 8 | 809856 | Ferrari Brake Pipe To Mc2 - 809856 | $110.78 | Special order, ships in 7-14 days |
| 9 | 758788 | Ferrari Tubo Freno Da Giunz.A Mod.Po - 758788 | $100.93 | Special order, ships in 7-14 days |
| 10 | 301061 | Ferrari Clip - 301061 | $3.03 | Special order, ships in 7-14 days |
| 11 | 256962 | Ferrari Clip D. 4.7X1 - 256962 | $1.36 | Special order, ships in 7-14 days |
| 12 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 13 | 254195 | Ferrari Clip - 254195 | $3.03 | Special order, ships in 7-14 days |
| 14 | 312163 | Ferrari Clip - 312163 | $1.99 | Special order, ships in 7-14 days |
| 15 | 301063 | Ferrari Clip - 301063 | $1.65 | Available, ships in 3-6 days |
| 16 | 280281 | Ferrari Clip - 280281 | $3.03 | Special order, ships in 7-14 days |
| 17 | 299493 | Ferrari Clip - 299493 | $2.13 | Special order, ships in 7-14 days |
| 18 | 255286 | Ferrari Clip - 255286 | $1.84 | Special order, ships in 7-14 days |
| 19 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
| 20 | 234286 | Ferrari Clip - 234286 | $3.03 | Available, ships in 3-6 days |
