Ferrari Portofino M — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0075)

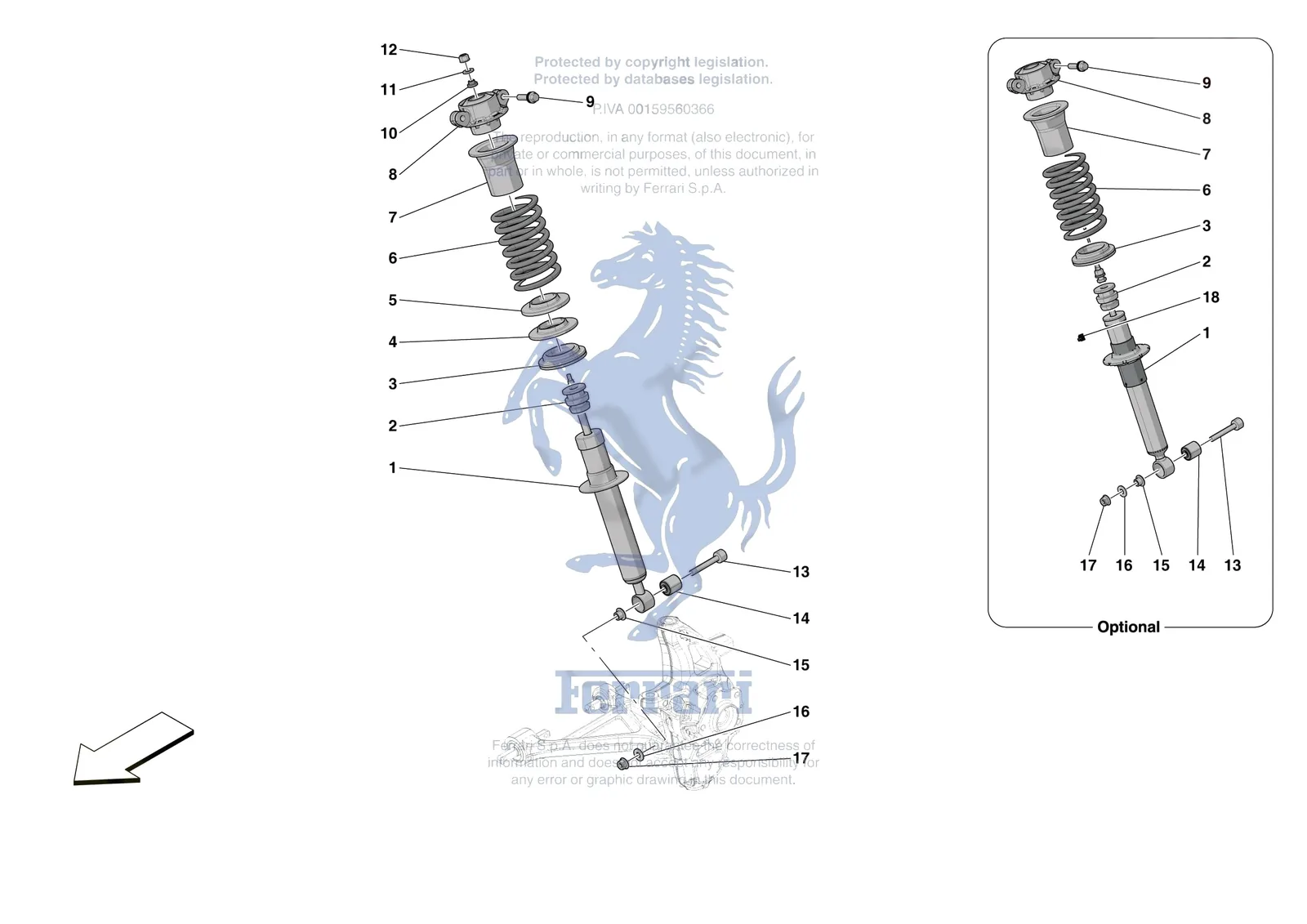

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari Portofino M, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0075.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 782188 | Ferrari Front Shock Absorber - 782188 | Superseded | Order 854341 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 1 | 333683 | Ferrari Front Shock Absorber - 333683 | $2,567.77 | Special order, ships in 7-14 days |
| 1 | 854341 | Ferrari Front Shock Absorber - 854341 | $812.51 | Special order, ships in 7-14 days |
| 2 | 267936 | Ferrari Endstop Bush - 267936 | $66.45 | Available, ships in 3-6 days |
| 2 | 321121 | Ferrari Tampone Fine Corsa Ammortiz - 321121 | $59.07 | Special order, ships in 7-14 days |
| 3 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 4 | 748379 | Ferrari Lower Spacer - 748379 | $13.11 | Special order, ships in 7-14 days |
| 5 | 748381 | Ferrari Lower Spacer - 748381 | $13.11 | Special order, ships in 7-14 days |
| 6 | 312989 | Ferrari Front Suspension Spring - 312989 | Superseded | Order 55013734 instead |
| 6 | 55013734 | Ferrari Spring - 55013734 | $238.82 | Special order, ships in 7-14 days |
| 7 | 212517 | Ferrari Dust Cover - 212517 | $18.17 | Available, ships in 3-6 days |
| 8 | 340231 | Ferrari Compl. Shock Absorber Retainer Cap - 340231 | $393.38 | Special order, ships in 7-14 days |
| 9 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 10 | 749879 | Ferrari Hyperblock Bush - 749879 | $14.99 | Special order, ships in 7-14 days |
| 11 | 749877 | Ferrari Washer - 749877 | $0.59 | Special order, ships in 7-14 days |
| 12 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 13 | 237297 | Ferrari Screw TCEI M12 x 1.25 x 8 - 237297 | $58.98 | Special order, ships in 7-14 days |
| 14 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 15 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 16 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 17 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 18 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
