Ferrari Portofino M — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0079)

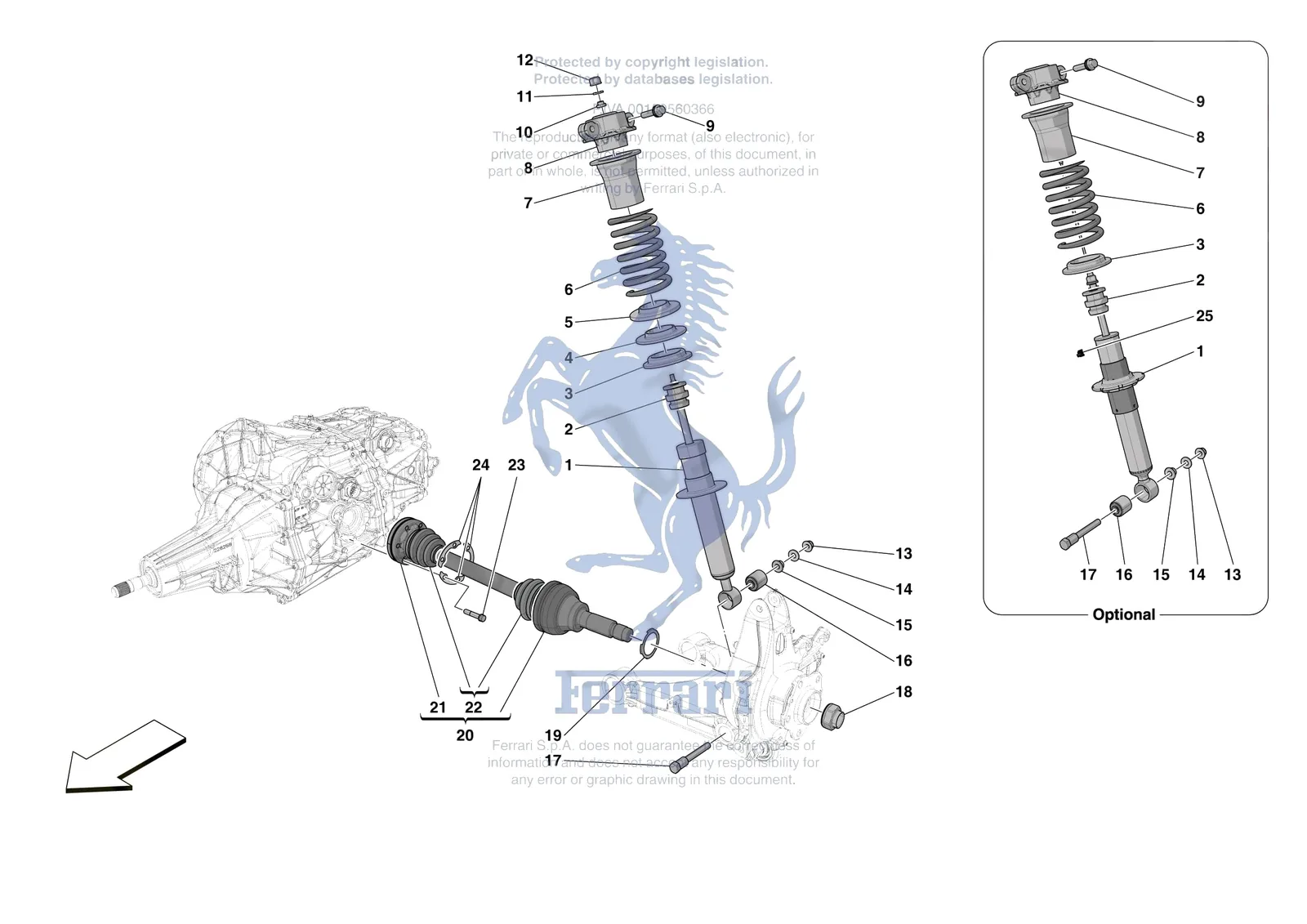

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari Portofino M, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0079.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 782190 | Ferrari Rear Shock Absorber - 782190 | Superseded | Order 854342 instead | |
| 1 | 326599 | Ferrari Rear Shock Absorber - 326599 | $2,549.00 | Special order, ships in 7-14 days |
| 1 | 854342 | Ferrari Rear Shock Absorber - 854342 | $812.51 | Special order, ships in 7-14 days |
| 2 | 267936 | Ferrari Endstop Bush - 267936 | $66.45 | Available, ships in 3-6 days |
| 2 | 321121 | Ferrari Tampone Fine Corsa Ammortiz - 321121 | $59.07 | Special order, ships in 7-14 days |
| 3 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 4 | 748379 | Ferrari Lower Spacer - 748379 | $13.11 | Special order, ships in 7-14 days |
| 5 | 748381 | Ferrari Lower Spacer - 748381 | $13.11 | Special order, ships in 7-14 days |
| 6 | 312992 | Ferrari Rear Suspension Spring - 312992 | $320.06 | Special order, ships in 7-14 days |
| 7 | 212517 | Ferrari Dust Cover - 212517 | $18.17 | Available, ships in 3-6 days |
| 8 | 340231 | Ferrari Compl. Shock Absorber Retainer Cap - 340231 | $393.38 | Special order, ships in 7-14 days |
| 9 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 10 | 749879 | Ferrari Hyperblock Bush - 749879 | $14.99 | Special order, ships in 7-14 days |
| 11 | 749877 | Ferrari Washer - 749877 | $0.59 | Special order, ships in 7-14 days |
| 12 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 13 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 14 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 15 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 16 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 17 | 246962 | Ferrari Special Screw M12 x 1.25 - 246962 | $58.98 | Special order, ships in 7-14 days |
| 18 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
| 19 | 918121 | Ferrari Special Ring Bearing for Axle Shaft - 918121 | $34.40 | Special order, ships in 7-14 days |
| 20 | 747977 | Ferrari Semiasse F164Ad150 Dct - 747977 | $1,822.04 | Special order, ships in 7-14 days |
| 21 | 70001387 | Ferrari Drive Shaft Boot Kit - 70001387 | $216.66 | Special order, ships in 7-14 days |
| 22 | 70001388 | Ferrari Drive Shaft Boot Kit - 70001388 | $217.99 | Available, ships in 3-6 days |
| 23 | 237590 | Ferrari Axle Bolt - 237590 | $5.56 | In stock |
| 24 | 220325 | Ferrari Shim Plate - 220325 | $7.40 | Special order, ships in 7-14 days |
| 25 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
