Ferrari Portofino M — [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG (diagram 0085)

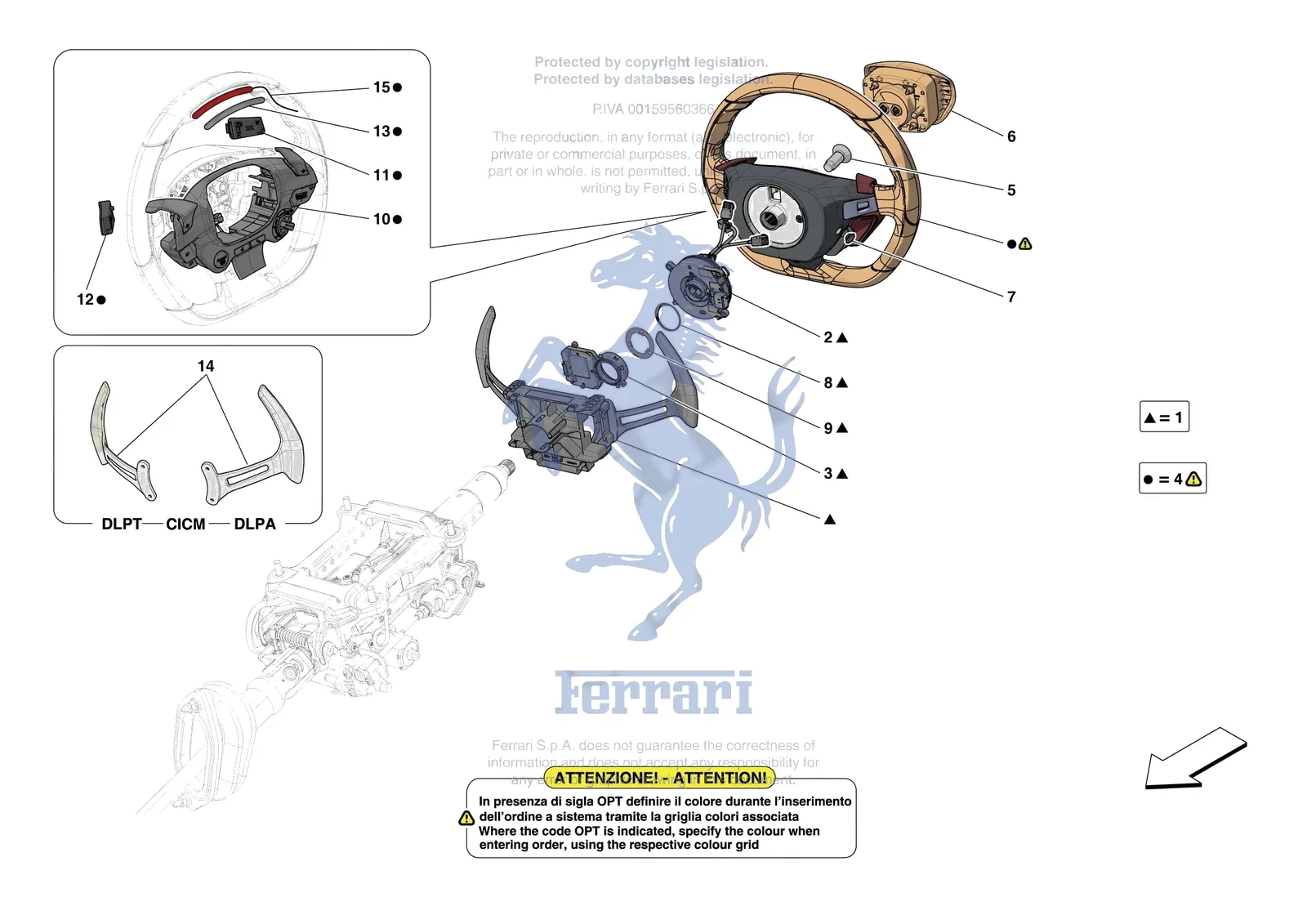

Exploded view of the [mechanical system] - d.30.02 - steering wheel and steering system - steering wheel and airbag on the Ferrari Portofino M, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0085.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 275398 | Ferrari Screw - 275398 | Superseded | Order 301723 instead | |
| 1 | 70007277 | Ferrari Off-Catalogue Shift Paddle A - 70007277 | $39,923.43 | Contact us to order |
| 1 | 327250 | Ferrari Shift Paddle Assembly - 327250 | $2,777.27 | Special order, ships in 7-14 days |
| 1 | 327251 | Ferrari Shift Paddle Assembly - 327251 | $4,552.30 | Special order, ships in 7-14 days |
| 2 | 327252 | Ferrari Clock Spring Contact - 327252 | $811.38 | Special order, ships in 7-14 days |
| 3 | 309296 | Ferrari Steering Angle Sensor - 309296 | $371.53 | Special order, ships in 7-14 days |
| 4 | 70007198 | Ferrari COMPL. STEERING WHEEL - 70007198 | Price on request | Contact us for price and availability |
| 4 | 770679 | Ferrari COMPL. STEERING WHEEL - 770679 | Price on request | Contact us for price and availability |
| 4 | 770680 | Ferrari Compl. Steering Wheel - 770680 | $31,947.86 | Contact us to order |
| 4 | 770681 | Ferrari COMPL. STEERING WHEEL - 770681 | Price on request | Contact us for price and availability |
| 4 | 770682 | Ferrari COMPL. STEERING WHEEL - 770682 | Price on request | Contact us for price and availability |
| 4 | 770683 | Ferrari Compl. Steering Wheel - 770683 | $30,674.73 | Contact us to order |
| 5 | 301723 | Ferrari Screw - 301723 | $164.72 | Special order, ships in 7-14 days |
| 7 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 8 | 828380 | Ferrari Clock Spring Connector Spring - 828380 | $3.26 | Available, ships in 3-6 days |
| 9 | 828381 | Ferrari Clock Spring Connector Lock - 828381 | $12.21 | Available, ships in 3-6 days |
| 10 | 70007191 | Ferrari Steering Wheel Node - 70007191 | $46,021.88 | Contact us to order |
| 10 | 70007200 | Ferrari STEERING WHEEL NODE - 70007200 | Price on request | Contact us for price and availability |
| 10 | 784715 | Ferrari Steering Wheel Node - 784715 | $8,036.35 | Special order, ships in 7-14 days |
| 10 | 784716 | Ferrari Steering Wheel Node - 784716 | $8,036.35 | Special order, ships in 7-14 days |
| 10 | 784717 | Ferrari Steering Wheel Node - 784717 | $10,697.92 | Contact us to order |
| 11 | 321865 | Ferrari RH Nit Thumbwheel Control - 321865 | $565.49 | Special order, ships in 7-14 days |
| 12 | 321866 | Ferrari LH Nit Thumbwheel Control - 321866 | $565.49 | Special order, ships in 7-14 days |
| 13 | 856950 | Ferrari Vetrino Barra A Led Volante - 856950 | $344.21 | Special order, ships in 7-14 days |
| 14 | 70006275 | Ferrari Cicm Off-Catalogue Shift Pad - 70006275 | $9,333.07 | Special order, ships in 7-14 days |
| 14 | 70006497 | Ferrari Off-Catalogue Carbon Shift P - 70006497 | $12,301.86 | Contact us to order |
| 15 | 331008 | Ferrari Barra Led - 331008 | $1,155.62 | Special order, ships in 7-14 days |
