Ferrari Portofino M — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari Portofino M, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

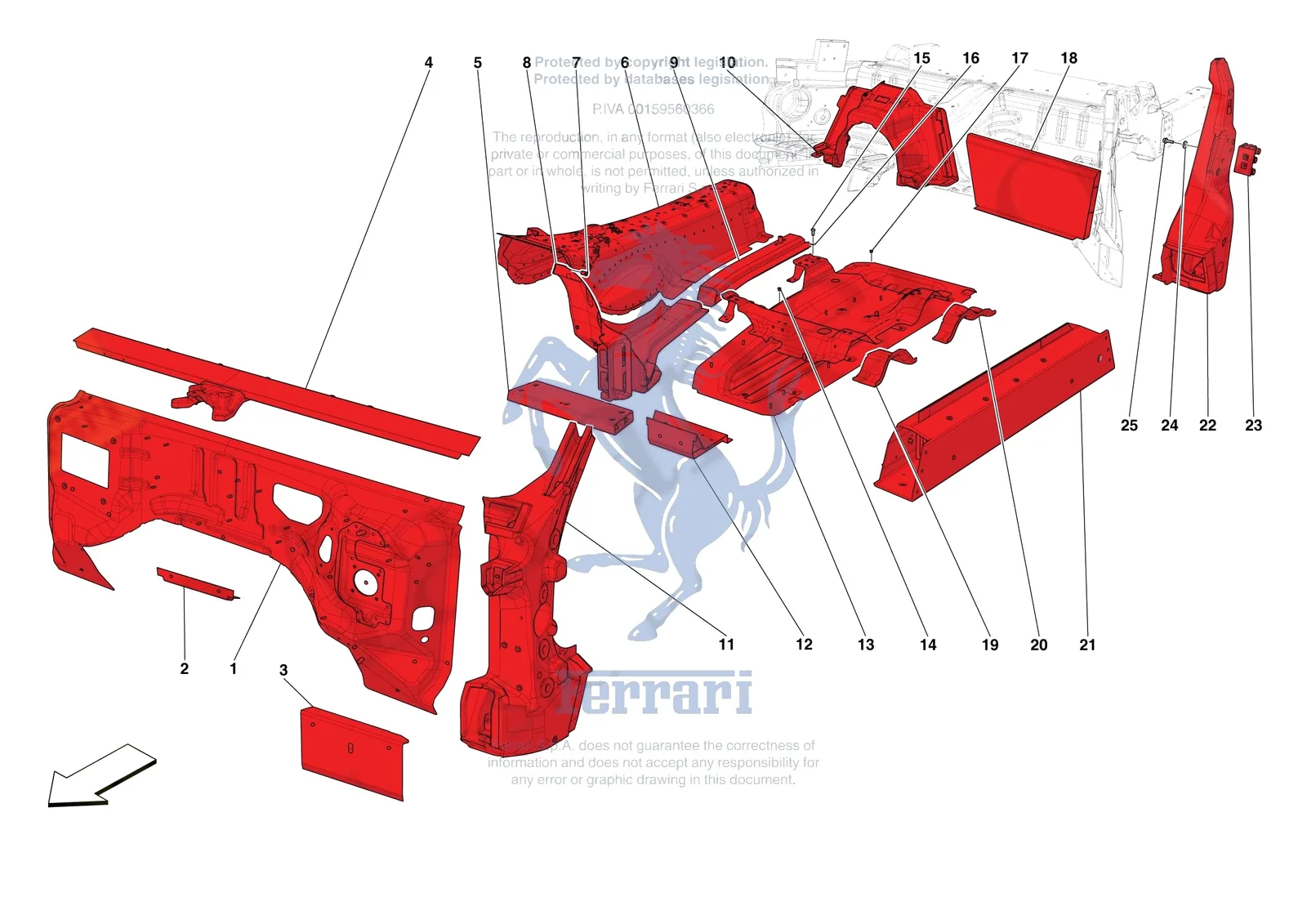

Ferrari Portofino M [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
985896452Ferrari LH Semi-Floor - 985896452SupersededOrder 985772460 instead
15624411Ferrari Rivet 6mm - 15624411$1.92Available, ships in 3-6 days
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1985804462Ferrari Compl. Firewall - 985804462$5,067.56Contact us to order
1985927848Ferrari Parafiamma Cpl. Catafor - 985927848$3,442.46Special order, ships in 7-14 days
2985321969Ferrari Upper Centre Tunnel Extruded - 985321969$664.78Special order, ships in 7-14 days
3985337356Ferrari LH A-Pillar Extrusion - 985337356$837.14Special order, ships in 7-14 days
3985339596Ferrari RH A-Pillar Extrusion - 985339596$886.38Special order, ships in 7-14 days
4985337796Ferrari Valence Panel - 985337796$3,372.11Special order, ships in 7-14 days
5335352Ferrari Traversa Supp.Campana Frizio - 335352$787.90Special order, ships in 7-14 days
6985773728Ferrari Compl. Tunnel - 985773728$6,826.31Special order, ships in 7-14 days
6985926417Ferrari Tunnel Cpl. Gdx Catafor - 985926417$6,734.86Special order, ships in 7-14 days
7248146Ferrari Rivet M6 x 16mm - 248146$1.97Available, ships in 3-6 days
8985333738Ferrari Compl. LH Front Tunnel Casti - 985333738$6,943.55Special order, ships in 7-14 days
8985806128Ferrari Compl. LH Front Tunnel Casti - 985806128$8,941.51Special order, ships in 7-14 days
8985333739Ferrari Compl. RH Front Tunnel Casti - 985333739$7,044.39Special order, ships in 7-14 days
8985803907Ferrari Compl. RH Front Tunnel Casti - 985803907$9,553.56Special order, ships in 7-14 days
9985335193Ferrari Compl. LH Lower Tunnel Beam - 985335193$1,600.44Special order, ships in 7-14 days
9985335218Ferrari Compl. RH Lower Tunnel Beam - 985335218$1,501.96Special order, ships in 7-14 days
10985334170Ferrari Compl. Rear Tunnel Casting - 985334170$5,303.98Special order, ships in 7-14 days
10985803904Ferrari Compl. Rear Tunnel Casting - 985803904$6,943.55Special order, ships in 7-14 days
11985748050Ferrari Compl. LH A Pillar Casting - 985748050$24,952.14Contact us to order
11985803897Ferrari Compl. LH A Pillar Casting - 985803897$26,992.19Contact us to order
11985748056Ferrari Compl. RH A Pillar Casting - 985748056$24,952.14Contact us to order
11985803917Ferrari Compl. RH A Pillar Casting - 985803917$26,992.19Contact us to order
12985340712Ferrari Compl. LH Front Floor Cross - 985340712$886.38Special order, ships in 7-14 days
12985806342Ferrari Compl. LH Front Floor Cross - 985806342$1,378.85Special order, ships in 7-14 days
12985339817Ferrari Compl. RH Front Floor Cross - 985339817$886.38Special order, ships in 7-14 days
12985803915Ferrari Compl. RH Front Floor Cross - 985803915$1,428.09Special order, ships in 7-14 days
13955025501Ferrari LH Semi-Floor - 955025501SupersededOrder 985772460 instead
13985772460Ferrari LH Semi-Floor - 985772460$3,517.50Contact us to order
13985337797Ferrari RH Semi-Floor - 985337797$3,271.28Contact us to order
1584260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
17286894Ferrari Rivet - 286894$0.59Special order, ships in 7-14 days
18985337788Ferrari Compl. LH Rear Floor Cross M - 985337788$1,157.24Special order, ships in 7-14 days
18985337789Ferrari Compl. RH Rear Floor Cross M - 985337789$1,157.24Special order, ships in 7-14 days
19985339312Ferrari LH Front Sill Reinforcement - 985339312$566.30Special order, ships in 7-14 days
19985339313Ferrari RH Front Sill Reinforcement - 985339313$566.30Special order, ships in 7-14 days
20985338947Ferrari LH Rear Sill Reinforcement - 985338947$566.30Special order, ships in 7-14 days
20985944938Ferrari LH Rear Sill Reinforcement - 985944938SupersededOrder 985338947 instead
20985338948Ferrari RH Rear Sill Reinforcement - 985338948$566.30Special order, ships in 7-14 days
21985337348Ferrari LH Sill - 985337348$4,291.34Special order, ships in 7-14 days
21985337349Ferrari RH Sill - 985337349$4,394.53Special order, ships in 7-14 days
22985337802Ferrari Compl. LH Pillar Casting - 985337802$6,535.52Special order, ships in 7-14 days
22985337803Ferrari Compl. RH Pillar Casting - 985337803$6,535.52Special order, ships in 7-14 days
23985332911Ferrari Compl. LH Striker Reinforcem - 985332911$1,255.72Special order, ships in 7-14 days
23985332918Ferrari Compl. RH Striker Reinforcem - 985332918$1,255.72Special order, ships in 7-14 days
24219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
2516287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days

All Portofino M diagrams
