Ferrari Portofino M — [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE (diagram 0102)

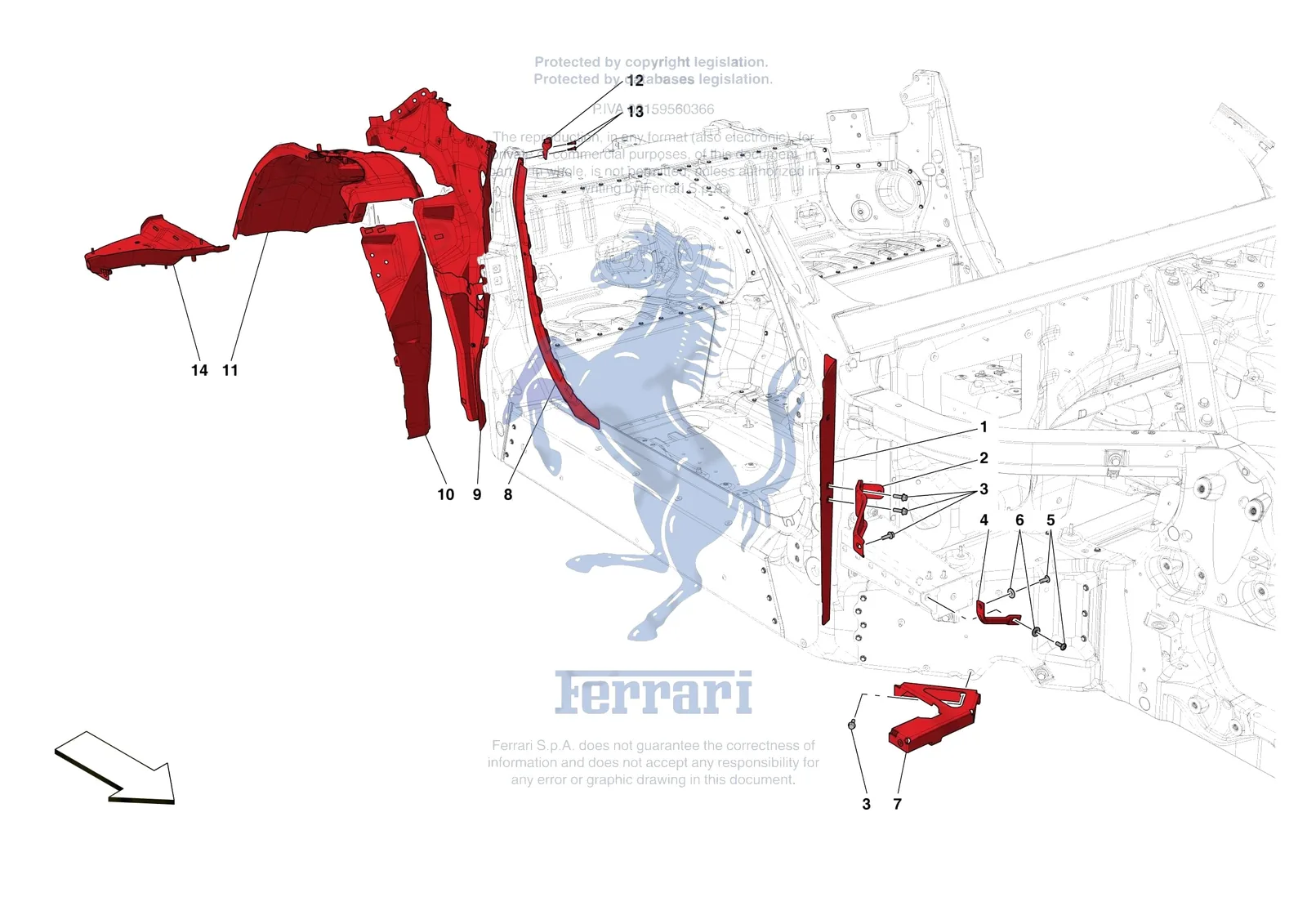

Exploded view of the [vehicle trim] - e.6 - lateral substructure on the Ferrari Portofino M, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0102.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 88746900 | Ferrari RH Fender to Door Jamb Fastener Bracket - 88746900 | $70.96 | Special order, ships in 7-14 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 88849211 | Ferrari Compl. LH Flank Mounting Bra - 88849211 | $270.83 | Special order, ships in 7-14 days |
| 1 | 88849311 | Ferrari Compl. RH Flank Mounting Bra - 88849311 | $270.83 | Special order, ships in 7-14 days |
| 2 | 88747011 | Ferrari LH Fender-Door Jamb Fastener - 88747011 | $162.48 | Special order, ships in 7-14 days |
| 2 | 88746911 | Ferrari RH Fender-Door Jamb Fastener - 88746911 | Superseded | Order 88746900 instead |
| 3 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 4 | 88746711 | Ferrari Front Mounting Trellis For F - 88746711 | $152.62 | Special order, ships in 7-14 days |
| 4 | 88746811 | Ferrari Front Mounting Trellis For F - 88746811 | $152.62 | Special order, ships in 7-14 days |
| 5 | 269959 | Ferrari Screw - 269959 | $1.61 | In stock |
| 6 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 7 | 88745011 | Ferrari Compl. Lower Mount For LH Fr - 88745011 | $418.56 | Special order, ships in 7-14 days |
| 7 | 88744911 | Ferrari Compl. Lower Mount For RH Fr - 88744911 | $418.56 | Special order, ships in 7-14 days |
| 8 | 88747311 | Ferrari LH B-Pillar Inner Truss - 88747311 | $517.04 | Special order, ships in 7-14 days |
| 8 | 88747411 | Ferrari RH B-Pillar Inner Truss - 88747411 | $517.04 | Special order, ships in 7-14 days |
| 9 | 88745411 | Ferrari Compl. LH Rear Window Lifter - 88745411 | $1,255.72 | Special order, ships in 7-14 days |
| 9 | 88745311 | Ferrari Compl. RH Rear Window Lifter - 88745311 | $1,255.72 | Special order, ships in 7-14 days |
| 10 | 88741411 | Ferrari LH Front Part Of Inner Rear - 88741411 | $369.30 | Special order, ships in 7-14 days |
| 10 | 88741511 | Ferrari RH Front Part Of Inner Rear - 88741511 | $369.30 | Special order, ships in 7-14 days |
| 11 | 88741911 | Ferrari Compl. LH Inner Rear WheeLHo - 88741911 | $1,157.24 | Special order, ships in 7-14 days |
| 11 | 88741711 | Ferrari Compl. RH Inner Rear WheeLHo - 88741711 | $1,255.72 | Special order, ships in 7-14 days |
| 12 | 985763341 | Ferrari Compl. LH Substructure Faste - 985763341 | $167.40 | Special order, ships in 7-14 days |
| 12 | 985763342 | Ferrari Compl. RH Substructure Faste - 985763342 | $167.40 | Special order, ships in 7-14 days |
| 13 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
| 14 | 88746311 | Ferrari Compl. LH Lateral Closure Pa - 88746311 | $566.30 | Special order, ships in 7-14 days |
| 14 | 88746211 | Ferrari Compl. RH Lateral Closure Pa - 88746211 | $566.30 | Special order, ships in 7-14 days |
