Ferrari Portofino M — [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE (diagram 0105)

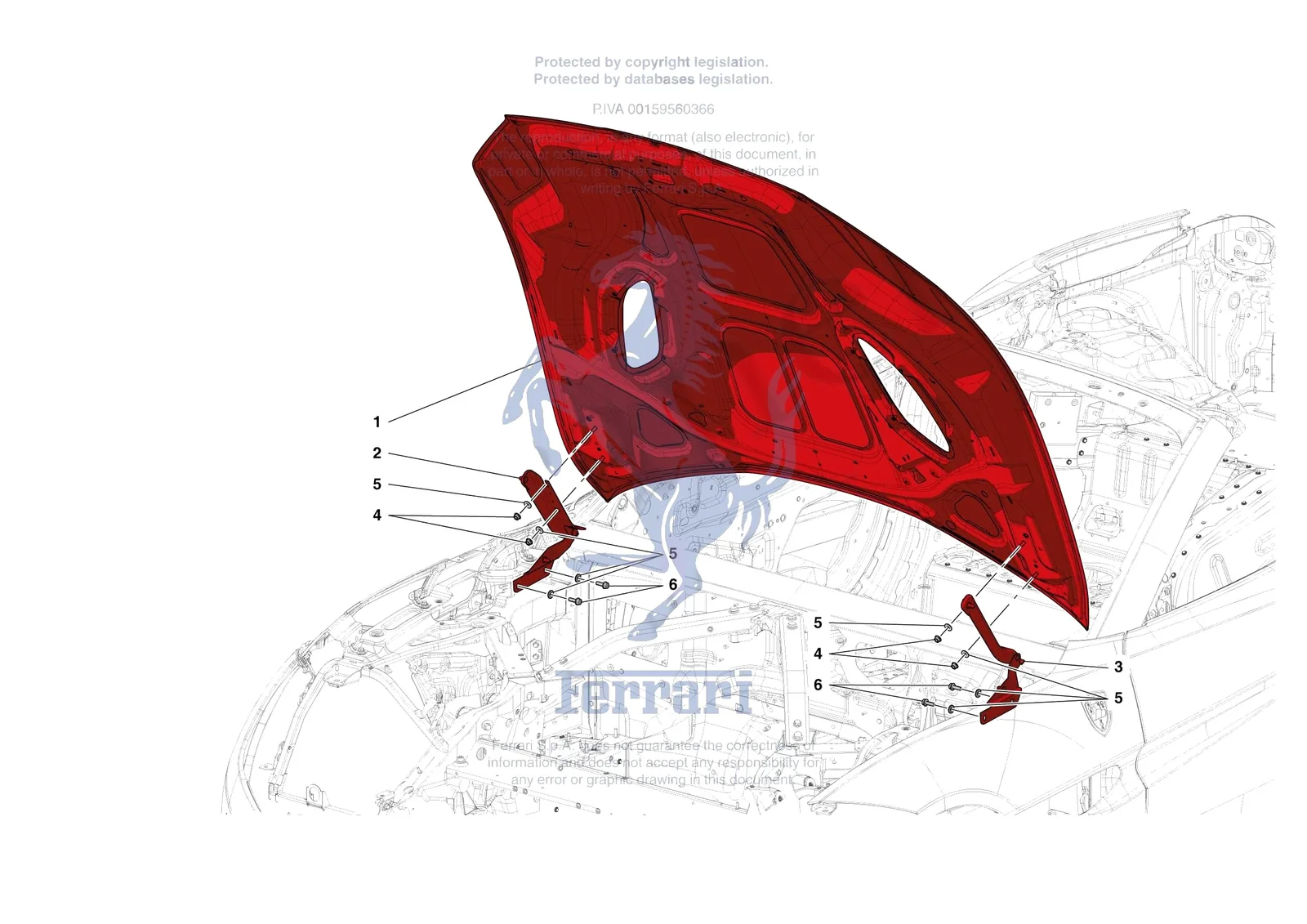

Exploded view of the [vehicle trim] - e.9 - front lid substructure on the Ferrari Portofino M, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 88698411 | Ferrari Compl. Lid Skin And Substruc - 88698411 | $9,373.78 | Special order, ships in 7-14 days |
| 2 | 69994300 | Ferrari RH Hinge - 69994300 | $132.94 | Available, ships in 3-6 days |
| 3 | 69994200 | Ferrari LH Hinge - 69994200 | $132.94 | Available, ships in 3-6 days |
| 4 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 5 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 6 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
