Ferrari Portofino M — [VEHICLE TRIM] - E.13.03 - ROOF - STRUCTURE (diagram 0111)

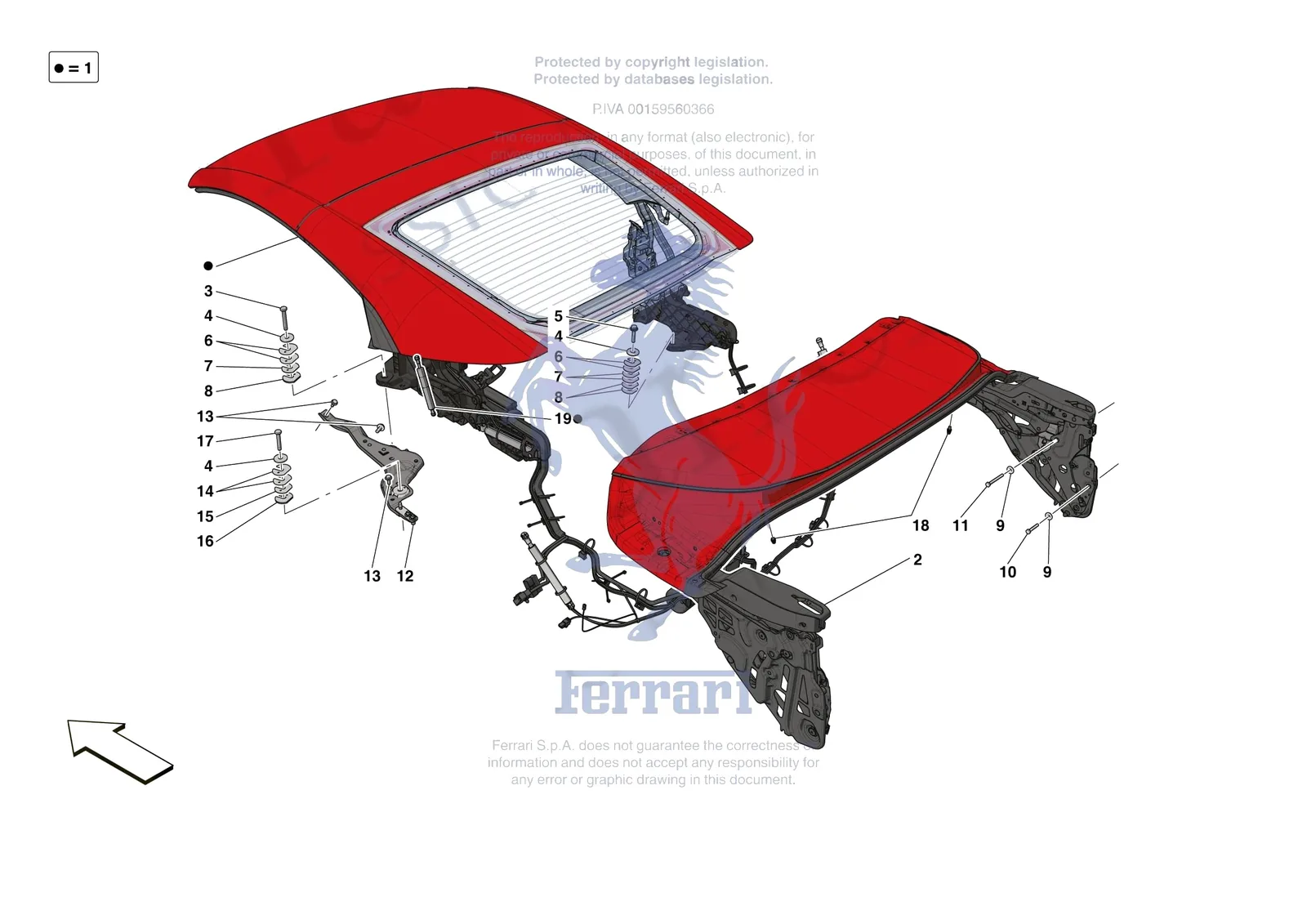

Exploded view of the [vehicle trim] - e.13.03 - roof - structure on the Ferrari Portofino M, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.13.03 - ROOF - STRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0111.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15888824 | Ferrari Bolt - 15888824 | Superseded | Order 15888821 instead | |
| 15213924 | Ferrari Screw - 15213924 | Superseded | Order 16044724 instead | |
| 16237074 | Ferrari Screw - 16237074 | Superseded | Order 16237374 instead | |
| 16237174 | Ferrari Screw - 16237174 | Superseded | Order 16237374 instead | |
| 12644301 | Ferrari Washer - 12644301 | $1.36 | Available, ships in 3-6 days | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 876814 | Ferrari ROOF ASSEMBLY - 876814 | Price on request | Contact us to order |
| 3 | 263394 | Ferrari Screw 10 x 1.25 x 60 - 263394 | $1.86 | Special order, ships in 7-14 days |
| 4 | 12644364 | Ferrari Washer D.10.20-35x - 12644364 | $1.53 | Available, ships in 3-6 days |
| 5 | 277723 | Ferrari Screw 10x55 - 277723 | $12.21 | Special order, ships in 7-14 days |
| 6 | 86090900 | Ferrari Roof Spacer 0.5mm - 86090900 | $5.04 | Special order, ships in 7-14 days |
| 7 | 86091000 | Ferrari Roof Spacer 1mm - 86091000 | $5.04 | Special order, ships in 7-14 days |
| 8 | 86091100 | Ferrari Roof Spacer 2mm - 86091100 | $5.04 | Special order, ships in 7-14 days |
| 9 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 10 | 16044224 | Ferrari Screw M8 x 50mm TE - 16044224 | $0.79 | Available, ships in 3-6 days |
| 11 | 16044724 | Ferrari Screw - 16044724 | $6.32 | Special order, ships in 7-14 days |
| 12 | 763562 | Ferrari COMPL. LH MOUNTING BRACKET - 763562 | $738.64 | Special order, ships in 7-14 days |
| 12 | 763595 | Ferrari COMPL. RH MOUNTING BRACKET - 763595 | $738.64 | Special order, ships in 7-14 days |
| 13 | 11640521 | Ferrari Screw - 11640521 | $2.59 | Available, ships in 3-6 days |
| 14 | 771606 | Ferrari Distanziale Capote D.40XSp. - 771606 | $5.65 | Special order, ships in 7-14 days |
| 15 | 771607 | Ferrari Distanziale Capote D.40XSp1 - 771607 | $5.65 | Special order, ships in 7-14 days |
| 16 | 771608 | Ferrari Distanziale Capote D.40XSp. - 771608 | $5.65 | Special order, ships in 7-14 days |
| 17 | 15888821 | Ferrari Bolt - 15888821 | $8.53 | Available, ships in 3-6 days |
| 17 | 16237374 | Ferrari Screw 10x1.25x70 - 16237374 | Superseded | Order 15888821 instead |
| 18 | 897488 | Ferrari Bumper Kit - 897488 | $108.31 | Special order, ships in 7-14 days |
| 19 | 70008251 | Ferrari Gas Strut - 70008251 | $284.51 | Special order, ships in 7-14 days |
