Ferrari Portofino M — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0117)

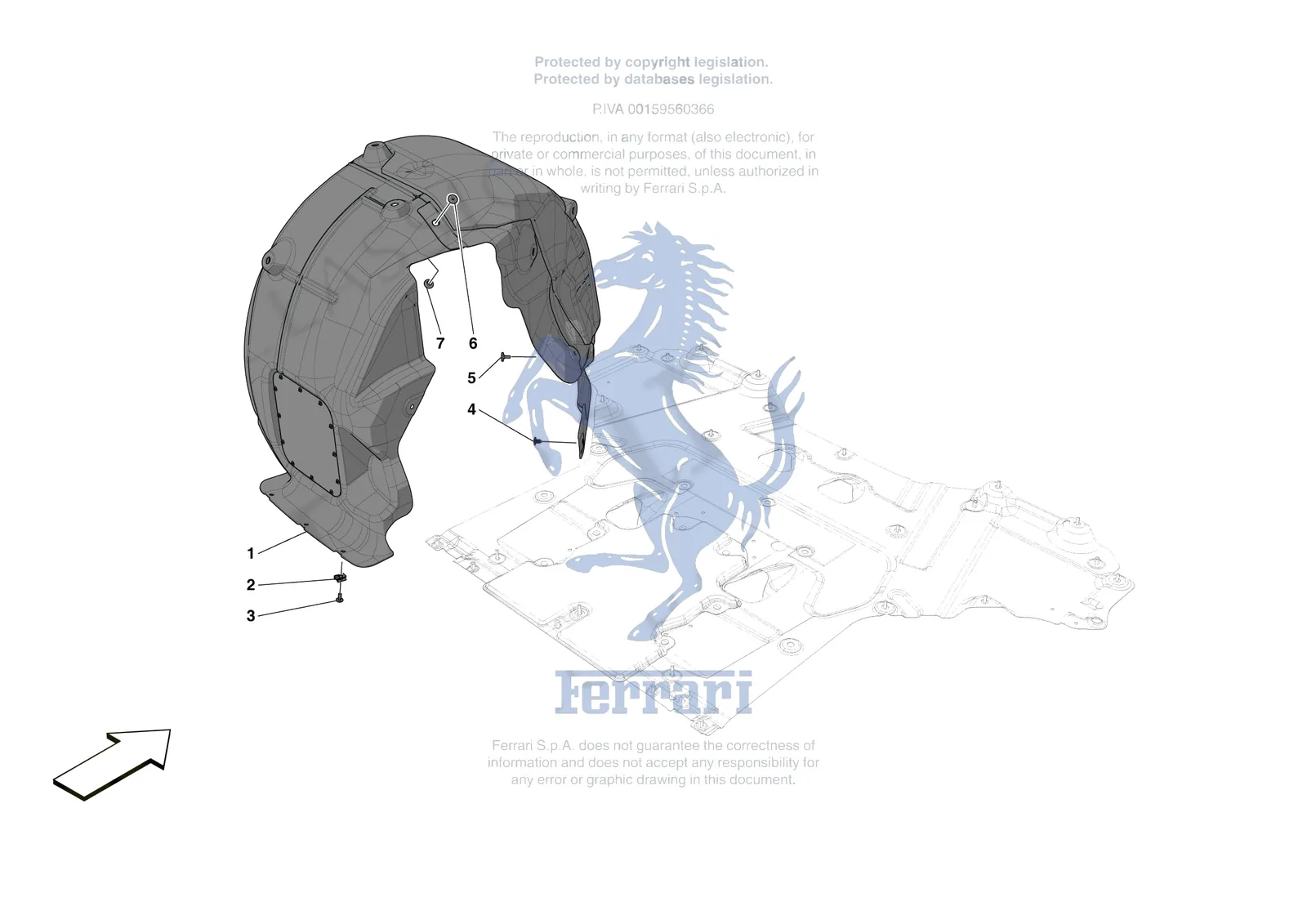

Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari Portofino M, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0117.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 794759 | Ferrari LH Rear WheeLHouse - 794759 | $500.40 | Special order, ships in 7-14 days | |
| 794757 | Ferrari Rear Left Wheel Arch - 794757 | $456.90 | Special order, ships in 7-14 days | |
| 814835 | Ferrari RH Rear WheeLHouse - 814835 | $500.40 | Special order, ships in 7-14 days | |
| 1 | 767132 | Ferrari LH Rear WheeLHouse - 767132 | $459.60 | Special order, ships in 7-14 days |
| 1 | 763937 | Ferrari Rear Left Wheel Arch - 763937 | $459.60 | Special order, ships in 7-14 days |
| 1 | 763938 | Ferrari RH Rear Wheelhouse - 763938 | $459.60 | Available, ships in 3-6 days |
| 1 | 767151 | Ferrari RH Rear WheeLHouse - 767151 | $459.60 | Special order, ships in 7-14 days |
| 2 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
| 3 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 4 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 5 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 6 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 7 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
